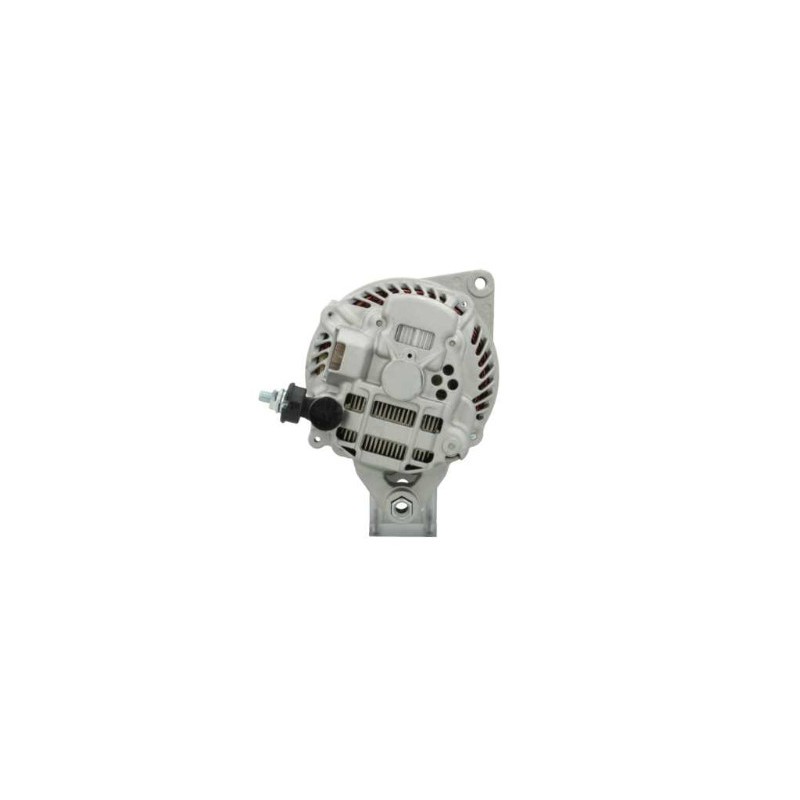

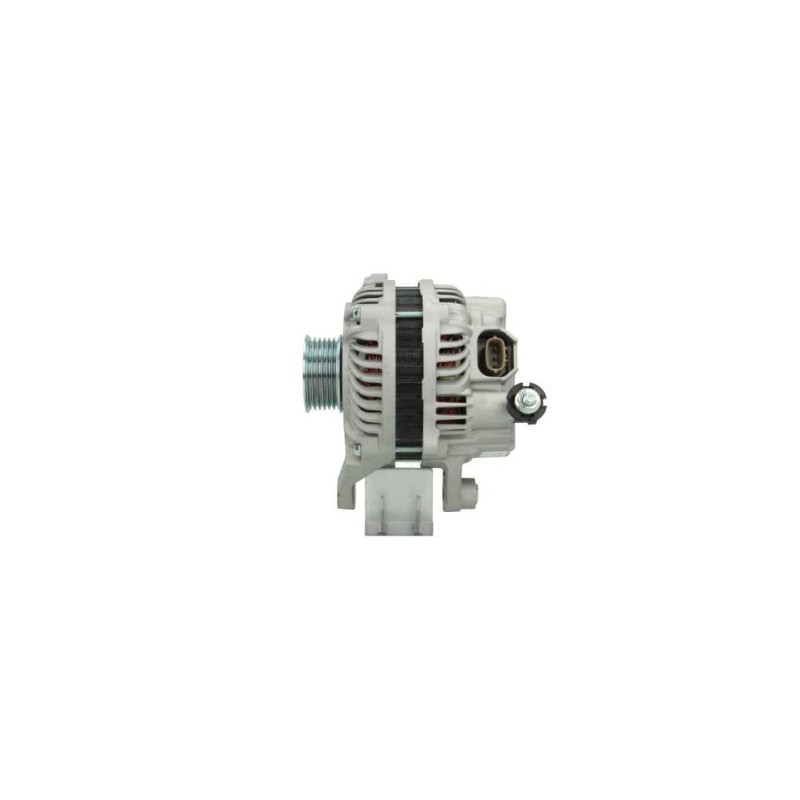

Alternator replacing A002TG1391 / A2TG1391 / A2TG1391ZD / ZJ38-18-300
Alternator NEW replacing MITSUBISHI A002TG1391 / A2TG1391 / A2TG1391ZD / MAZDA ZJ38-18-300
0986082430 / DRA0639 / LRA03482 / KTR291114180 / TNA057
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M10-1.25 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | M10 |
| C | Mount. bracket dist | 66.00 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 37.30 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

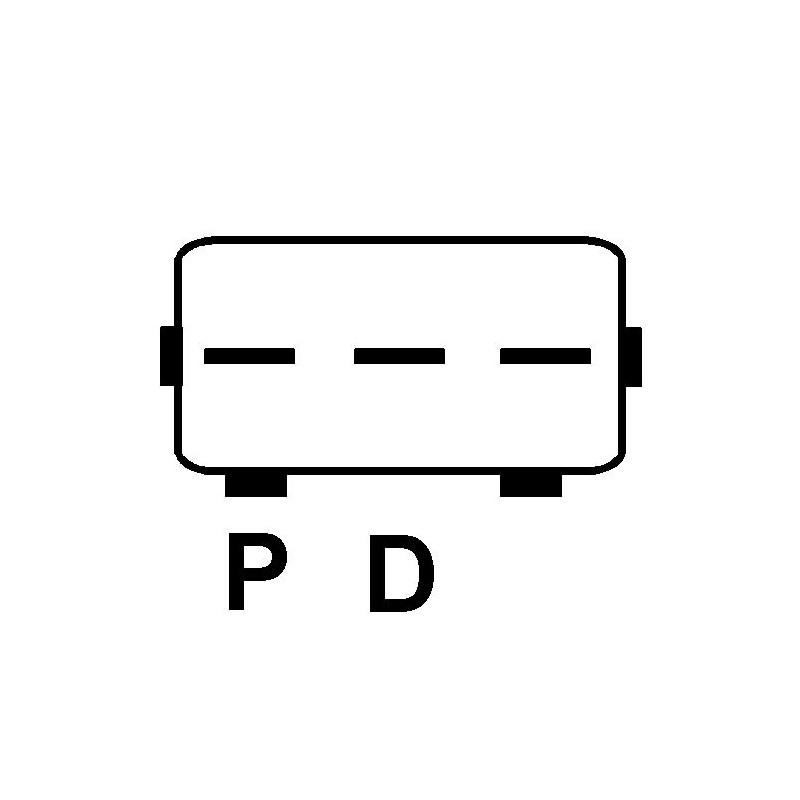

| o | Plug no. 1 | PL139 |
Replacing | |
|---|---|
| A002TG1391 | MITSUBISHI |
| a2tg1391 | MITSUBISHI |
| A2TG1391ZD | MITSUBISHI |
| ca2042 | HC-PARTS |
| ZJ38-18-300 | MAZDA |
| 0986082430 |
| 145557090 |
| 276592 |
| 6493SP |
| 930639 |
| A002TG1391 |
| A2TG1391 |
| ALT5195sa |
| CA2042IR |
| DRA0639 |
| HCA2042IR |
| KTR291114180 |
| LRA03482 |
| TNA057 |
| ZJ3818300 |
generic brand
Mounted on :
MAZDA
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 1.3 | Unleaded | 2007 10 | - | ZJ-VE | 55 | 75 | Hayon | 1349 | ||
| 2 | 1.5 | Unleaded | 2007 10 | - | ZY-VE | 76 | 103 | Hayon | 1498 | ||
| 2 | 1.3 | Unleaded | 2007 10 | - | ZJ-VE | 63 | 86 | Hayon | 1349 | ||
| 2 | 1.5 | Unleaded | 2011 06 | - | ZY05 | 75 | 102 | Hayon | MZR | 1498 | |
| 2 | 1.5 | Unleaded | 2007 10 | - | ZY-DE | 76 | 103 | Hayon | 1498 | ||
| 2 | 1.5 | Unleaded | 2011 06 | - | ZY66 | 75 | 102 | Hayon | MZR | 1498 | |
| 2 | 1.3 | Unleaded | 2010 01 | - | ZJ-VE | 62 | 84 | Hayon | MZR | 1349 | |
| 2 | 1.3 | Électrique/essence | 2011 05 | 2014 11 | ZJ46 | VTi | 55 | 75 | Hayon | BiFuel | 1349 |
| 2 | 1.3 | Électrique/essence | 2011 05 | 2014 11 | ZJ46 | 62 | 84 | Hayon | BiFuel | 1349 | |
| 3 | 1.6 | Unleaded | 2009 06 | - | Z6 | MZR | 77 | 105 | Hayon | 1598 |
