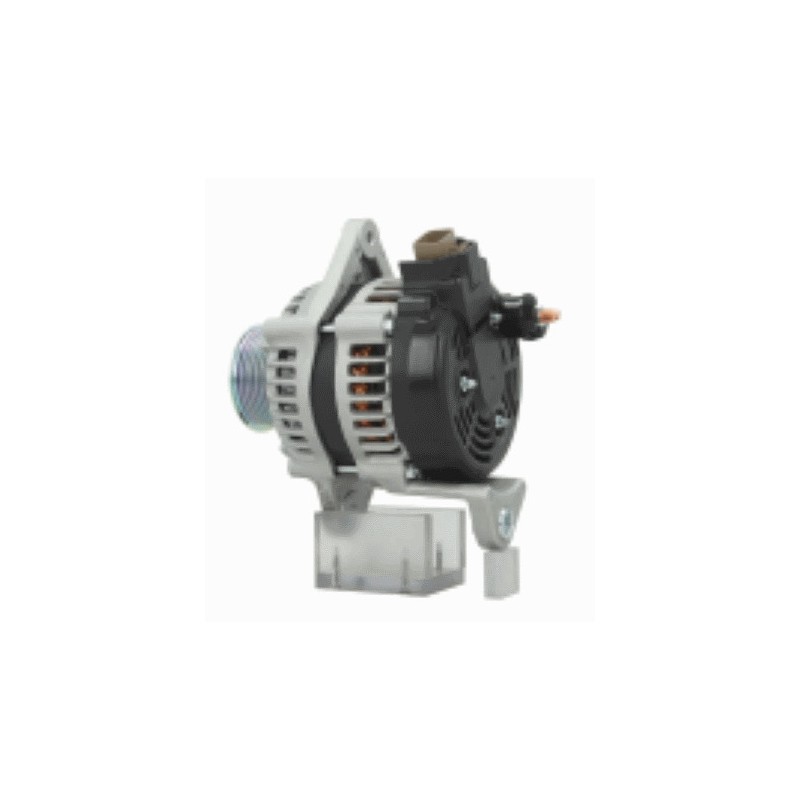

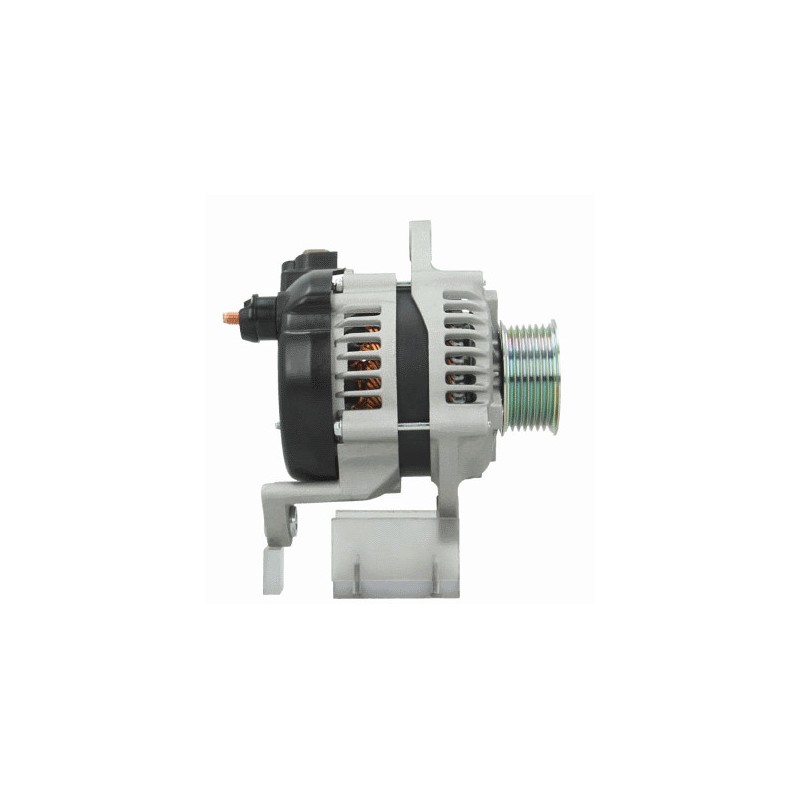

Alternator replacing 104210-9841 / 104210-9960 / 8981530040
Alternator replacing :
DENSO 104210-9841 / 104210-9960 / DAN1487
ISUZU 8981530040 / 8982903230
DRA1569 / KTR271146180 / LRA03597
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 80 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 80.00 |
| H | Pulley dia. | 62.50 |
| A | Pulley dist. | 43.00 |
| i | Grooves/pulley | 7 |
| j | Radius | 80.50 |
| j | Radius 2 | 80.50 |
| k | Position B + | M8 |
| n | Rotation | CW |

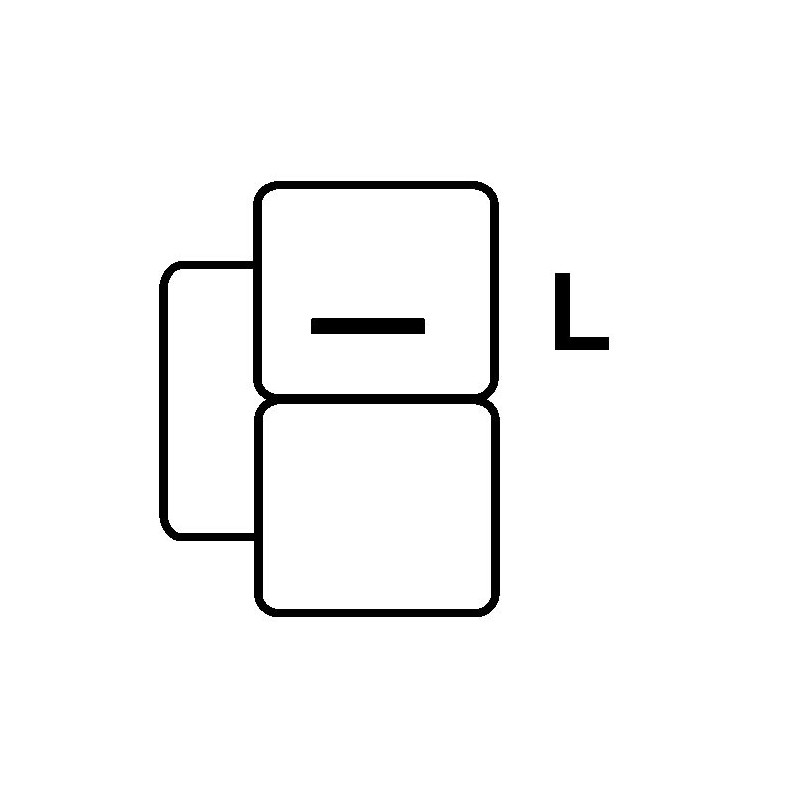

| o | Plug no. 1 | PL100 |
| R | Total length mm | 185.00 |
generic brand
replacing :
| 1042109030 | DENSO |
| 1042109031 | DENSO |
| 1042109032 | DENSO |
| 1042109841 | DENSO |
| 1042109960 | DENSO |
| 135573090 | PSH |
| 286707 | Elstock |
| 57510 | EAI |
| 8973697160 | ISUZU |
| 8973697161 | ISUZU |
| 8981530040 | ISUZU |
| 8982903230 | ISUZU |
| ALT6136sa | Electrolog |
| DAN1487 | DENSO |
| DRA1569 | DELCO REMY |
| KTR271146180 | KTR |
| LRA03597 | LUCAS |
fits:
| ISUZU | D-Max | 3.0 DiTD (4x4) | |
| ISUZU | D-Max | 2.5D (4x4) |
