Alternator replacing LUCAS / MAGNETON / MOTOROLA
Alternator replacing LUCAS LEA0038 / 54022663 / 54022646
€119.00
Alternator replacing A13N241 / A13N133 / A13N178 / A13N232 / A13N241 / A13N289
W111321

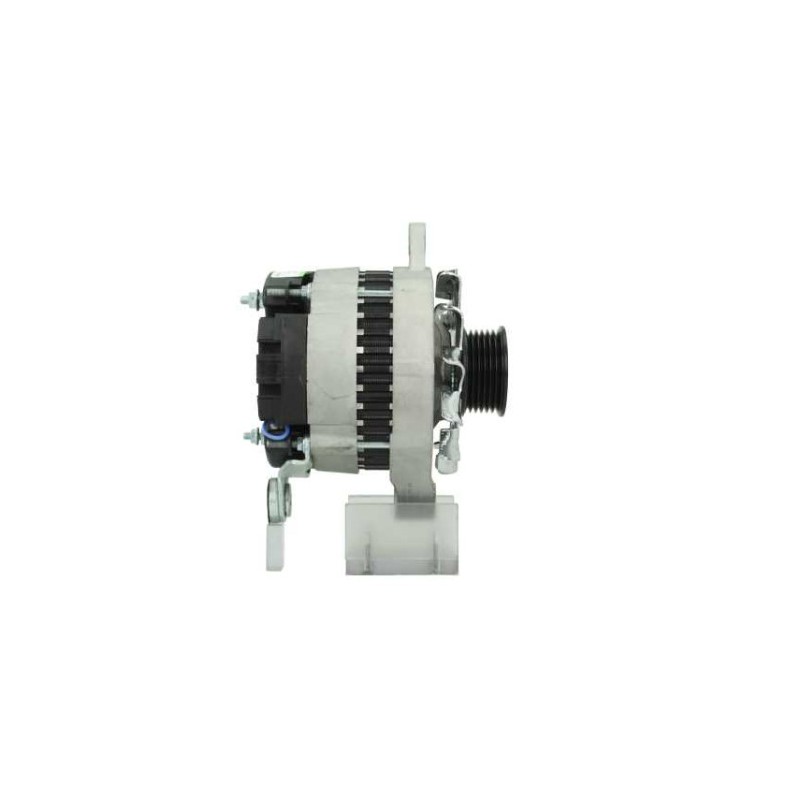

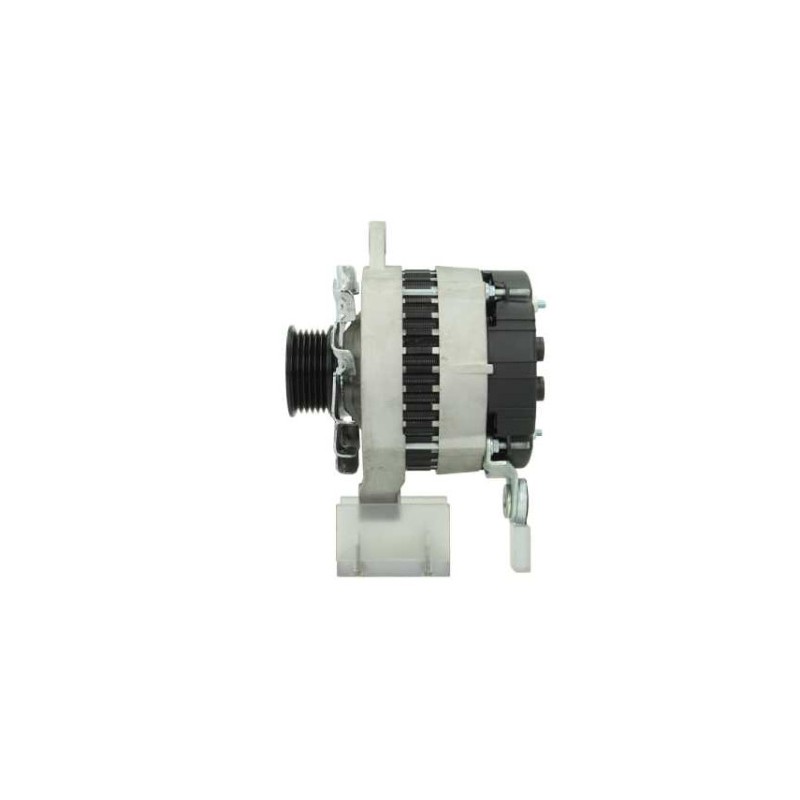

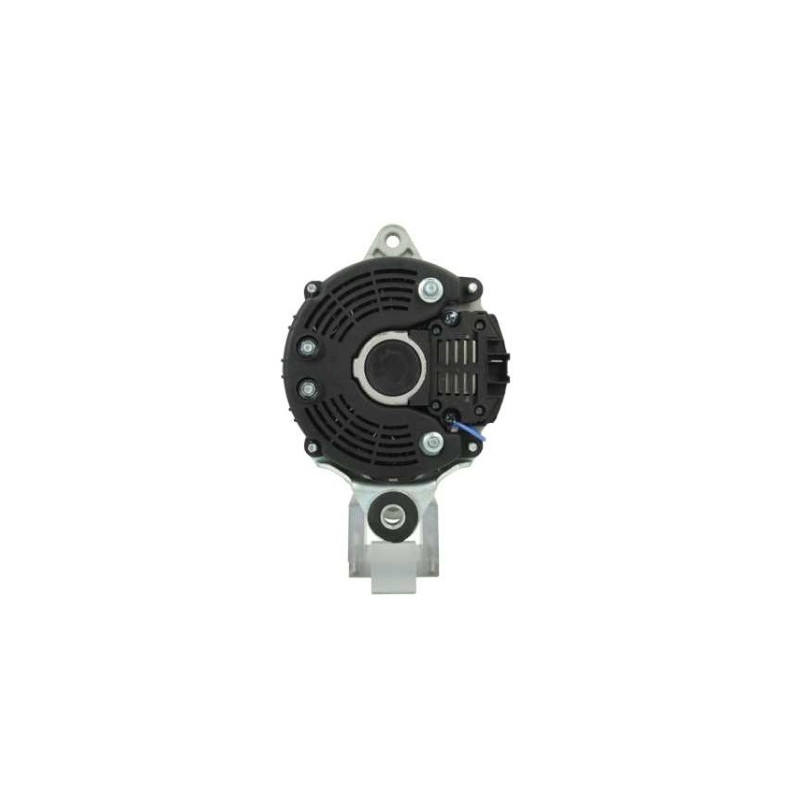

Alternator NEW replacing :
VALEO A13N241 / A13N133 / A13N178 / A13N232 / A13N241 / A13N289
VOLVO 3417313 / 3417318 / 3460600 / 34656959 / 9031146 / 90311465 / 9031311 / 90313115 / 9031317
NO CORE EXCHANGE NEEDED
Features
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 27.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 69.50 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 46.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 84.00 |
| j | Radius 2 | 85.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

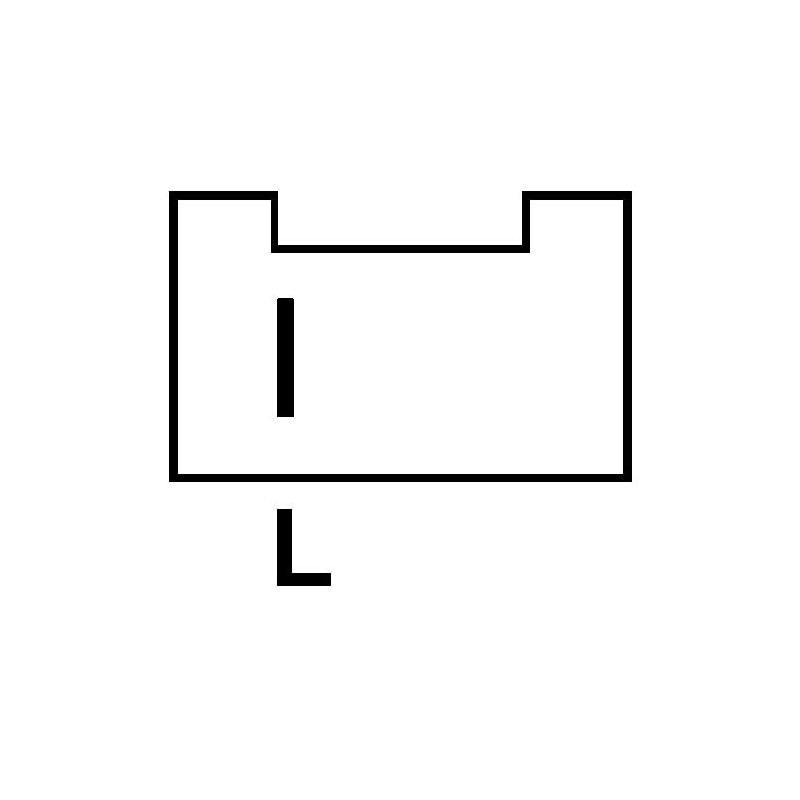

| o | Plug no. 1 | PL26 |
| R | Total length mm | 166.00 |
Replacing | |
|---|---|
| 0120489491 | BOSCH |
| 11.201.523 | ISKRA |
| 2541173 | VALEO |
| 2541445 | VALEO |
| 2541490 | VALEO |
| 2541807 | VALEO |
| 9031146 | VOLVO |
| a13n133 | VALEO |
| a13n178 | VALEO |
| a13n232 | VALEO |
| a13n241 | VALEO |
| a13n289 | VALEO |
| aak3583 | ISKRA |
| ca574ir | HC-PARTS |
BOSCH 0120488142
MAGNETI MARELLI 944390368800
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
