Information:

Voltage 14

Amp 30

D =Bracket hole 8.00

G =Belt. adj. bracket hole M8

B =Width/holder arm 13.00

E =Belt. adj. brackethole pos. 60

C =Mount. bracket dist 67.00

H =Pulley dia. 70.00

A =Pulley dist. 43.00

Grooves/pulley 1

J1 =Radius 77.75

J2 =Radius 76.50

Position B + M6

Rotation Cr

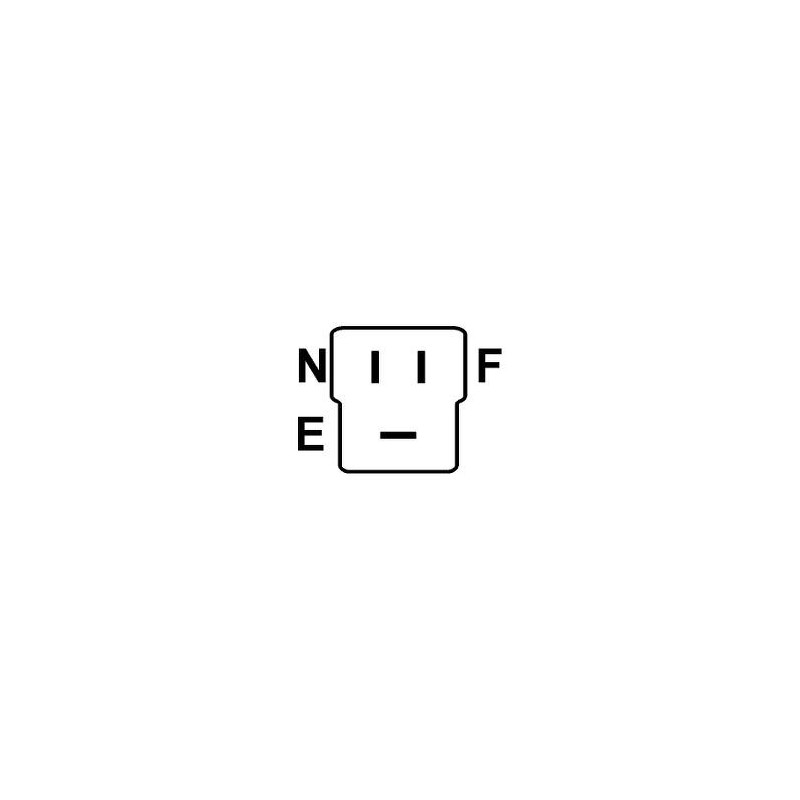

Plug no. 1 PL15

Fan Ef

Pulley Pulley

Remarks Regulator under the reference w130627.

R =Total length mm 147.00

= BOSCH 0986032391 / 0986032381090 / 0986032401090 / 0986032381 / 0986035491 / 0986035491090

0986035071 / 0986032401

= DENSO 021000-0081 - 021000-0124 - 021000-0160 - 021000-0249 - 021000-0250 - 021000-0296 - 021000-0457 - 021000-0459 - 021000-0503 - 021000-0549 - 021000-0812 - 021000-0813 - 021000-0814 - 021000-1241 - 021000-1242 - 021000-1330 - 021000-1602 - 021000-1970 - 021000-2490 - 021000-2500 - 021000-2960 - 021000-2990 - 021000-2991 - 021000-3061 - 021000-3641 - 021000-3721 - 021000-3760 - 021000-3780 - 021000-4570 - 021000-4590 - 021000-5030 - 021000-5046 - 021000-5240 - 021000-5490 - 021000-5600 - 021000-5950 - 021000-5960 - 021000-6510 - 021000-7920 - 021000-7932 - 021000-7940 - 021000-8210 - 021000-9510 - 021000-9560 - 210000081 - 210000124 - 210000160 - 210000249 - 210000250 - 210000296 - 210000457 - 210000459 - 210000503 - 210000549 - 210000812 - 210000813 - 210000814 - 210001241 - 210001242 - 210001330 - 210001602 - 210001970 - 210002490 - 210002500 - 210002960 - 210002990 - 210002991 - 210003061 - 210003641 - 210003721 - 210003760 - 210003780 - 210004570 - 210004590 - 210005030 - 210005046 - 210005240 - 210005490 - 210005600 - 210005950 - 210005960 - 210006510 - 210007920 - 210007932 - 210007940 - 210008021 - 210008210 - 210009510 - 210009560

= DAIHATSU 27020-22011-000 / 27020-31051-000 / 27020-87102-000 / 27020-87103-000 / 27020-87209-000

= DELCO REMY DRA3461 / DRA3461 / DRA2401 / DRA4311 / DRA2381

= ISUZU 5812001631 / 5812001641

= LUCAS LRA158 / LRA142

= LOMBARDINI SA605

= MAGNETI MARELLI MRA51200 / MAR6026 / MAR6041 / MAR986

= MITSUBISHI A1T32371

= TOYOTA 27020-12011 / 27020-12012 / 27020-12030 / 27020-22010 / 27020-22011 / 27020-22012 / 27020-22020 / 27020-22021 / 27020-22022 / 27020-23011 / 27020-23012 / 27020-23020 / 27020-23021 / 27020-23022 / 27020-24010 / 27020-24020 / 27020-24021 / 27020-24090 / 27020-31020 / 27020-31030 / 27020-31031 / 27020-31032 / 27020-31033 / 27020-31034 / 27020-31050 / 27020-31051 / 27020-31090 / 27020-38012 / 27020-87102 / 27020-87103 / 27020-87209 / 27020-87705

= VALEO 436525

Le régulateur qui correspond se trouve on notre site sous la Reference w130627.

for modèle

FG10-12 FG15-12 FG18-12 F2302 FG20 FG25

                              NO CORE EXCHANGE NEEDED

                                                  TWO YEARS WARRANTY
