w111195

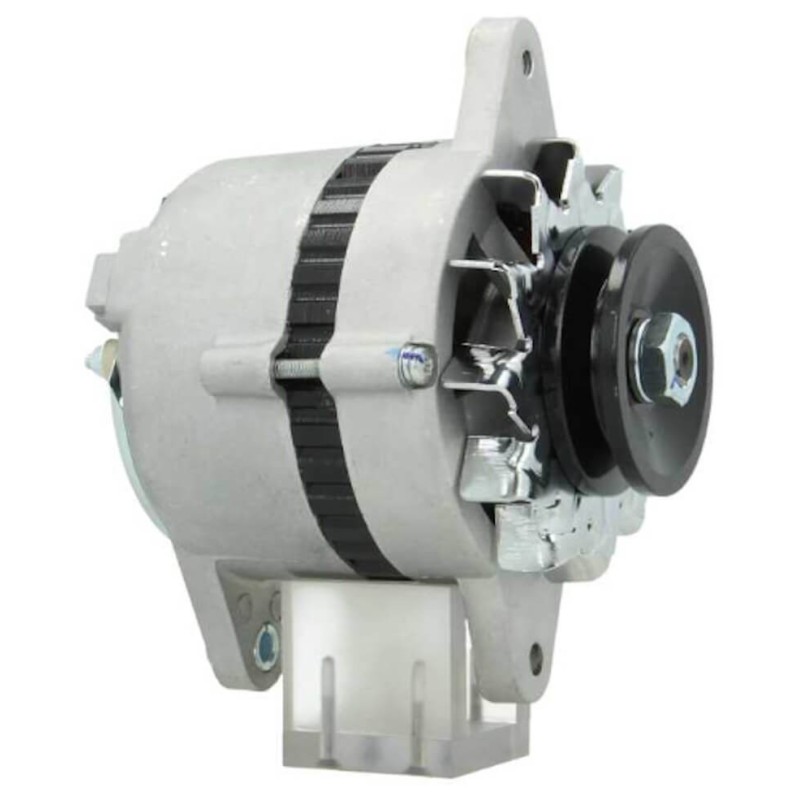

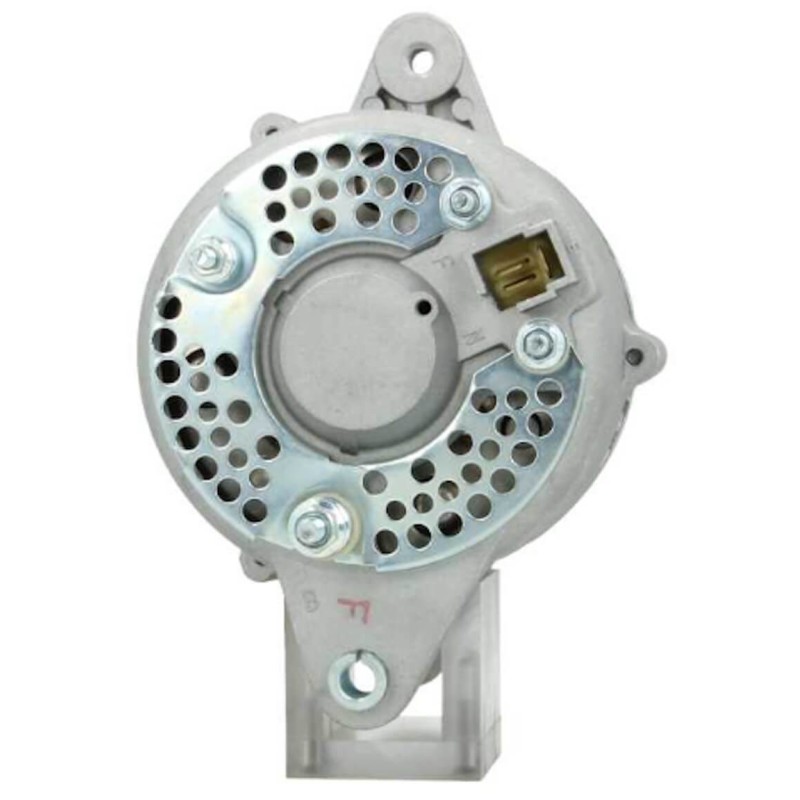

Alternator for KUBOTA

The corresponding regulator for this alternator can be found on our website under the reference w130627.


IT IS VERY IMPORTANT BEFORE INSTALLING THE NEW ALTERNATOR.

TO CHECK YOUR REGULATOR.

for engine KUBOTA :

- S2800 / D1402 from 1979 to 2001 / D1302 from 1986 to 2001 / S2600

Read more
€79.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

0210006840

Denso

0210008660

Denso

111195

HC-Cargo

12055N

WAI

1210000600

Denso

1525364010

Kubota

1525364012

Kubota

1532164010

Kubota

1532164012

Kubota

1541164010

Kubota

1541164011

Kubota

1547164010

Kubota

1547164011

Kubota

1560664010

Kubota

1560664011

Kubota

1562164010

Kubota

1562164011

Kubota

1576364010

Kubota

1576364011

Kubota

1576364012

Kubota

695002035

PSH

9702109684

Denso

ALT30060

Wood Auto

ALT7305

Wood Auto

ALT7307

Wood Auto

F032111195

HC-Cargo

LRA02577

Lucas

LRA2577

Lucas

WOOALT30060

Wood Auto

Features

Information:

Voltage 14

Amp 35

D = Bracket hole 8.50

G = Belt. adj. bracket hole 8.70

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 67.40

H = Pulley dia. 75.00

A = Pulley dist. 43.45

Grooves/pulley 1

J = Radius 78.00

J = Radius 76.00

Position B + M6

Rotation Cr

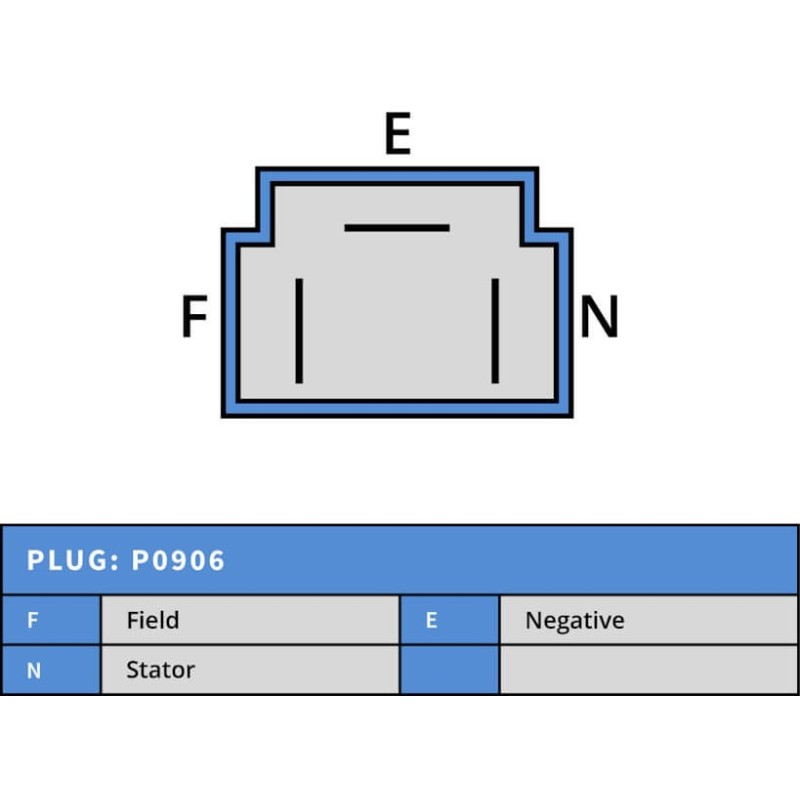

Plug no. 1 PL15

Fan Ef

Pulley Pulley

R = Total length mm 158.00

= KUBOTA 15253-64010 / 15621-64010 / 15621-64011

15763-64010 / 15763-64011 / 15763-64012

                     NO CORE EXCHANGE NEEDED

                                         TWO YEARS WARRANTY

Le régulateur correspondant a cet alternator se trouve on notre site sous la Reference w130627.

IL EST TRES IMPORTANT AVANT MONTAGE DU NOUVEL ALTERNATEUR

DE VERIFIER VOTRE REGULATEUR.
