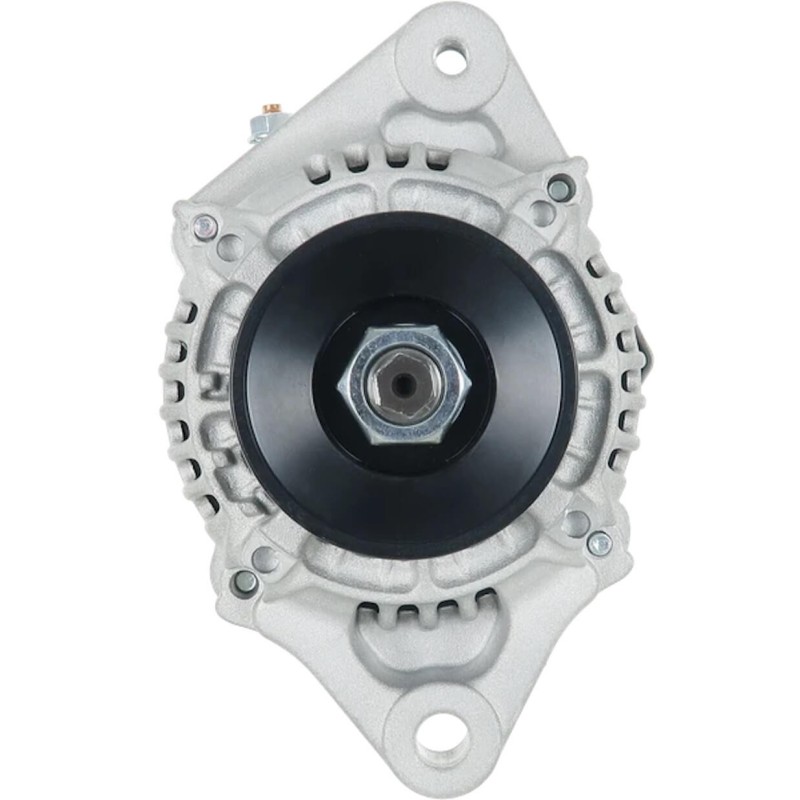

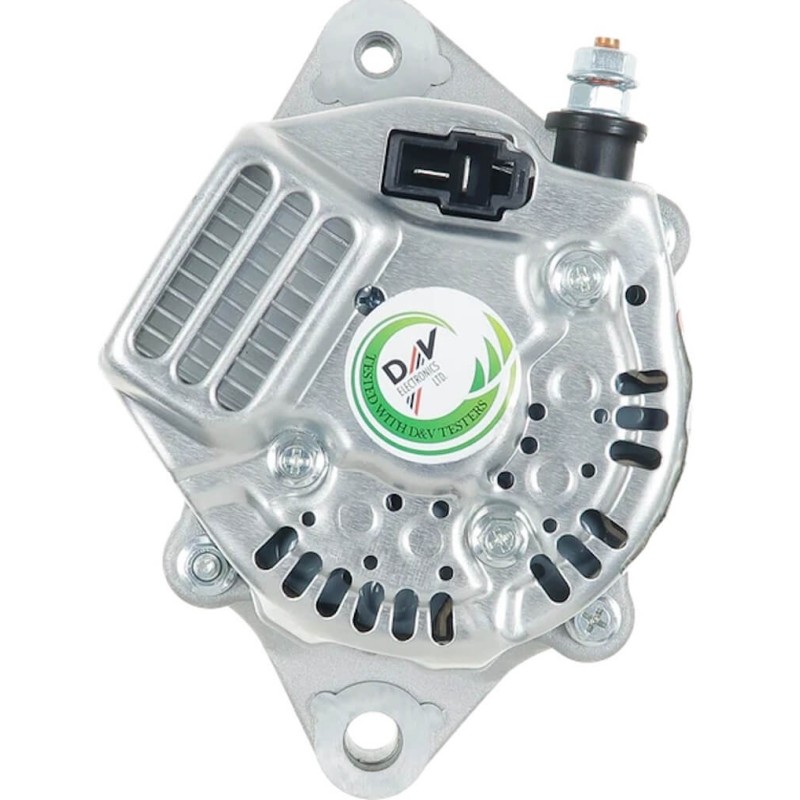

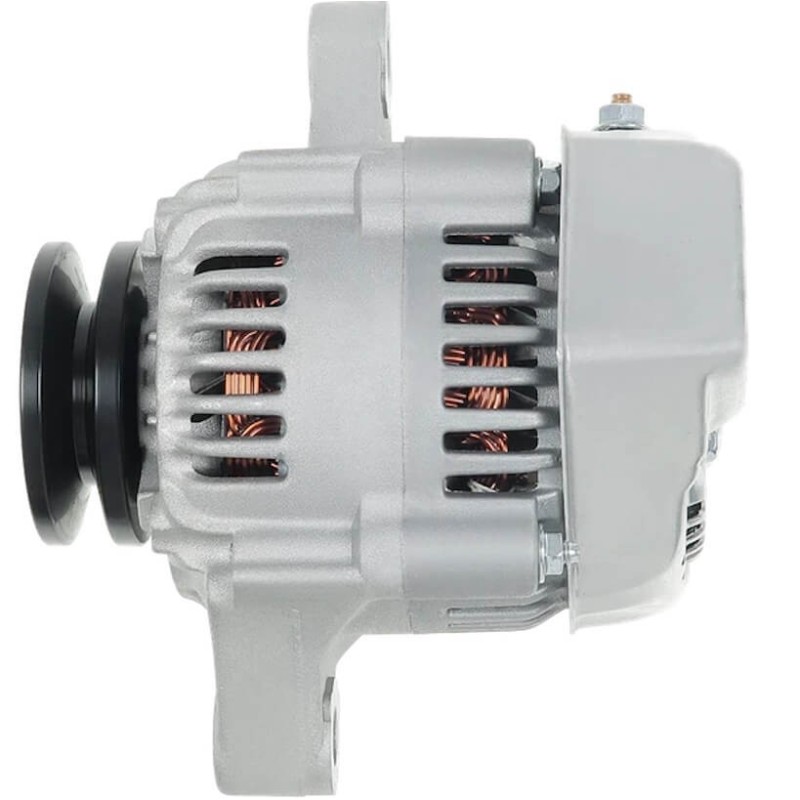

Alternator replacing DENSO 100211-4631 / 100211-4630 / 100211-4621

Information:

Voltage 14

Amp 40

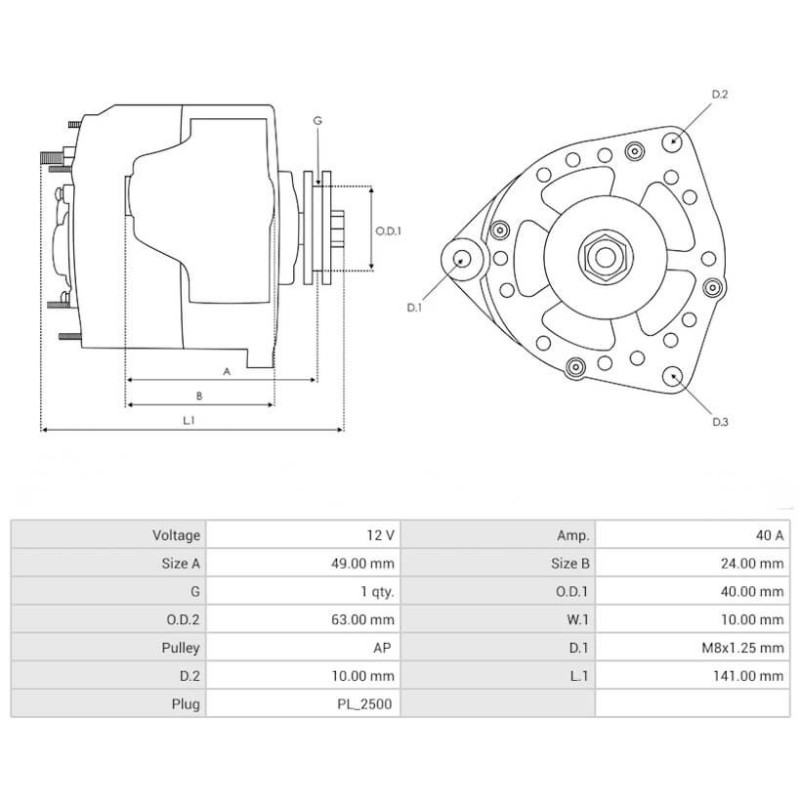

D = Bracket hole 10.35

G = Belt. adj. bracket hole M8

B = Width/holder arm 24.00

E = Belt. adj. brackethole pos. 3

H = Pulley dia. 62.75

A = Pulley dist. 45.00

Grooves/pulley 1

J = Radius 70.75,

J = Radius 67.50

Position B + M6

Rotation Cr

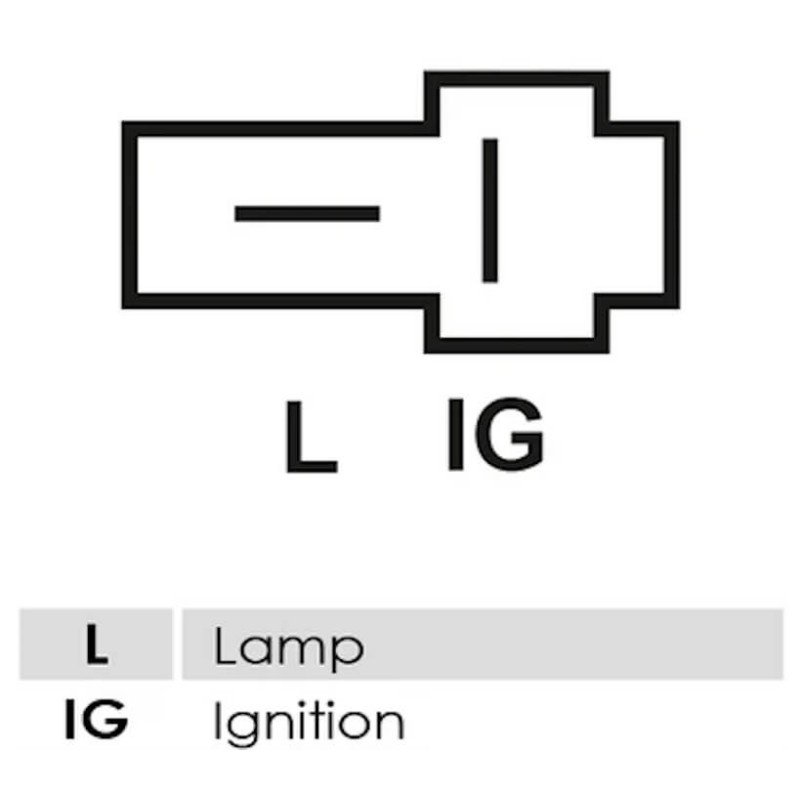

Plug no. 1 PL10

Fan If

Pulley Pulley

R = Total length mm 141.50

Generic Brand / wai

= DENSO 100211-4631 / 100211-4630 / 100211-4621 / 100211-4620

= DAIHATSU 27060-87211-000 / 27060-87212-000

= DRA3827 / LRA01489

fitsDAIHATSU :

- Cuore esence 0.85l engine ED10K

fitsKAWASAKI :

- KAF 950 MULE 2510 DIESEL 953CC DE 2000 to 2002

- KAF 950 MULE 3010 DIESEL 4X4 953CC DE 2003 to 2008

- KAF 650 MULE 3010 DIESEL TRANS 4X4 DE 2007 to 20088

- KAF 950 MULE 4010 DIESEL 4X4 953CC DE 2009 to 2013

- KAF 950 MULE 4010 TRANS 4X4 DIESEL 953CC DE 2009 to 2013

                    NO CORE EXCHANGE NEEDED

                                           TWO YEARS WARRANTY
