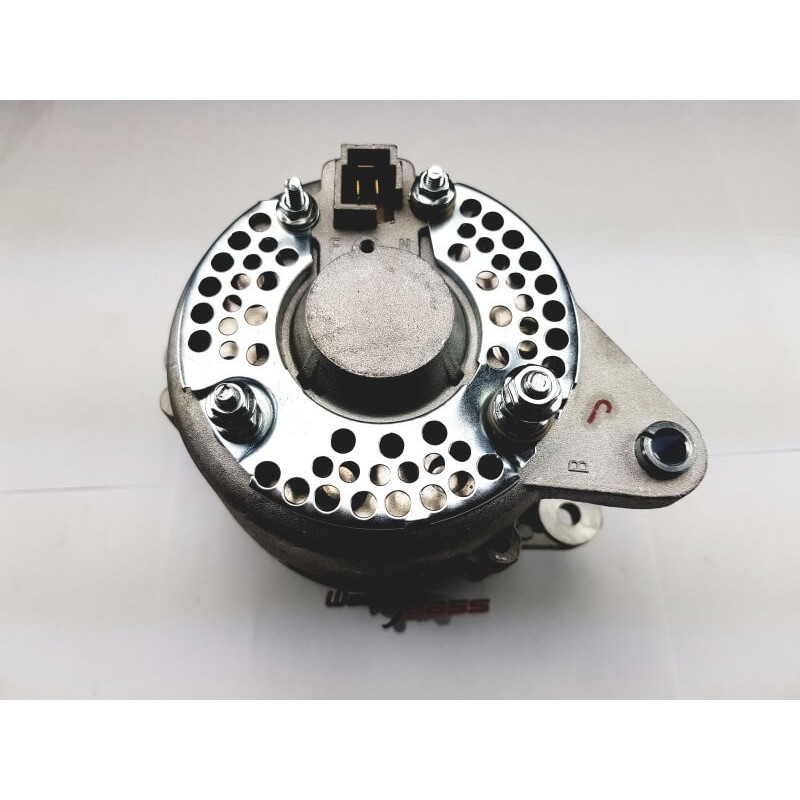

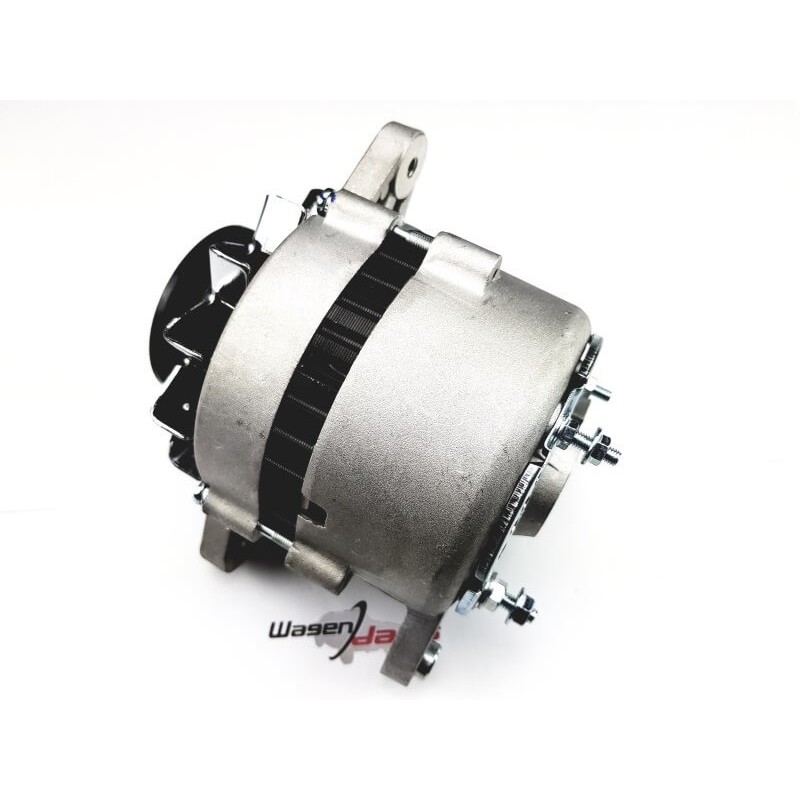

Alternator replacing DENSO 121000-0980 / 121000-0600

w111195

New product

2 Items

Alternator for KUBOTA

The corresponding regulator for this alternator can be found on our website under the reference w130627.
IT IS VERY IMPORTANT BEFORE INSTALLING THE NEW ALTERNATOR.

TO CHECK YOUR REGULATOR.

for engine KUBOTA :

- S2800 / D1402 from 1979 to 2001 / D1302 from 1986 to 2001 / S2600

99,00 € Inc VAT

More info

Information:

Voltage 14

Amp 35

D = Bracket hole 8.50

G = Belt. adj. bracket hole 8.70

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 67.40

H = Pulley dia. 75.00

A = Pulley dist. 43.45

Grooves/pulley 1

J = Radius 78.00

J = Radius 76.00

Position B + M6

Rotation Cr

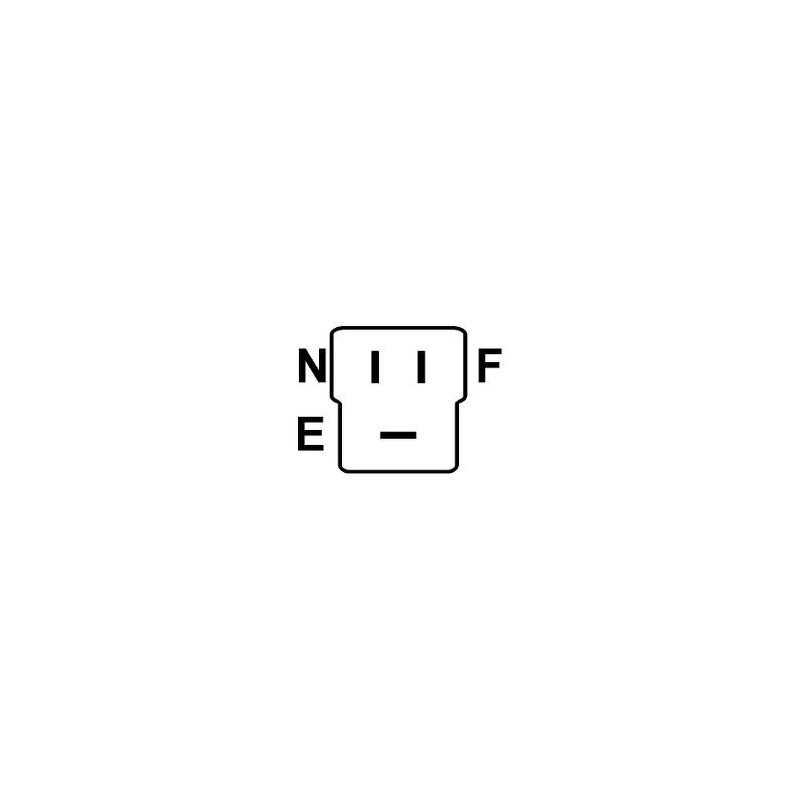

Plug no. 1 PL15

Fan Ef

Pulley Pulley

R = Total length mm 158.00

= KUBOTA 15253-64010 / 15621-64010 / 15621-64011

15763-64010 / 15763-64011 / 15763-64012

                     NO CORE EXCHANGE NEEDED

                                         TWO YEARS WARRANTY

Le régulateur correspondant a cet alternator se trouve on notre site sous la Reference w130627.

IL EST TRES IMPORTANT AVANT MONTAGE DU NOUVEL ALTERNATEUR

DE VERIFIER VOTRE REGULATEUR.
