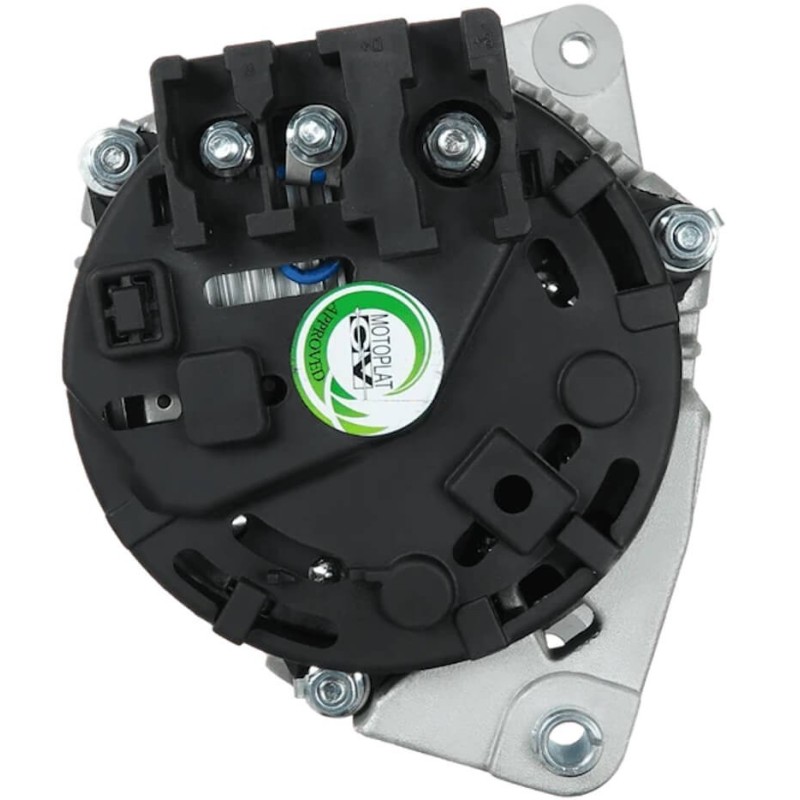

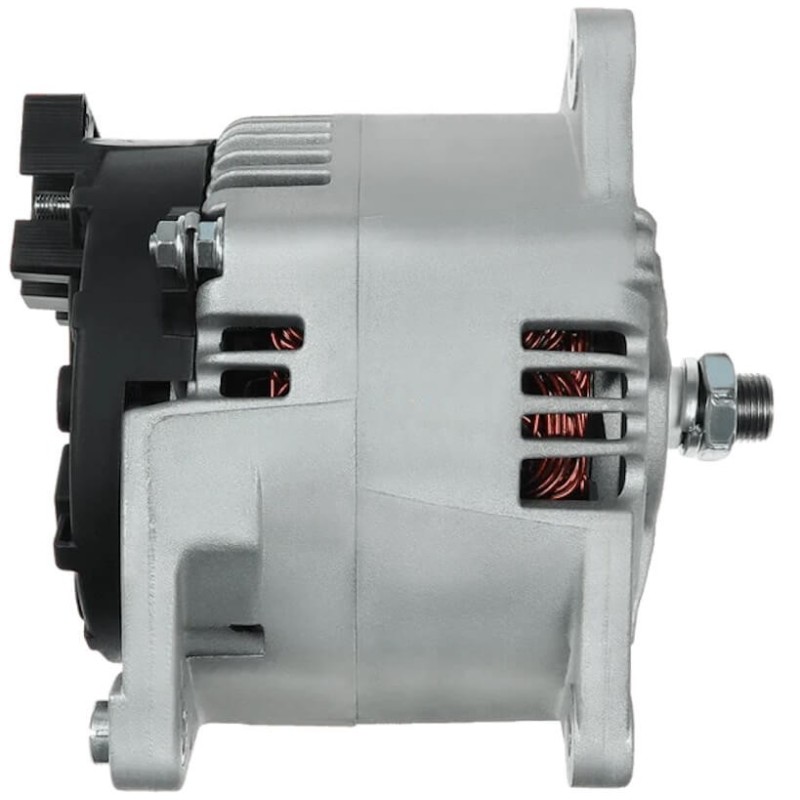

Alternator replacing DENSO 102211-8140 / 102211-8141 für CATERPILLAR

Information:

Voltage 28

Amp 80

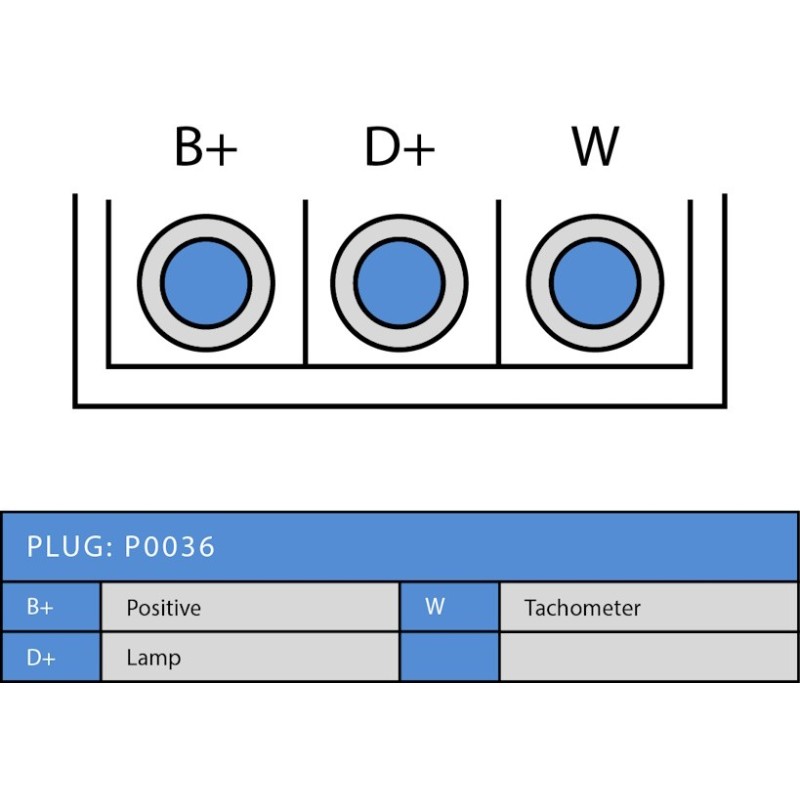

Plug type W

D = Bracket hole 8.00

G = Belt. adj. bracket hole M8

B = Width/holder arm 14.00

E = Belt. adj. brackethole pos. 50

C = Mount. bracket dist 82.00

J = Radius 86.00

J = Radius 86.00

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan If

Pulley Without

R =  Total length mm 178.00

brand / wai

= DENSO 102211-8140 / 102211-8141

= PERKINS 2871A701 / 2871A704

CATERPILLAR 225-3146, 225-3147, 346-9826, 3469825, 3469827, 424-6821, HYSTER 1556256, JCB 714-40208, 714/40208, MAGNETI MARELLI 063377465010, 63307466, 63377465, 63377466, MAN7465, PERKINS  2871A701, 2871A702, 2871A704, 2871A705, 3991485, T416234, T416349
