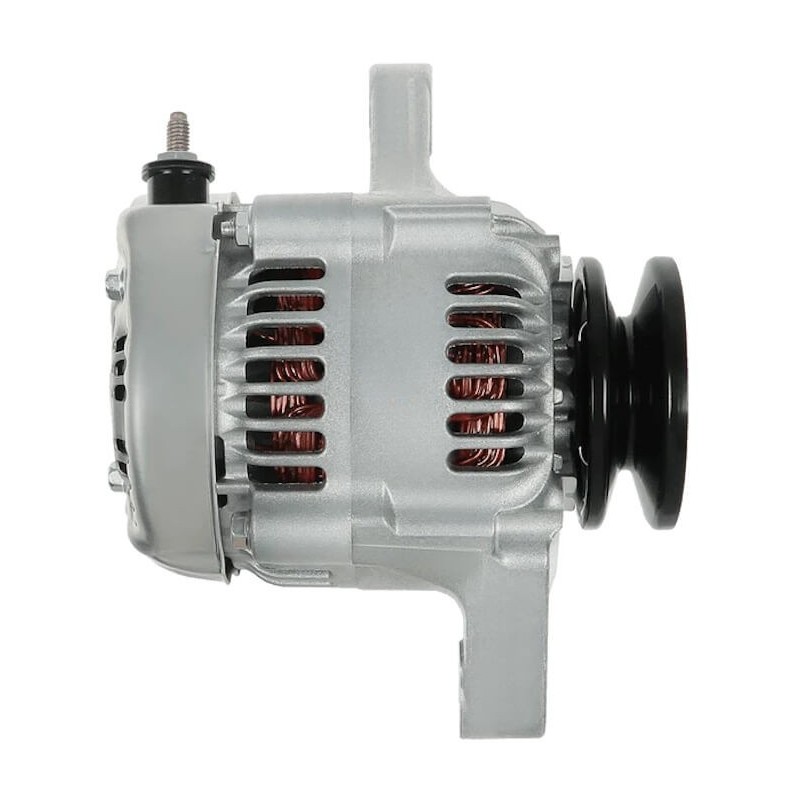

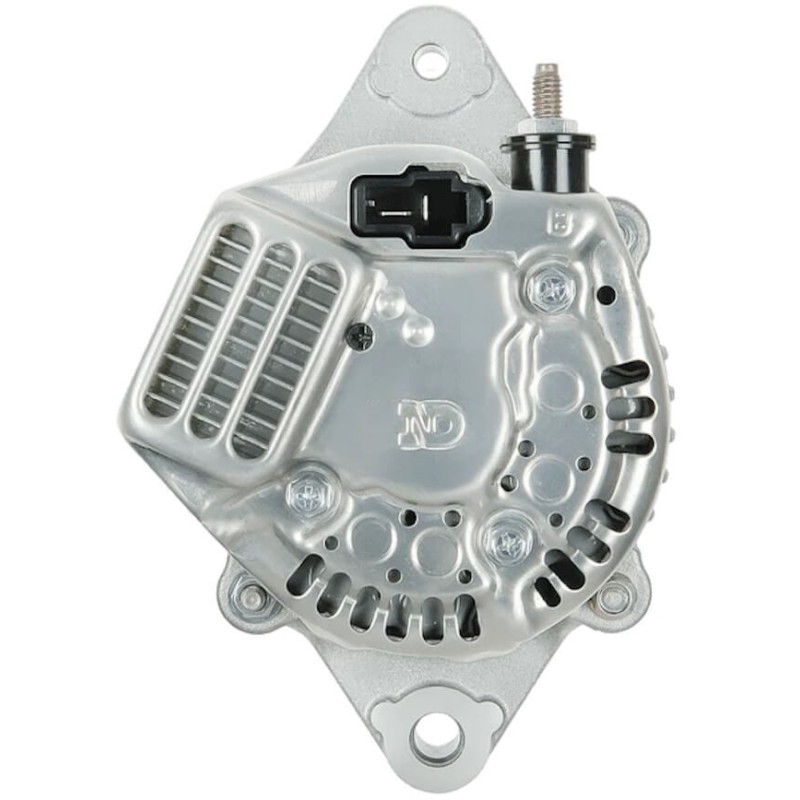

Alternator replacing DENSO 100211-4701 / 100211-4700 / 100211-4531

w110620

New product

9 Items

Alternator NEW for KUBOTA / aixam / yanmar / john deere

= DENSO 100211-4530 / 100211-1662 / 100211-1661 / 100211-1660

100211-4701 / 100211-4700 / 100211-4531

= JOHN DEERE am877740 / RE42778 / RE72915 / RE729151 / TY6760

= TOYOTA 27060-78001 / 27060-78001-71 / 27060-96001

= YANMAR 119620-77201 / 119620-77202

119,90 € Inc VAT

More info

Information:

Voltage 14

Amp 40

D = Bracket hole 10.20

G = Belt. adj. bracket hole M8

B = Width/holder arm 23.50

E =  Belt. adj. brackethole pos. 60

H = Pulley dia. 74.75

A = Pulley dist. 44.00

Grooves/pulley 1

J = Radius 69.50

J = Radius 66.00

Position B + M6

Rotation Cr

Plug no. 1 PL10

Fan If

Pulley

R = Total length mm 143,00

generic brand

Replacing
100211-1660DENSO
100211-1661DENSO
100211-1662DENSO
100211-4530DENSO
100211-4531DENSO
100211-4700DENSO
100211-4701DENSO
119620-77201YANMAR
119620-77202YANMAR
16771-64010KUBOTA
16771-64012KUBOTA
17580-64012KUBOTA
27060-78001TOYOTA
27060-78001-71TOYOTA
27060-96001TOYOTA
AM877740JOHN DEERE
JA971IRHC-PARTS
RE72915JOHN DEERE

= JOHN DEERE am877740
= TOYOTA 27060-78001 / 27060-78001-71 / 27060-96001
= YANMAR 119620-77201 / 119620-77202

HYSTER 3049491
KHD 0441-2972

VALEO 436498

1002114530
1002114530+
1002114531
1002114531CO
1002114700
1002114701
110620
11962077201
11962077202
12188
12188N
1233501ND
283881
290208
90295292
90295293
985503040
985503040200
985503040260001
985503040260002
985503040265
985503040415
ALT6050sa
AM877740
CAL40248AS
CAL40248RS
KTR1971006080
LRA01980
RE42778
RE72915
SE501824
TRA250
TY25239

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
