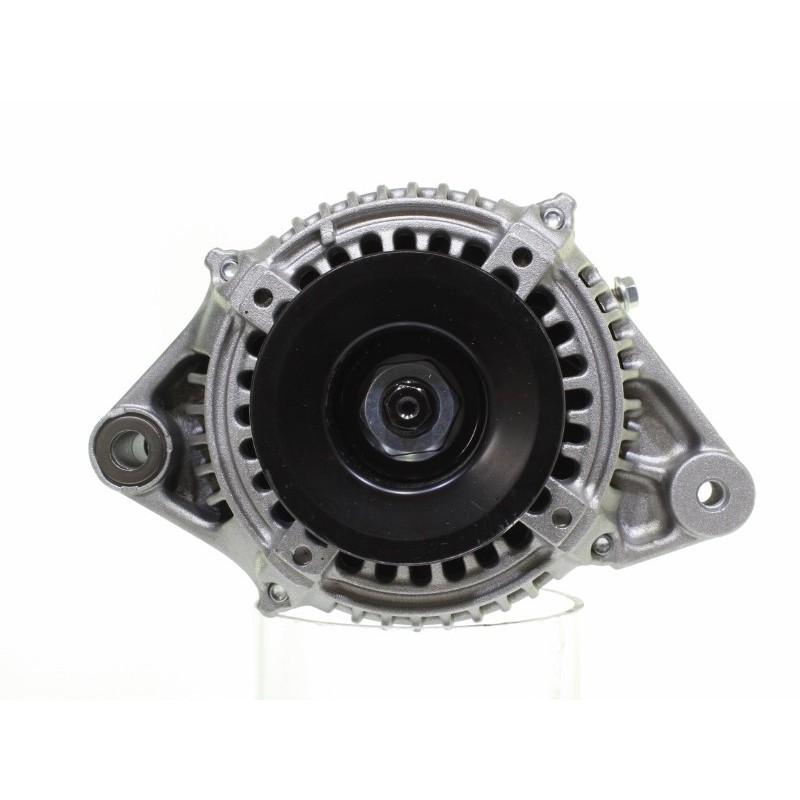

Alternator replacing DENSO 100211-8410 / TOYOTA 27060-17030

Information:

Voltage 14

Amp 80

D = Bracket hole 10.30

G = Belt. adj. bracket hole M8

B = Width/holder arm 58.10

E = Belt. adj. brackethole pos. 5

H = Pulley dia. 79.50

A = Pulley dist. 92.00

Grooves/pulley 2

J = Radius 80.00

J = Radius 83.00

Position B + M6

Rotation Cr

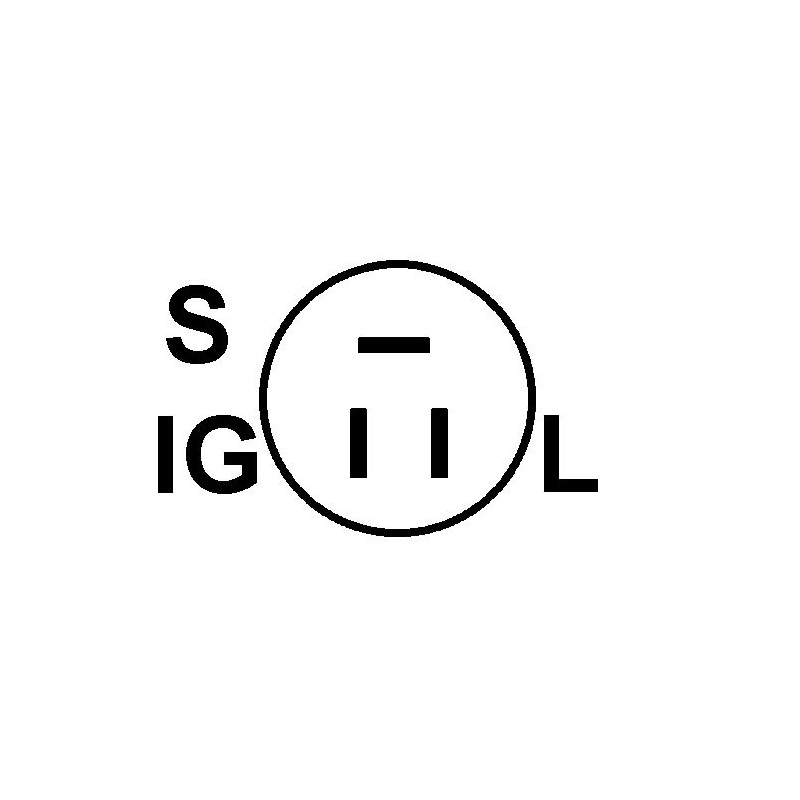

Plug no. 1 PL12

Fan If

Pulley Pulley double

Total length mm 167.00

= DENSO 100211-8410

= TOYOTA 27060-17030

= LUCAS LRA01859

= MAGNETI MARELLI 944390512910

Generic brand

TWO YEARS WARRANTY

NO CORE EXCHANGE NEEDED
