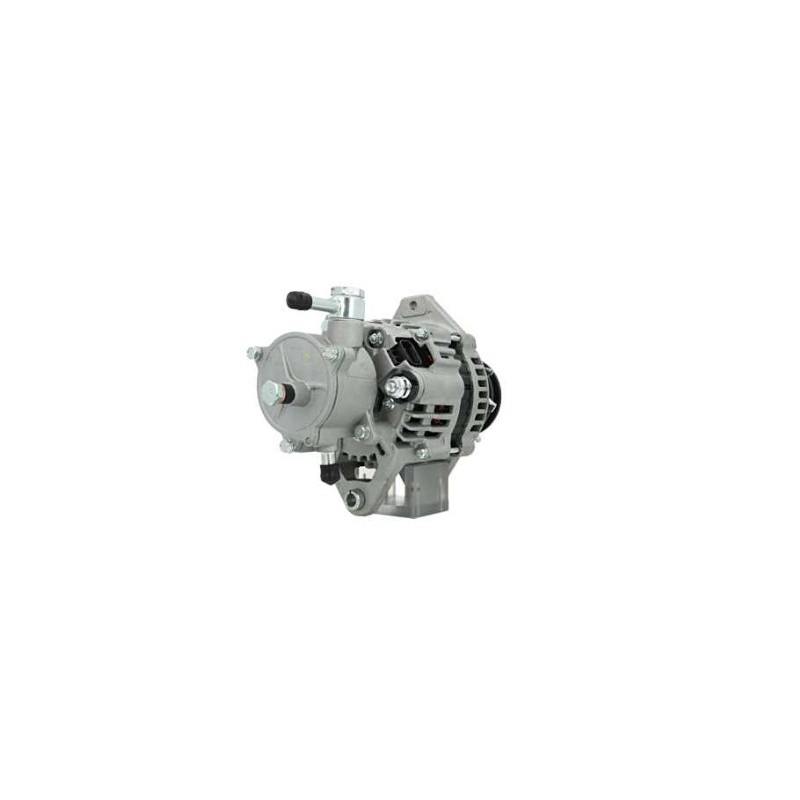

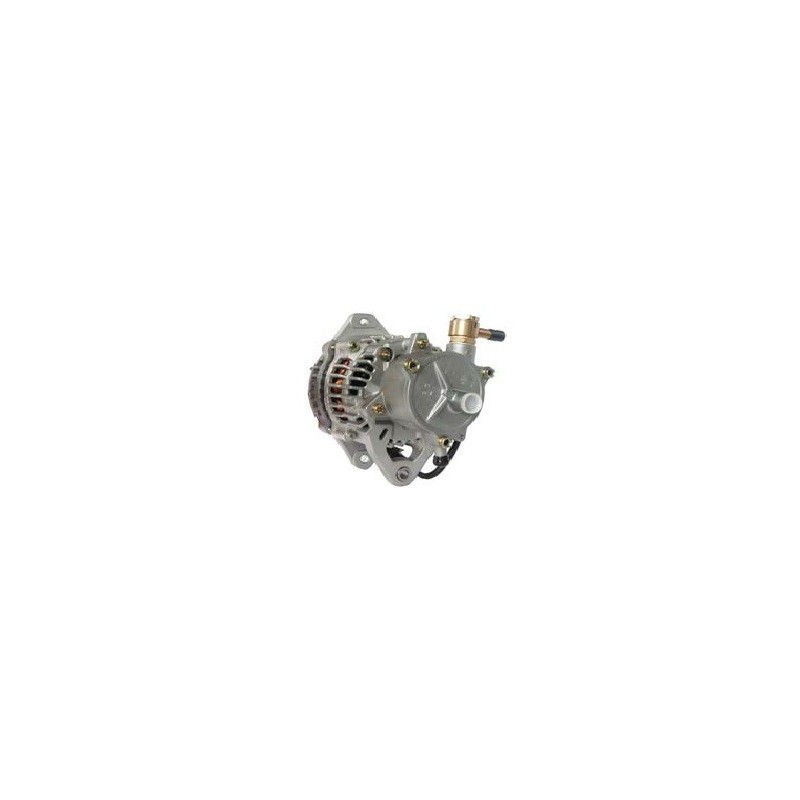

Alternator replacing HITACHI LR250-510C / LR250-511 / 8971701631
Alternator NEW Used onisuzu
24 volts / 50 Amp / diameter pulley 82 mm / pulley 3 gorges
= LR250-517 / LR250-508 / 8971701631 / 8971865510 / 8971865511 / 8973515720
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info

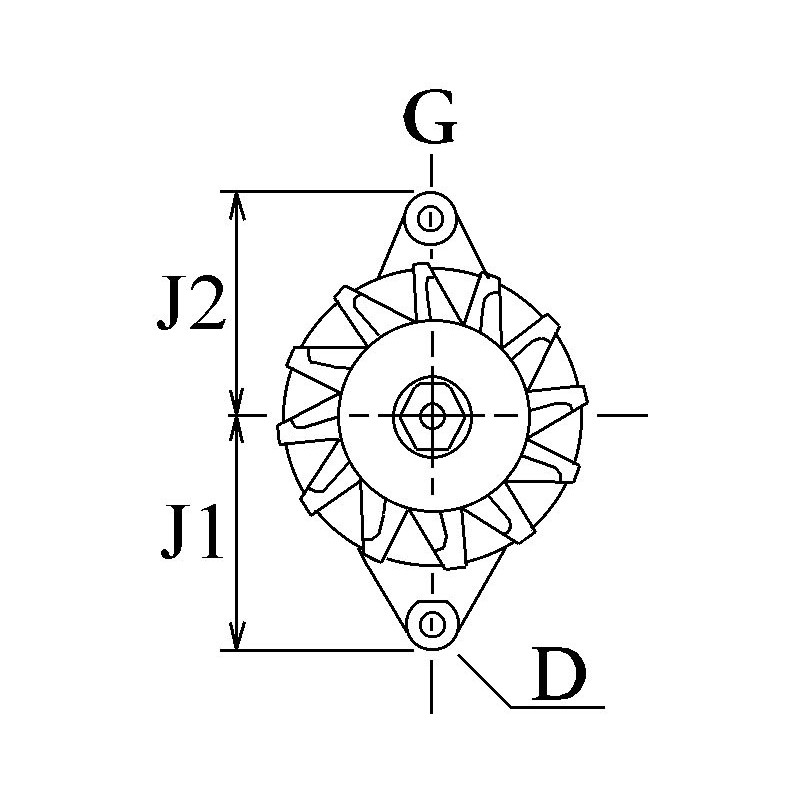

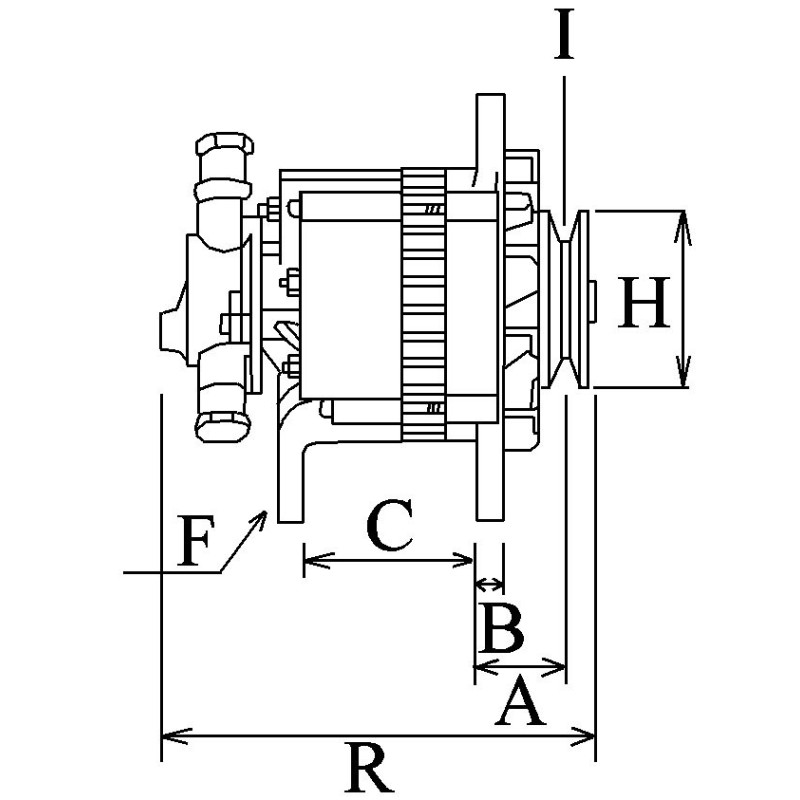

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | 8.45 |
| B | Width/holder arm | 17.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 78.00 |
| H | Pulley dia. | 83.00 |
| A | Pulley dist. | 43.00 |
| i | Grooves/pulley | 3 |
| j | Radius | 85.50 |
| j | Radius 2 | 88.40 |
| k | Position B + | M6 |
| n | Rotation | Cr |

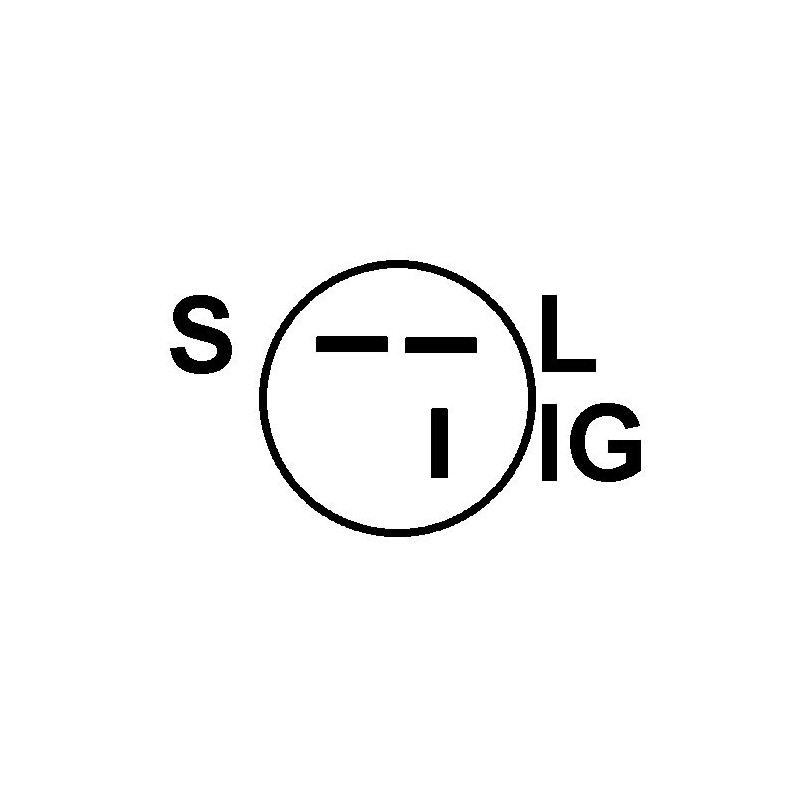

| o | Plug no. 1 | PL32 |
| R | Total length mm | 291.00 |
| 114014 |
| 136801050 |
| 8971443921 |
| 8971701602 |
| 8971701631 |
| 8971865510 |
| 8971865511 |
| 8973515720 |
| ALT3035sa |
| ALT3094sa |
| ALT3102sa |
| ALTV043 |
| KTR273602100 |
| LR250-508 |
| LR250510 |
| LR250510C |
| LR250-511 |
| LR250511B |
| LR250517 |
| LRA03734 |
Brand +Line
fits:
| ISUZU | FTR | 4HJ1 |
| ISUZU | NCR 500 | 4HJ1 |
| ISUZU | NKR | 4HJ1 |
| ISUZU | NPR 300 / 400 | 4HJ1 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
