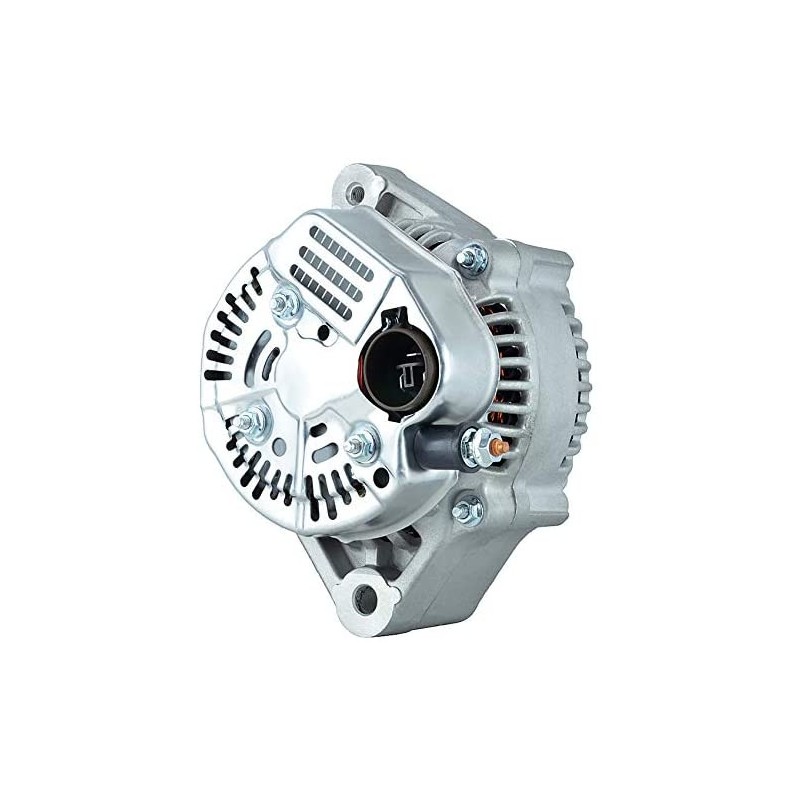

Alternator replacing DENSO 100211-9800 / 100211-9780 / 100211-8130

MARQUE GENERIQUE

Information:

Rotation Cr

Amp 70

Voltage 14

D = Bracket hole 10.30

G = Belt. adj. bracket hole M8

B = Width/holder arm 58.00

E = Belt. adj. brackethole pos. 5

H = Pulley dia. 55.00

A =Pulley dist. 90.00

Grooves/pulley 5

J = Radius 79.95

J = Radius 2 83.50

Position B + M6

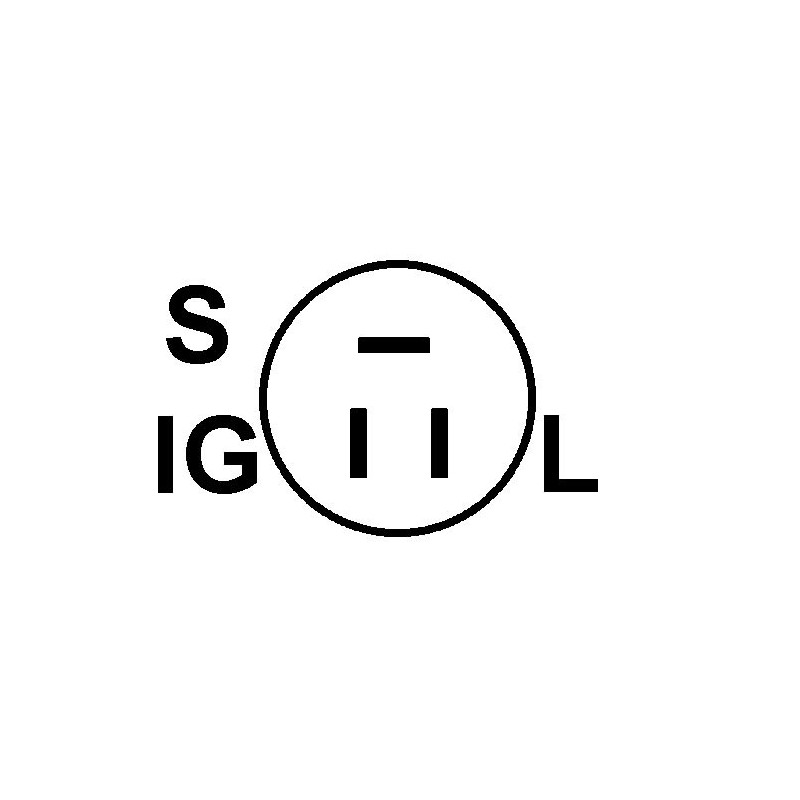

Plug no. 1 PL12

Fan If

Pulley Serpentine Pulley

Tipo regulator Ir

R = Total length mm 158.50

generiq brand

replacing

DENSO100211-1000, 100211-1001, 100211-1060, 100211-1061, 100211-1200, 100211-1201, 100211-1300, 100211-2020, 100211-2021, 100211-2040, 100211-2170, 100211-2280, 100211-2370, 100211-3040, 100211-3041, 100211-3060, 100211-3150, 100211-3151, 100211-3220, 100211-3221, 100211-3530, 100211-3531

GM 94840298, 94844554, 94845639

TOYOTA 27060-01011, 27060-06010, 27060-16040, 27060-16090, 27060-16091, 27060-63020, 27060-63021, 27060-63030, 27060-63030-84, 27060-63031, 27060-63031-84, 27060-63080, 27060-63080-84, 27060-63081, 27060-63082, 27060-63082-84, 27060-63100, 27060-63100-84, 27060-63101, 27060-63102, 27060-63102-84, 27060-70050, 27060-74010, 27060-74010-84

fits TOYOTA :

- Camry

- Carina

- Celica

- Cressida

- MR2

- Supra

                    NO CORE EXCHANGE NEEDED

                                           TWO YEARS WARRANTY
