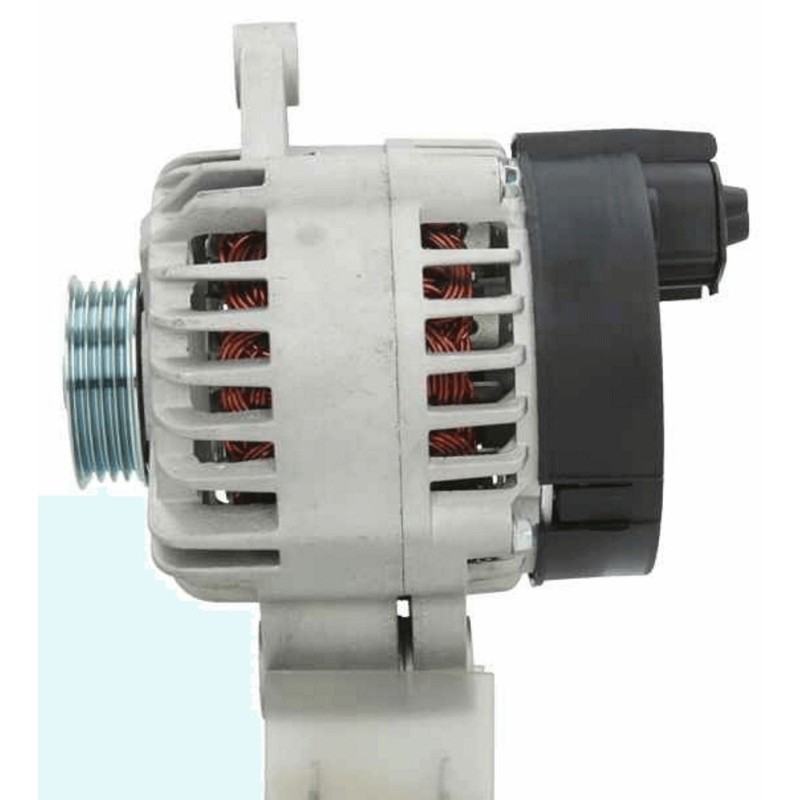

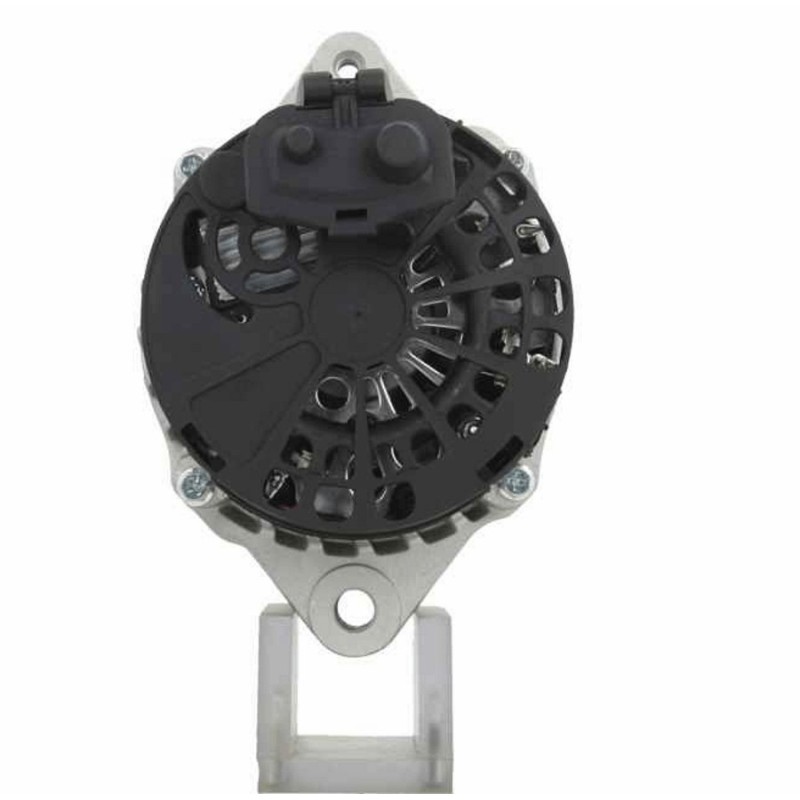

Alternator replacing DENSO 102211-8560 / SUZUKI 31400-86G0
Alternator NEW for SUZUKI / SUBARU
= DENSO 102211-8560, MS102211-8560
= SUBARU 31400-86G00
= SUZUKI 31400-86G0, 31400-86G00, 31400-86G00-000
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 57.20 |
| E | Belt. adj. brackethole pos. | 60 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 90.50 |
| i | Grooves/pulley | 4 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| R | Total length mm | 183.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |
brandr générique
fits:
| Brand | Model | Tipo | Year |
| SUBARU | G3X Justy 1.3 | [M13A] | 01/01/03 |
| SUBARU | Justy 1.3 | 01/01/03 | |
| SUBARU | Justy 1.5 | [M15A] | 01/01/03 |
| SUZUKI | Ignis 1.3 | [M13A] | 01/01/03 |
| SUZUKI | Ignis 1.3 i | [M13A] | 01/01/03 |
| SUZUKI | Ignis 1.3 i 4x4 | [M13A] | 01/01/03 |
| SUZUKI | Ignis 1.5 | [M15A] | 01/01/03 |
| SUZUKI | Ignis 1.5 4x4 | [M15A] | 01/01/03 |
