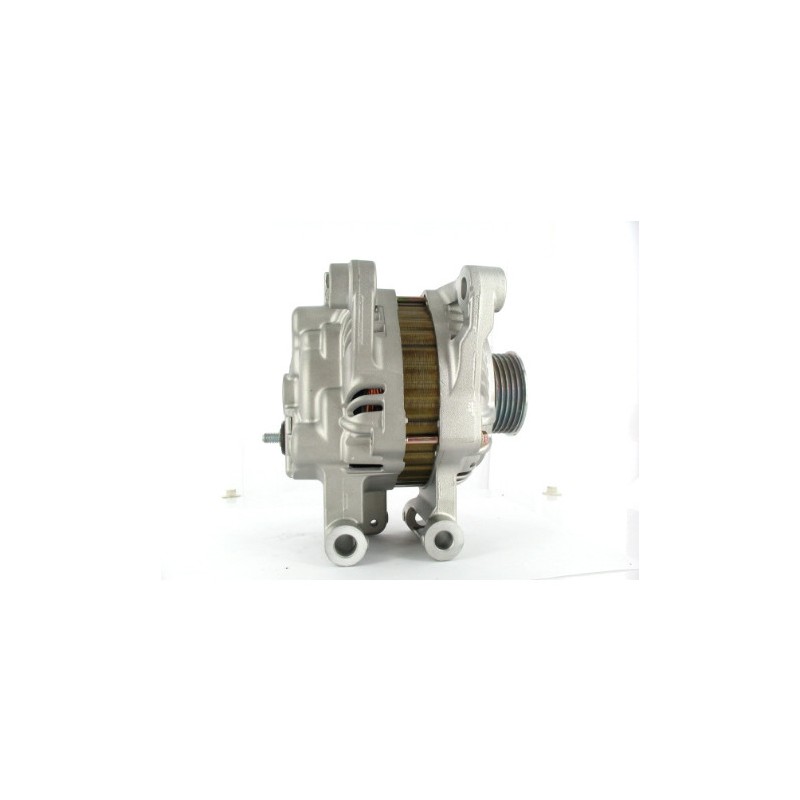

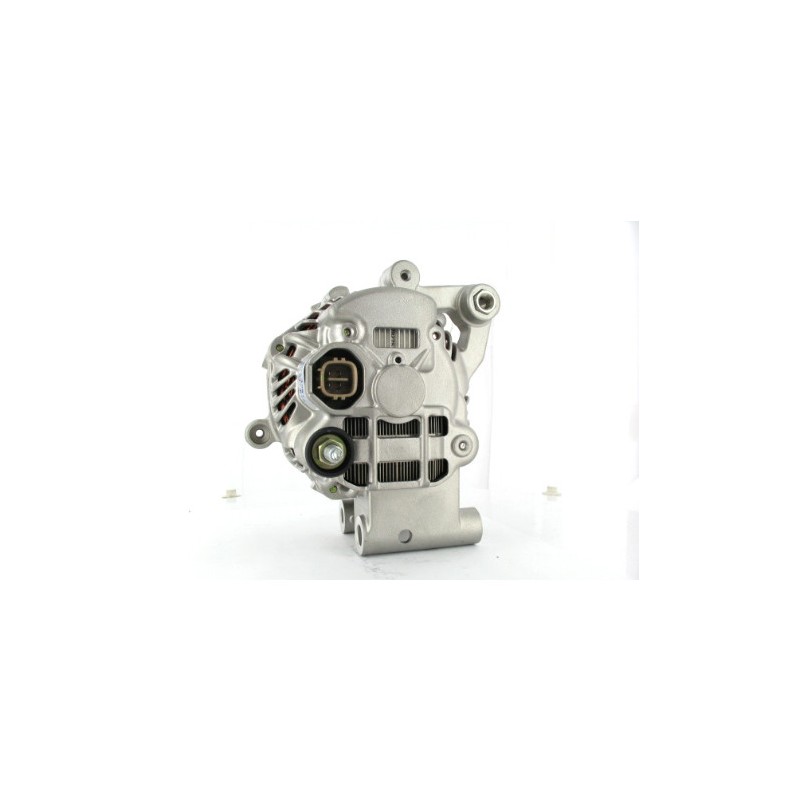

Alternator replacing A5TG1891 / A005TG1891 / A5TG1491 / A5TG1891A
Alternator NEW replacing :
MITSUBISHI A005TG1491, A005TG1891, SUZUKI 31400-78K00, 31400-78K10, 31400-78K11, 31400-78K12, 31400-78K13, 3140078K00000
DRA1056 / LRA03890
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 75 | |

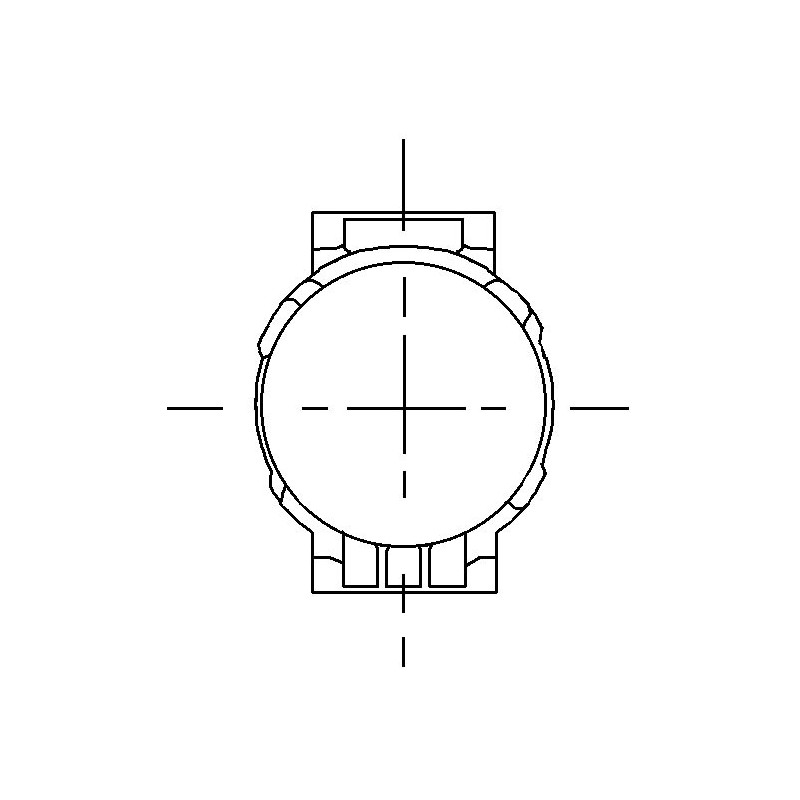

Physical Information | ||
|---|---|---|
| D | Bracket hole | 11.00 |
| G | Belt. adj. bracket hole | 12.00 |
| B | Width/holder arm | 75.00 |
| E | Belt. adj. brackethole pos. | 50 |
| C | Mount. bracket dist | 55.00 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 41.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 83.00 |
| j | Radius 2 | 85.00 |
| k | Position B + | M8x1.25 |
| n | Rotation | CW |

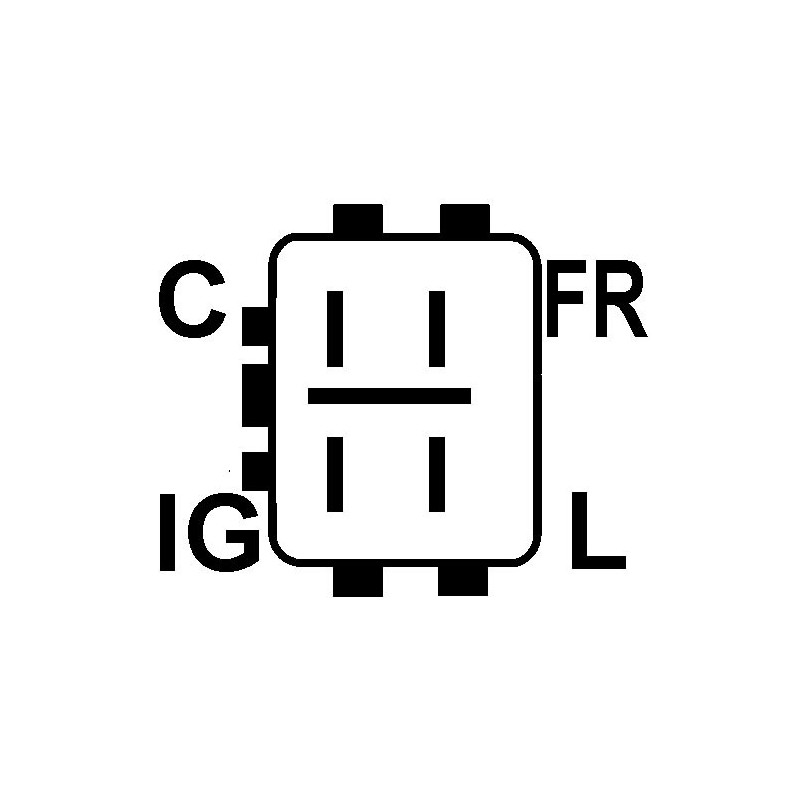

| o | Plug no. 1 | PL60 |
| R | Total length mm | 173.00 |
Replacing | |
|---|---|
| 31400-78k00 | SUZUKI |
| 31400-78K10 | SUZUKI |
| A005TG1891 | MITSUBISHI |
| A5TG1491 | MITSUBISHI |
| A5TG1891 | MITSUBISHI |
| A5TG1891A | MITSUBISHI |
generic brand
SUZUKI
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grand Vitara | Grand Vitara | 2.4 | Unleaded | 2009 01 | - | J24B | 124 | 169 | 4x4 | 2393 | 4 | ||
| Grand Vitara | Grand Vitara | 2.4 | Unleaded | 2009 01 | - | J24B | 122 | 166 | 4x4 | 2393 | 4 |
fits:
| Brand | Model | Tipo | Year | Remarks |
|---|---|---|---|---|
| SUZUKI | Grand Vitara 2.4 | 01.2009- | ||
| SUZUKI | SX4 2.0 | 01.2010- | ||
| SUZUKI | SX4 Crossover 2.0 | 01.2012- |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Data sheet
| Poulie | serpentine |
| Connecteur régulateur | PL6 |
| Ampérage | 140 |
| Voltage | 14 |
