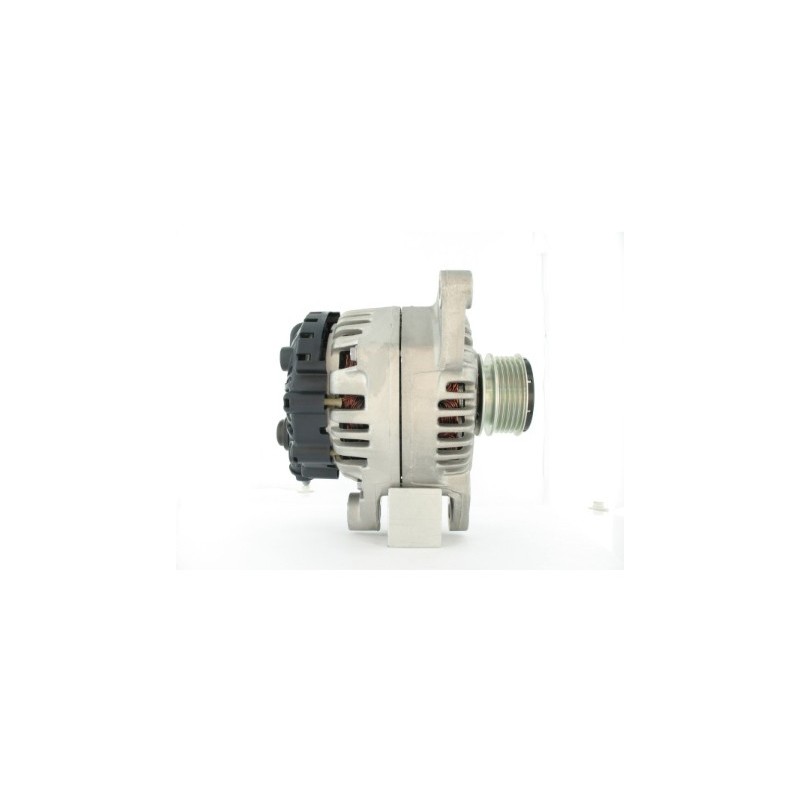

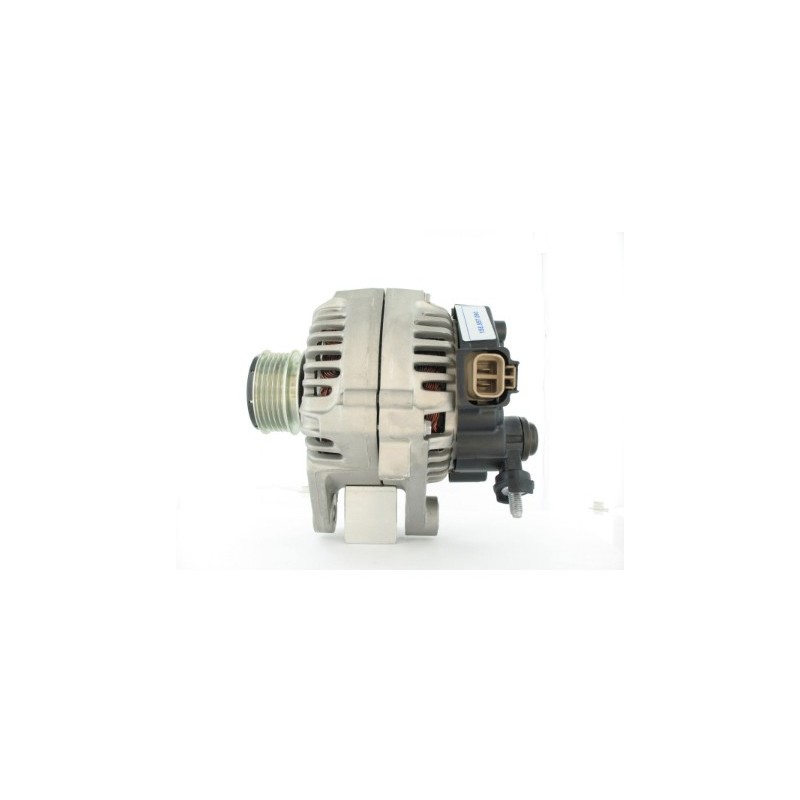

Alternator replacing 0986081310 / 2655103 / 285659 / A0002655103
Alternator replacing 0986081310 / 2655103 / 285659 / A0002655103 / 8EL012429631 / DRA0221
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 11.00 |
| B | Width/holder arm | 13.20 |
| E | Belt. adj. brackethole pos. | 51 |
| C | Mount. bracket dist | 51.00 |
| H | Pulley dia. | 57.00 |
| A | Pulley dist. | 32.50 |
| i | Grooves/pulley | 5 |
| j | Radius | 86.00 |
| j | Radius 2 | 97.50 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL100 |
| R | Total length mm | 191.50 |
Brand Generic
= Reference :
| 0986081310 |
| 155557090 |
| 2655103 |
| 285659 |
| 373002A010 |
| 6389SP |
| 655103 |
| 8EL012429631 |
| 8EL738211821 |
| 9090593F |
| 930221 |
| A0002655103 |
| ALT00717sa |
| CA1938IR |
| DRA0221 |
| DRA0221N |
| DRA0991 |
| HCA1938IR |
| N5110527 |
Mounted on :
| MARQUE | TYPE | MOTEUR | A PARTIR DE |
| HYUNDAI | Accent | 1.5 CRDi | 01/05/18 |
| HYUNDAI | Getz | 1.5 CRDi | 04/05/18 |
| HYUNDAI | I 10 | 1.1 CRDi | 01/08/18 |
| HYUNDAI | Matrix | 1.5 CRDi | 01/04/18 |
| Kia | Ceed | 1.6 CRDi | 01/07/18 |
| Kia | Cerato | 1.5 CRDi | 01/05/18 |
| Kia | Cerato | 1.6 CRDi | 01/05/18 |
| Kia | Picanto | 1.1 CRDi | 11/05/18 |
| Kia | Rio | 1.5 CRDi | 01/05/18 |
