Alternator replacing HITACHI LR160-422B / LR160-422

Information:

Voltage 14

Amp 60

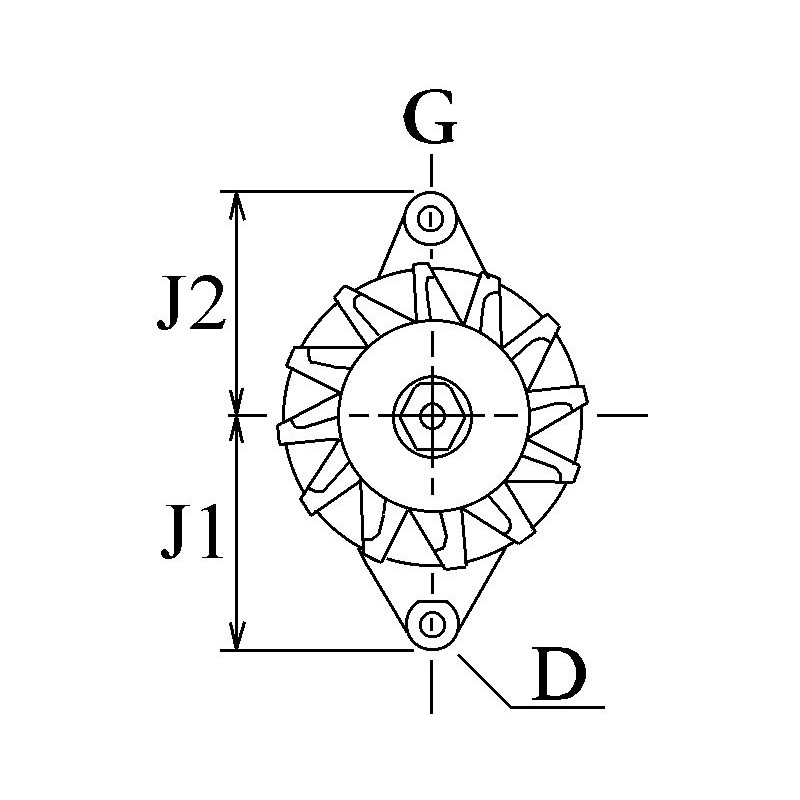

D = Bracket hole 10.30

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.25

E = Belt. adj. brackethole pos. 60

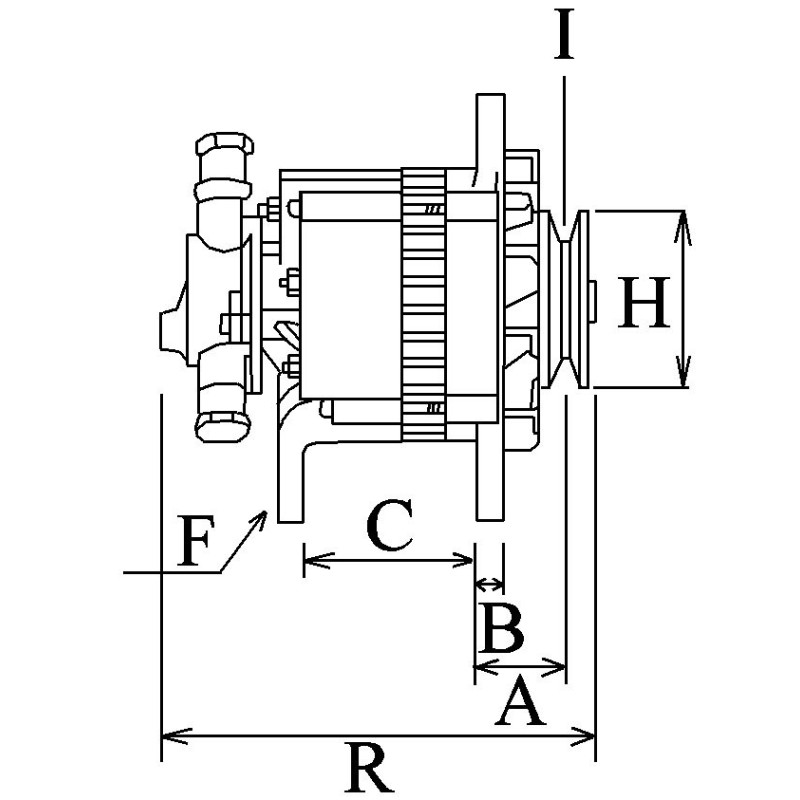

C = Mount. bracket dist 80.50

H = Pulley dia. 74.45

A = Pulley dist. 42.00

Grooves/pulley 1

J = Radius 90.30

J  = Radius 84.25

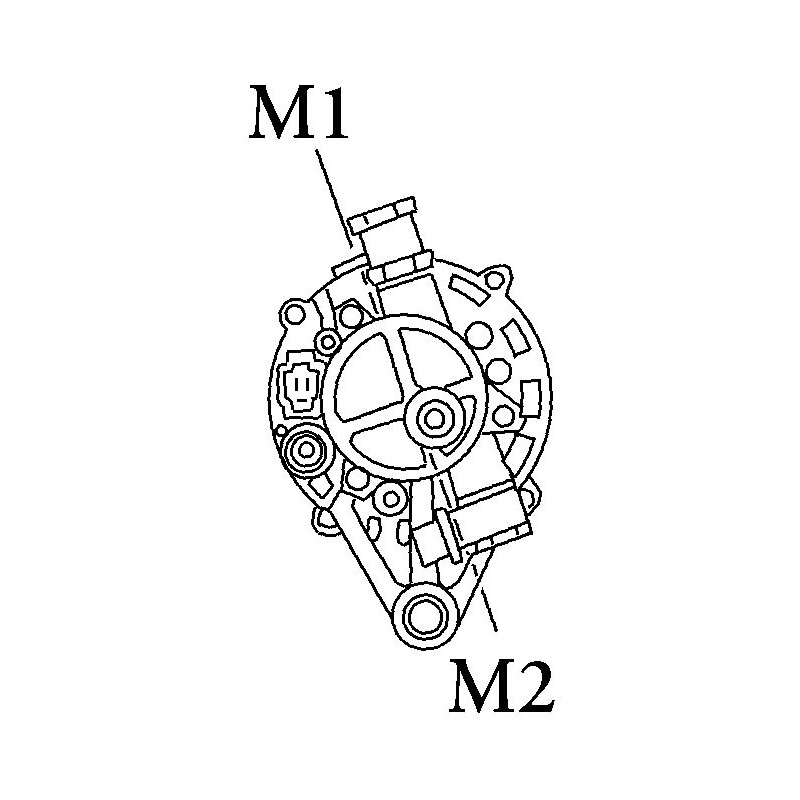

Position B + M5

Rotation Cr

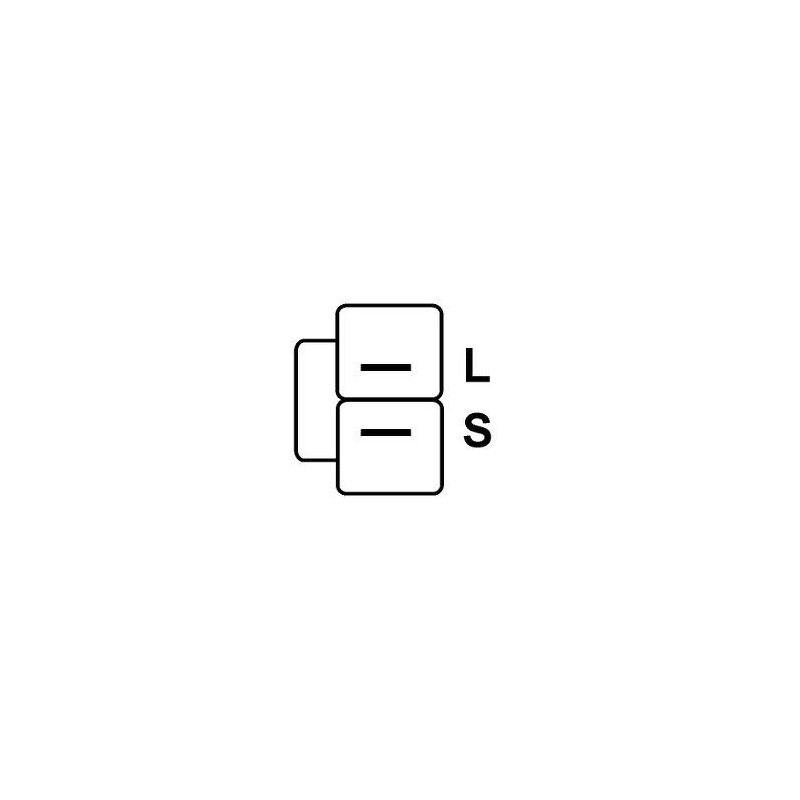

Plug no. 1 PL07

Fan Ef

Pulley Pulley

R = Total length mm 244.00

= HITACHI LR160-422 / lr160-422b

= NISSAN 23100-10g03

                              NO CORE EXCHANGE NEEDED

                                                 TWO YEARS WARRANTY
