Alternator replacing MITSUBISHI A3TA6581ADK / A3TA6581A / A3TA6581

Information:

Voltage 14

Amp 110

D = Bracket hole 10.20

G = Belt. adj. bracket hole 9.00

B = Width/holder arm 12.80

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 81.00

J = Radius 90.00

J = Radius 85.00

Position B + M8

Rotation Cr

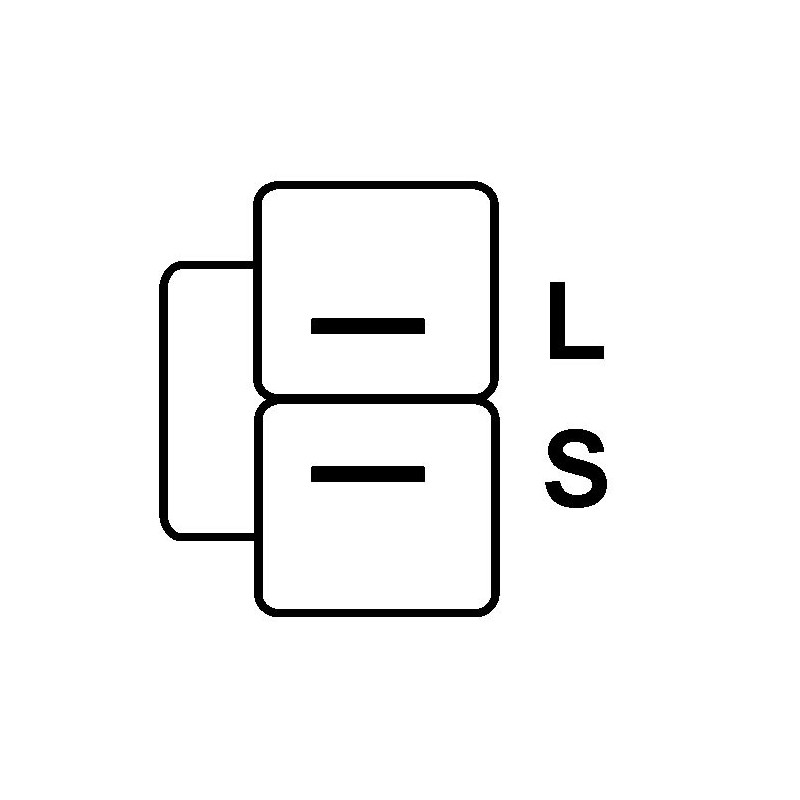

Plug no. 1 PL07

Fan If

Pulley Without

= DELCO REMY DRA0595

= HELLA 8EL738211371

= LUCAS LRA02304

= NISSAN 23100AD210 / 23100AD284

= MITSUBISHI A003TA6581 / A003TA6581A / A003TA6581AK
A003TA6581KD / A3TA6581  / A3TA6581A / A3TA6581ADK
A3TA6581AKD

            NO CORE EXCHANGE NEEDED

                                      TWO YEARS WARRANTY
