Alternator replacing 101211-0250 / 101211-0240 / 100211-9770

generic brand

Information:

Voltage 14

Amp 70

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 57.80

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 60.00

A = Pulley dist. 90.00

Grooves/pulley 4

J = Radius 80.00

J = Radius 83.60

Position B + M6

Rotation COUNTER CLOCKWISE

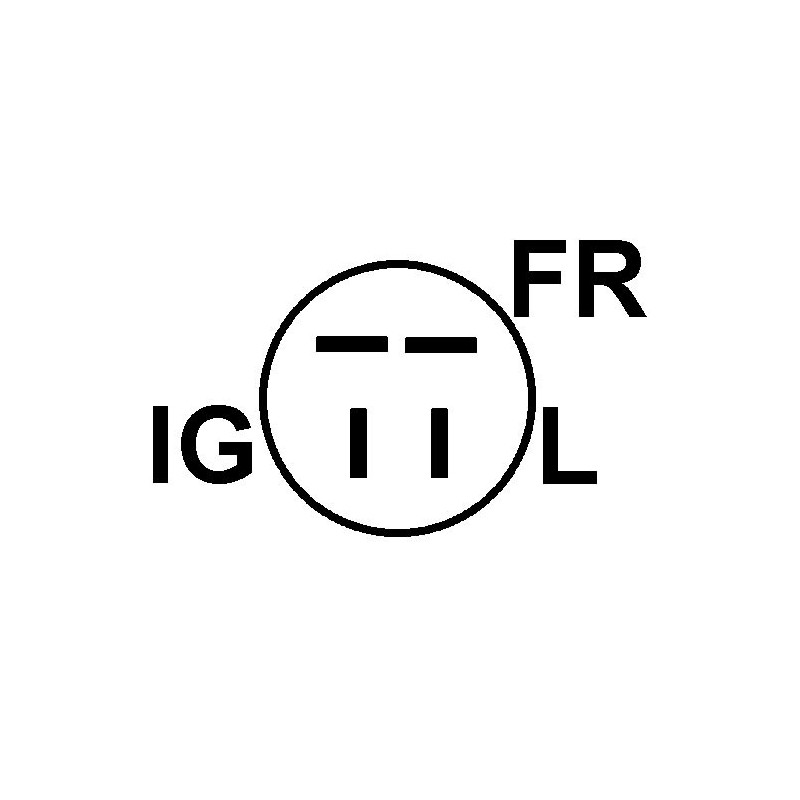

Plug no. 1 PL33

Fan If

Pulley Serpentine Pulley

R = Total length mm 150.00

replacing Reference ci fromssous :

= DENSO 101211-0250 / 101211-0240 / 100211-9770

100211-9760 / 100211-7340

= DELCO REMY 10464174

= HONDA 31100-P04-G01 / 31100-P04-G03 / 31100-p04-g034

31100-P04-G05 / 31100-P05-C04 / 31100-P08-003

31100-P08-004 / 31100-p08-013 / 31100-p08-014

31100-pr5-0030

= MITSUBISHI A005T04092 / A005T04292 / A005T04292ZC

A005T06291 / A005T06391 / A005T06391ZC / A005T06491

A005T06491ZC / A007T04072 / a5t04072 / a5t04092

a5t04292 / a5t04292zc / a5t06291 / a5t06391

a5t06391zc / A5T06491 / a5t06491zc / a7t04072

                    NO CORE EXCHANGE NEEDED

                                      TWO YEARS WARRANTY
