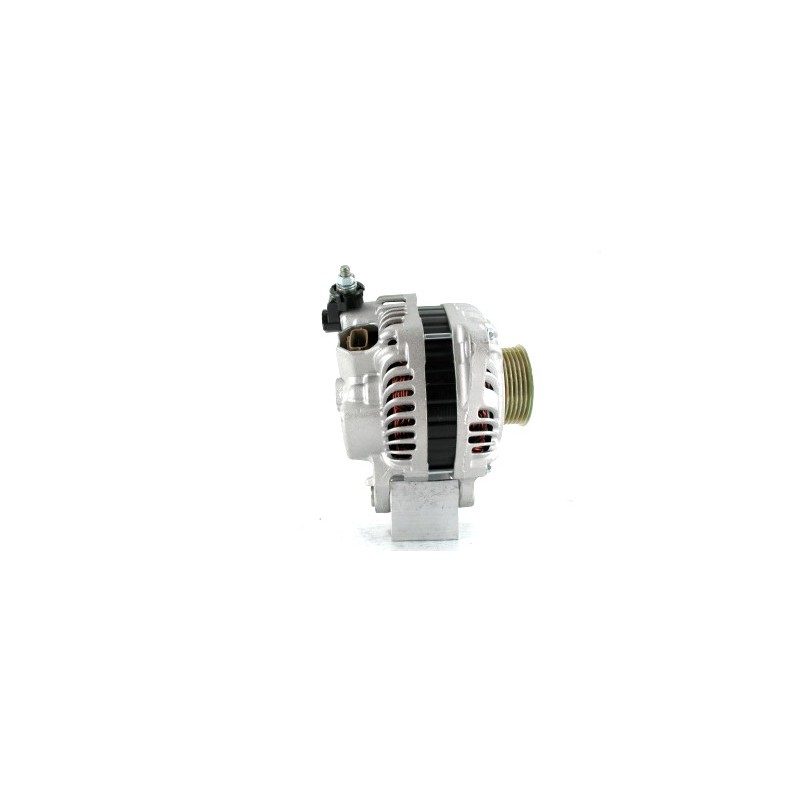

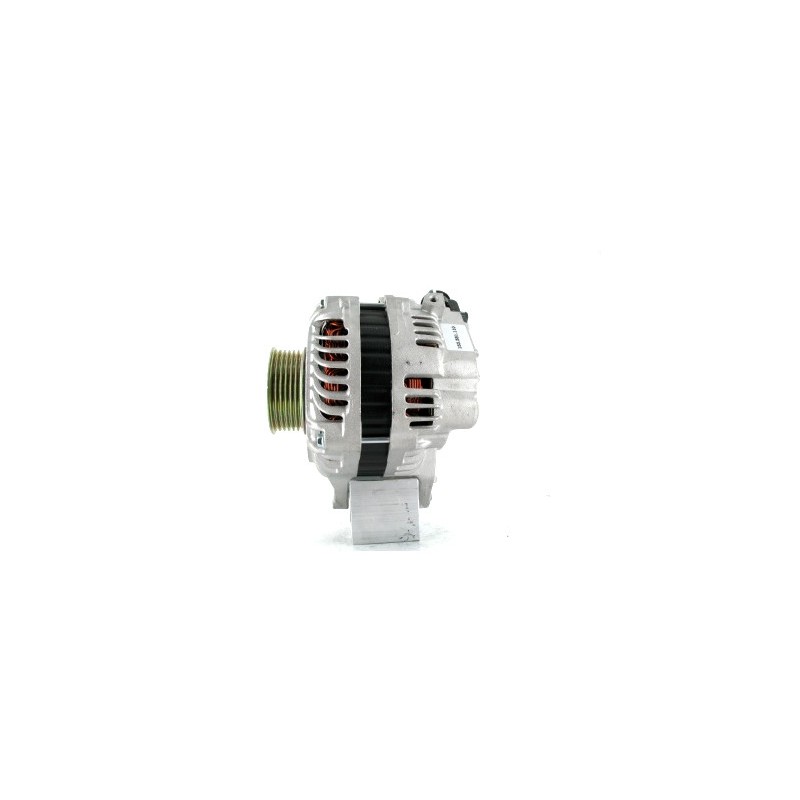

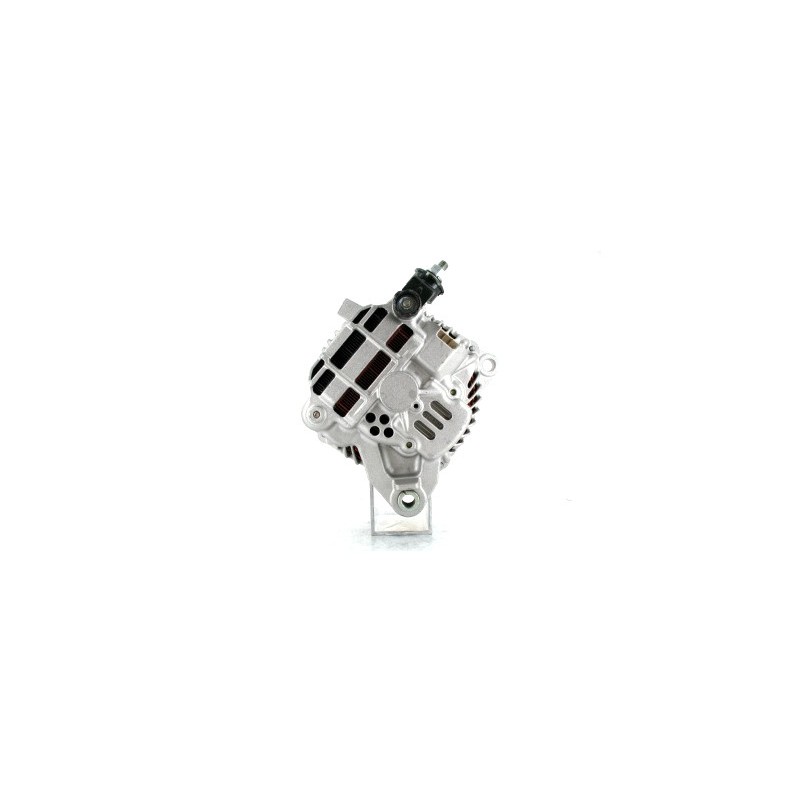

Alternator replacing MN158384 / mn183450 / a3tg3491 / a3tg1192 / A003TG1192

Reference: W113782

Condition: New product

2 Item Items

Alternator NEW replacing MN158384 / MITSUBISHI mn183450 / a3tg3491 / a3tg1192 / A003TG1192 / A003TG1191 / 1800a064

= DRA0711 / 11055N / J5115082 / KTR311100220

fitsOutlander / Lancer 2.4 essence

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

More info

More info

Information:

Electrical Information
Voltage		14
Amp		110

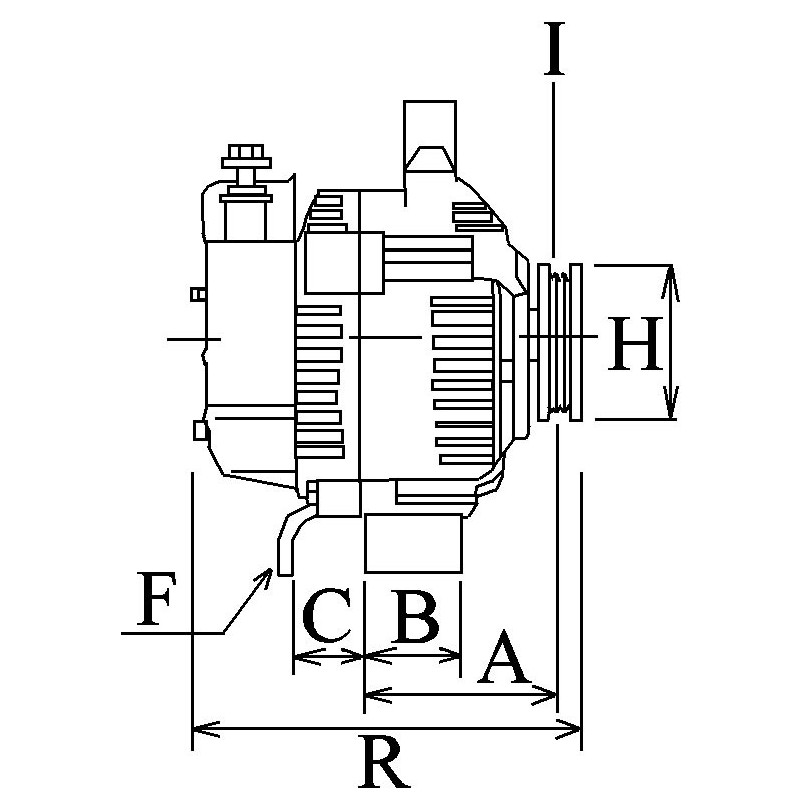

Physical Information
D	Bracket hole	10.30
G	Belt. adj. bracket hole	10.50
B	Width/holder arm	13.00
E	Belt. adj. brackethole pos.	47
C	Mount. bracket dist	53.50
H	Pulley dia.	72.00
A	Pulley dist.	38.00
i	Grooves/pulley	6
j	Radius	83.00
j	Radius 2	87.00
k	Position B +	M8

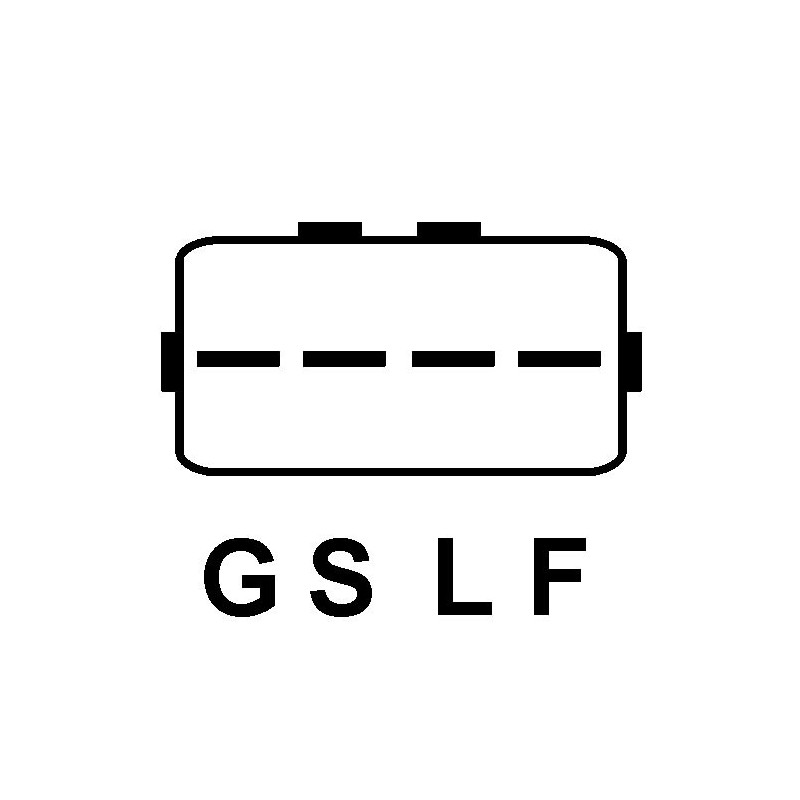

o	Plug no. 1	PL68
R	Total length mm	162.00

Replacing
1800a064	MITSUBISHI
A003TG1191	MITSUBISHI
A003TG1192	MITSUBISHI
A3TG1191	MITSUBISHI
a3tg1192	MITSUBISHI
a3tg3491	MITSUBISHI
MN158384	MITSUBISHI
MN158384	VALEO
mn183450	MITSUBISHI

generic brand

Mounted on :

Outlanfromr	Outlanfromr	2.4	Unleaded	2003 05	-	4G64(SOHC16V)		102	139	SUV	4WD	2351	4
Outlanfromr	Outlanfromr	2.4	Unleaded	2003 05	-	4G69		119	162	SUV	4WD	2378	4

Lancer	Lancer	2.4	Unleaded	2004 01	-	0	0		Ralliart	2400	L4
Lancer	Lancer	2.4	Unleaded	2004 01	-	0	0		Sportback	2400	L4

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
