Alternator replacing MITSUBISHI A002TX1981 / A002TX1981ZT / A2TX1981 / A2TX1981ZT

Display all pictures

Alternator replacing MITSUBISHI A002TX1981 / A002TX1981ZT / A2TX1981 / A2TX1981ZT

Reference: W116033

Condition: New product

1 Item Items

Alternator NEW replacing MITSUBISHI A002TX1981 / A002TX1981ZT / A2TX1981 / A2TX1981ZT

= NISSAN 23100-3HD1A / 23100-3HD1B / 23100-3VS5MDRA1064 / LRA03948 / TWA TNA136 / Elstock 287558

fits Micra 1.2 essence engine HR12DDR

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

More info

More info

Electrical Information
Voltage		14
Amp		150

Physical Information
D	Bracket hole	8.50
G	Belt. adj. bracket hole	8.50
B	Width/holder arm	13.00
E	Belt. adj. brackethole pos.	52
C	Mount. bracket dist	59.00
H	Pulley dia.	54.90
A	Pulley dist.	33.00
i	Grooves/pulley	6
j	Radius	85.00
j	Radius 2	85.00
k	Position B +	M8
n	Rotation	CW

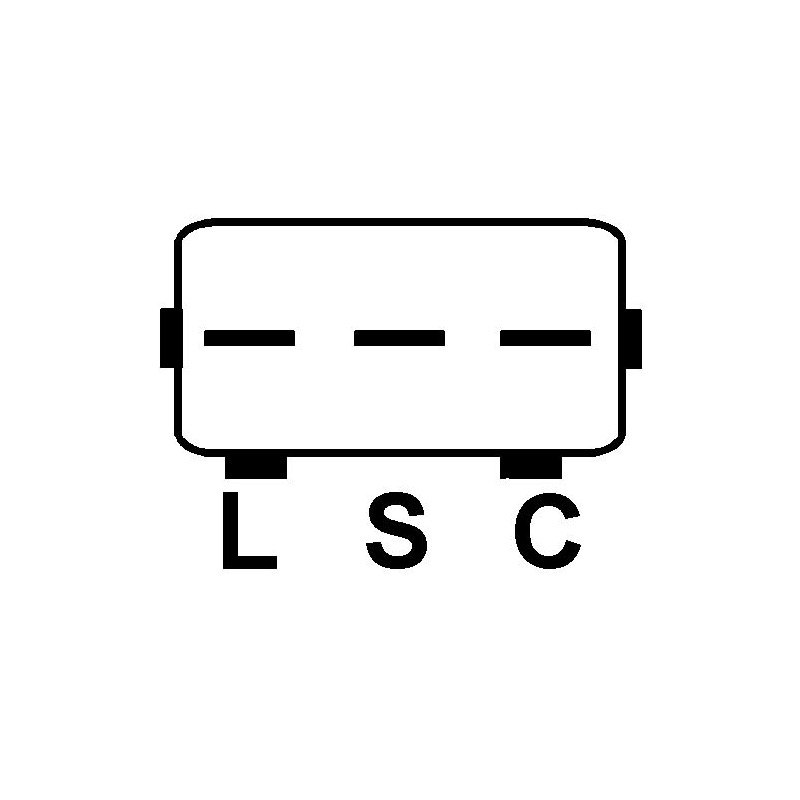

o	Plug no. 1	PL163
R	Total length mm	192.00

Replacing
23100-3HD1A	NISSAN
A002TX1981	MITSUBISHI
A002TX1981ZT	MITSUBISHI
A2TX1981	MITSUBISHI
A2TX1981ZT	MITSUBISHI

Mounted on :

Micra	Micra	1.2	Unleaded	2011 04	-	HR12DDR		72	98	Hayon		1198	3	K13

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
