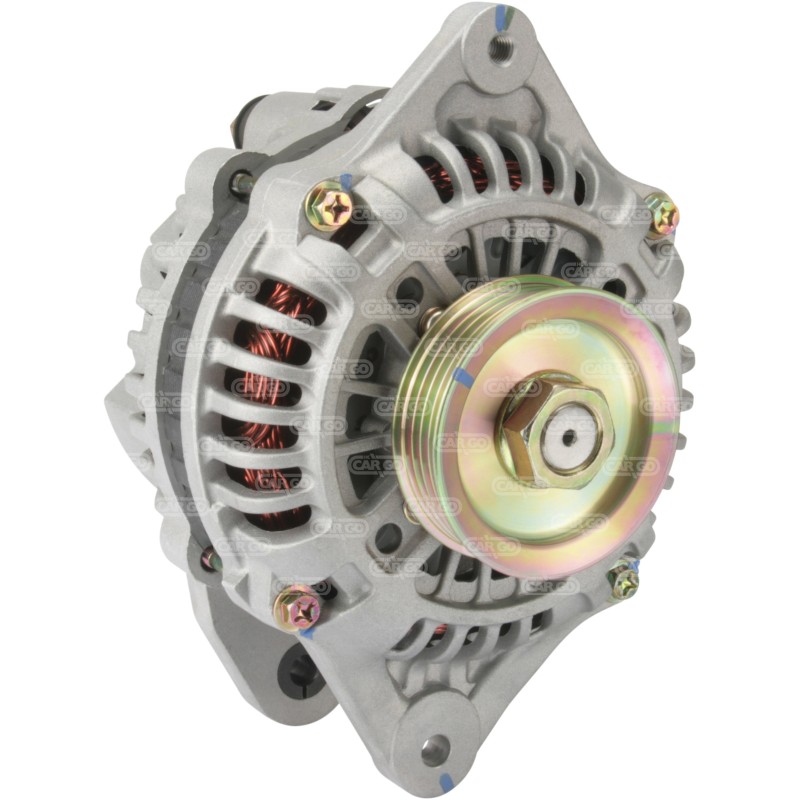

Alternator replacing MITSUBISHI A5T05091 / A2T09493 / A2T09292

Information:

Voltage 14

Amp 75

D = Bracket hole M8

G = Belt. adj. bracket hole 8.00

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 55.00

H = Pulley dia. 65.00

A = Pulley dist. 38.15

Grooves/pulley 4

J = Radius 88.80

J = Radius 84.00

Position B + M6

Rotation Cr

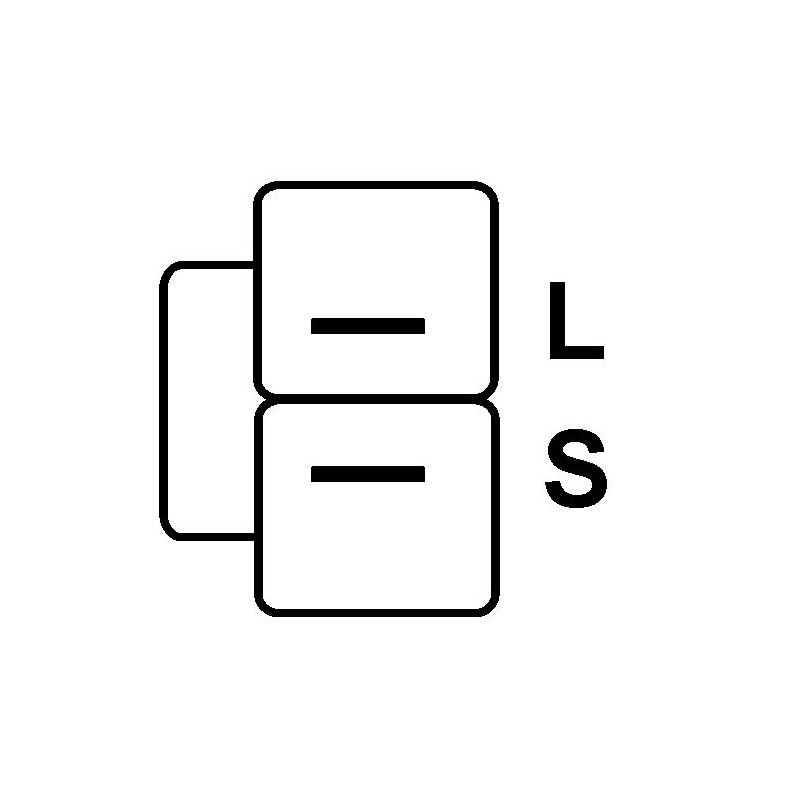

Plug no. 1 PL07

Fan If

Pulley Serpentine Pulley

R = Total length mm 156.30

= BOSCH 0986038211 / 0986045941

CHRYSLER MD102084, MD106713, MD114620, MD125569, R114620M,
HYUNDAI 00228-10100, 00228-Y0200, 37300-24510, 37300-24511, 37300-32510, 37300-32511, 37300-32520, 37300-32530,
MANDO AB175002, AB175015, AB175051, AB175053, AR175AA,
MAGNETI MARELLI 943346134010, 944390515330,
MITSUBISHI A002T09493, A002T14792, A002T14792ZC, A002T49972, A002T49977, A002T49992,
MITSUBISHI Motors 3730024510, 3730024511, MD102084, MD106713, MD114620, MD125569,
MITSUBISHI Sales A2T09493, A2T14792, A2T14792ZC, A2T49972, A2T49977, A2T49992,
VALEO TA000A13201, TA000A15101

= HELLA 8EL730072001 / 8EL737325001

= LUCAS A8520

= DELCO REMY 10463728 / DRA3143 / DRA3687

= Kia 37300-22511 / 37300-24510 / 37300-24511

= FAE 4487

= VALEO ab175015 / ab175053 / M36881 / TA000A15101

Mounted on :

CHRYSLER (1987-1989)
DODGE (1987-1995)
Eagle (1988-1994)
HYUNDAI (1989-1994)
HYUNDAI - Europe (1990-1995)
MITSUBISHI (1987-1994)
MITSUBISHI - Europe (1985-1996)
PLYMOUTH (1987-1995)
Proton - Europe (2000-2010)

NO CORE EXCHANGE NEEDED

Two Years Warranty
