Alternator replacing FORD 1S7T10300CC / 1S7T10300CB / 1S7T10300CF

Information:

Voltage 14

Amp 105

D =Bracket hole 10.10

G =Belt. adj. bracket hole 10.15

B =Width/holder arm 55.00

C =Mount. bracket dist 74.00

H =Pulley dia. 53.00

A =Pulley dist. 41.00

Grooves/pulley 6

Position B + M6

Rotation Cr

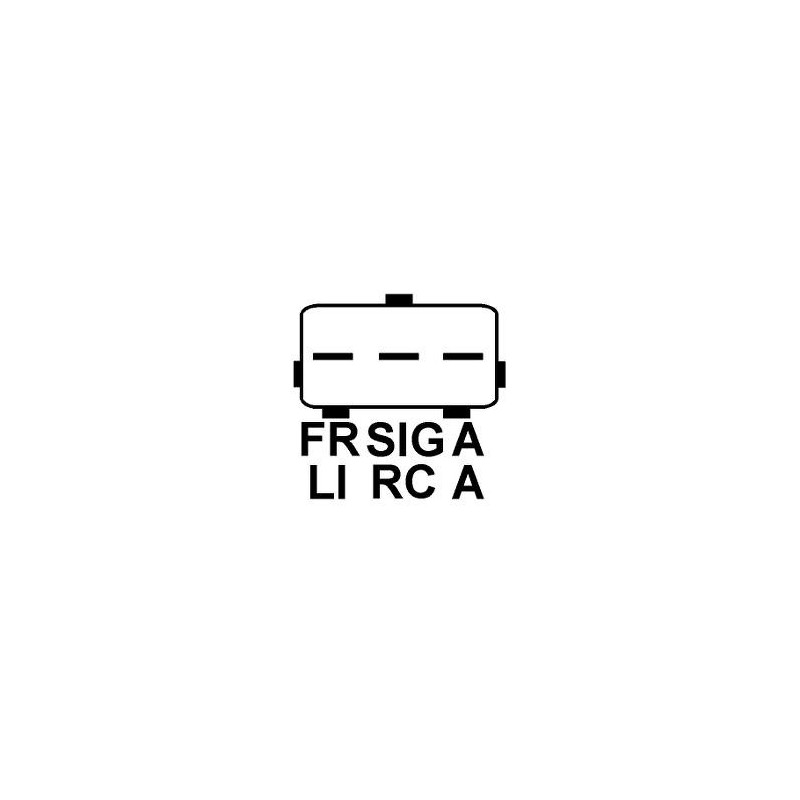

Plug no. 1 PL57

D =Bracket hole 13.00

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

R =Total length mm 153.00

brand / wai

= BOSCH 0986049520

= DELCO REMY DRA4143N

= FORD 1S7T10300CC / 1S7T10300CB / 1S7T10300CF / 1S7T10300CE / 1S7T10300CD
1S7T10300CC / 1S7T10300CB / 1S7T10300CA

= LUCAS LRA01150

= MAGNETI MARELLI 063380004010 / 63380004 / MAN8004

= VISTEON 20-150-01004

                     NO CORE EXCHANGE NEEDED

                                  TWO YEARS WARRANTY
