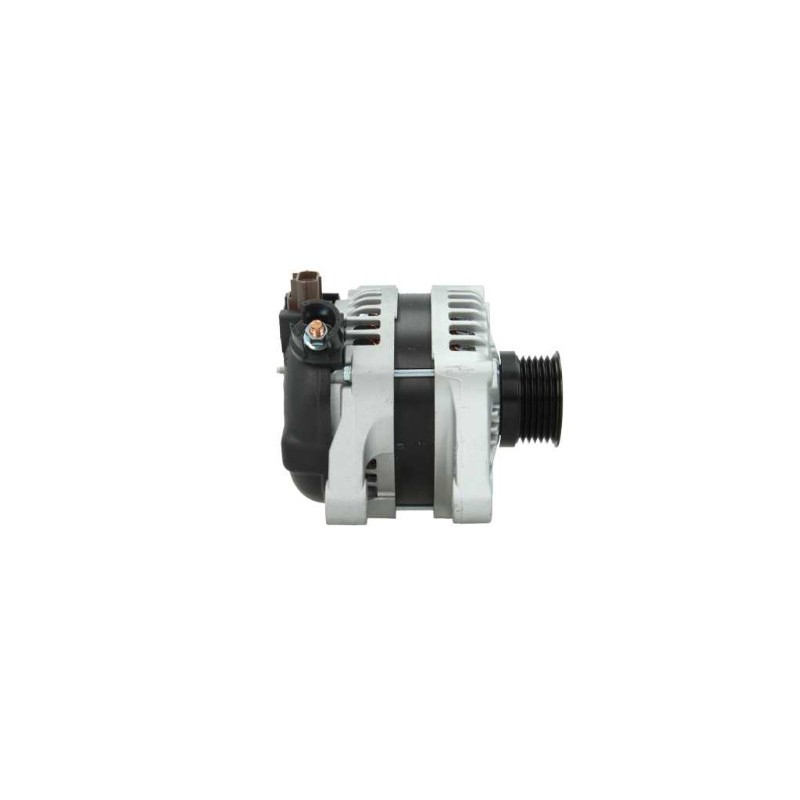

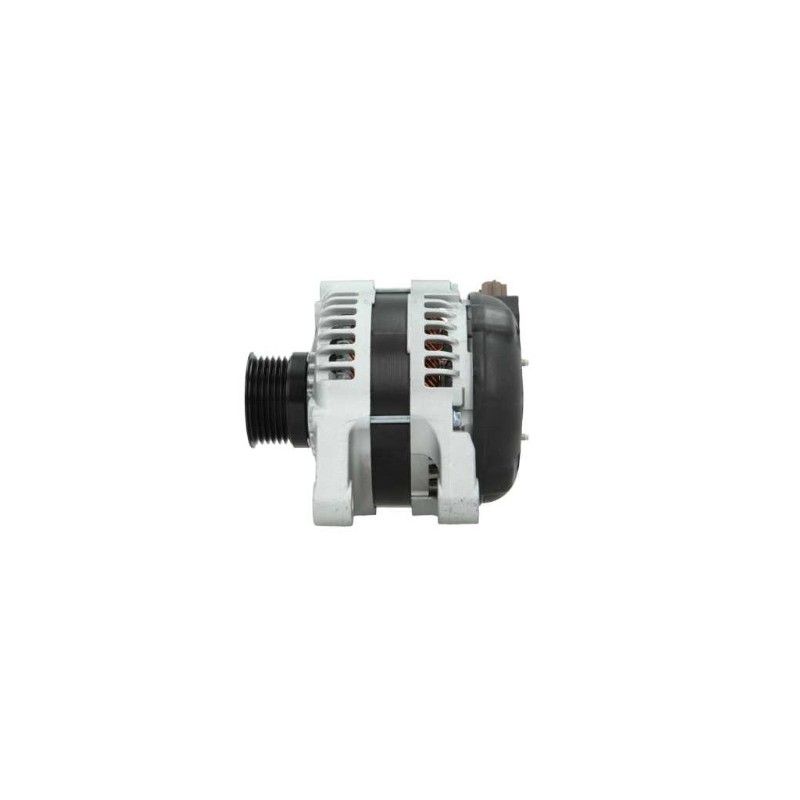

Alternator replacing DENSO 104210-3521 / 104210-3522 / 10210-3523 / FORD 3M5T10300YC
Alternator replacing DENSO 104210-3521 / 104210-3522 / 10210-3523 / FORD 3M5T10300YC
= 0986049070 / 0986049071 / 3M5T10300YD / 3M5T10300YE / 3M5T10300YA
le modèle en DENSO origine under the reference w113849
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 21.00 |
| E | Belt. adj. brackethole pos. | 47 |
| C | Mount. bracket dist | 45.00 |
| H | Pulley dia. | 54.50 |
| A | Pulley dist. | 42.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |

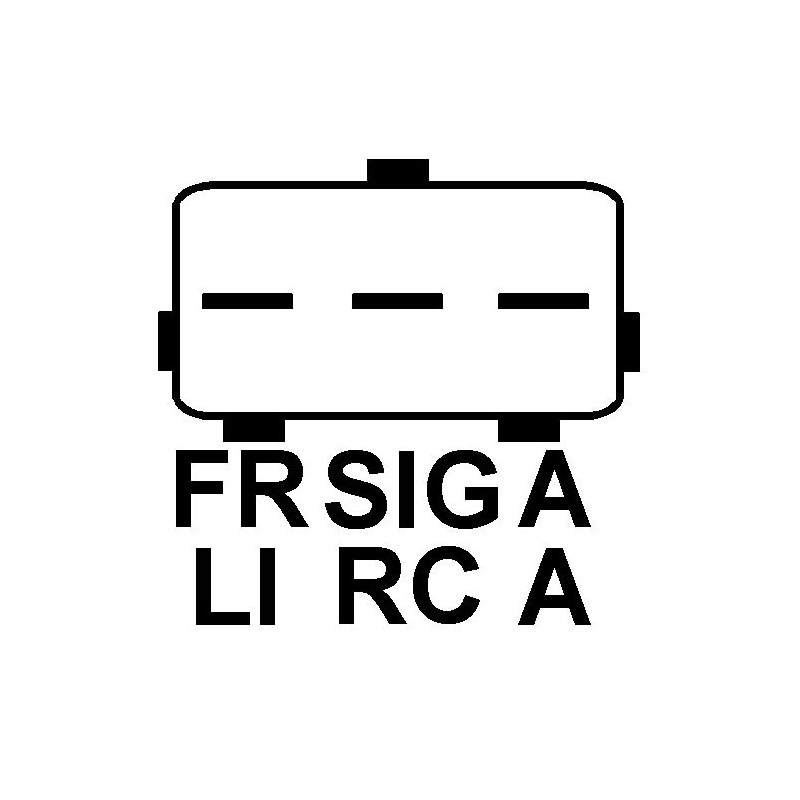

| o | Plug no. 1 | PL57 |
| G | Belt. adj. bracket hole 2 2 | (M10) |
| R | Total length mm | 168.00 |
Generic Brand
Replacing :
| 063377416010 |
| 0986049070 |
| 0986049071 |
| 1042102710 |
| 1042102710CO |
| 1042102710SP |
| 1042103520 |
| 1042103520+ |
| 1042103520CO |
| 1042103520OR+ |
| 1042103520ORZP |
| 1042103521 |
| 1042103521CO |
| 1042103522 |
| 1042103522CO |
| 1042103522R |
| 1042103522SP |
| 1042103523 |
| 1042103523CO |
| 1042103523SP |
| 1042103524 |
| 1042103524CO |
| 1042105710 |
| 1042105711 |
| 1042105711CO |
| 1042105711SP |
| 1229259 |
| 1255711 |
| 1477738 |
| 1676843 |
| 1704085 |
| 1708322 |
| 1748630 |
| 20201001 |
| 23821 |
| 23821N |
| 274933 |
| 2905429 |
| 30667068 |
| 30795423 |
| 31255595 |
| 31285593 |
| 31285595 |
| 31288155 |
| 36000599 |
| 36002577 |
| 36050997 |
| 38667068 |
| 3M5T10300YA |
| 3M5T10300YB |
| 3M5T10300YC |
| 3M5T10300YD |
| 3M5T10300YE |
| 595545150 |
| 595545150050 |
| 595545150051 |
| 595545150054 |
| 595545150055 |
| 595545150260 |
| 595545150260001 |
| 595545150260003 |
| 595545150260004 |
| 595545150260005 |
| 595545150260006 |
| 595545150260007 |
| 595545150260008 |
| 595545150260101 |
| 595545150260102 |
| 595545150260103 |
| 595545150260104 |
| 595545150261 |
| 595545150265 |
| 595545150415 |
| 595545150550 |
| 595545150750 |
| 6276SP |
| 63377416 |
| 8603183 |
| 8EL011711801 |
| 8EL738211331 |
| 8M5T10300YA |
| 8M5T10300YB |
| 9090434F |
| 934239 |
| ALT6046sa |
| CA1834IR |
| DAN1118 |
| DAN930 |
| DRA4239 |
| HCA1834IR |
| KTR1191090300 |
| LRA02815 |
| MAN7416 |
| N5113069 |
| OAN11355 |
| TRA155 |
Generic brand
Mounted on :
| FORD | C-MAX | 1.6 TDCi | 02/07 |
| FORD | C-MAX | 2.0 TDCi | 02/07 |
| FORD | Fiesta | 1.6 TDCi | 11/04 |
| FORD | Focus | 1.6 TDCi | 10/03 |
| FORD | Focus | 2.0 TDCi | 10/03 |
| FORD | Fusion | 1.6 TDCi | 11/04 |
| FORD | Kuga | 2.0 TDCi | 03/08 |
| MAZDA | 3 | 1.6 MZR-CD | / |
| MAZDA | 3 | 1.6 Di Turbo | 06/04 |
| VOLVO | C30 | 1.6 D | 10/6 |
| VOLVO | C30 | 2.0 D | 10/6 |
| VOLVO | C70 | 2.0 D | 01/08 |
| VOLVO | S40 | 2.0 D | 01/04 |
| VOLVO | S40 | 1.6 D | 01/05 |
| VOLVO | S40 | 2.0 D4 | 07/05 |
| VOLVO | V50 | 2.0 D | 04/04 |
| VOLVO | V50 | 1.6 D | 01/05 |
