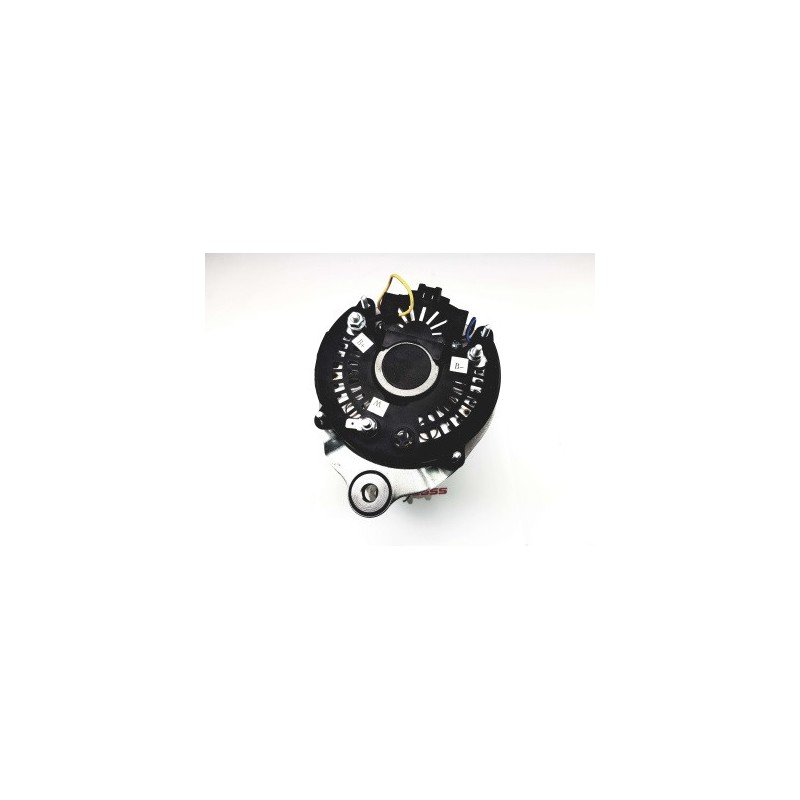

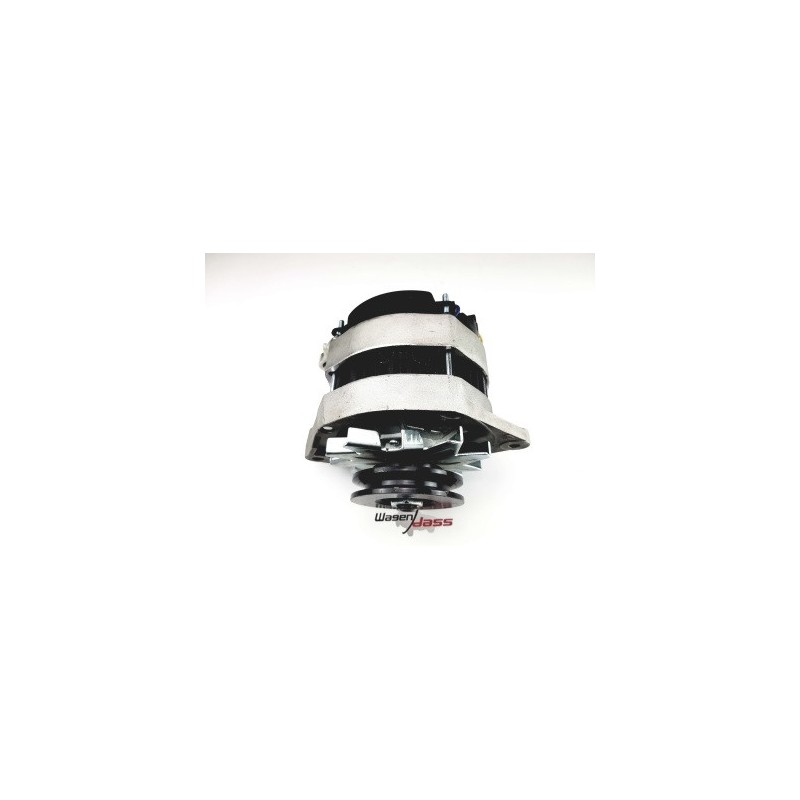

Alternator replacing A14N4 / A14N163 / A14N144 / 432783 / 433449 / 433453

Information:

Voltage 14

Amp 75

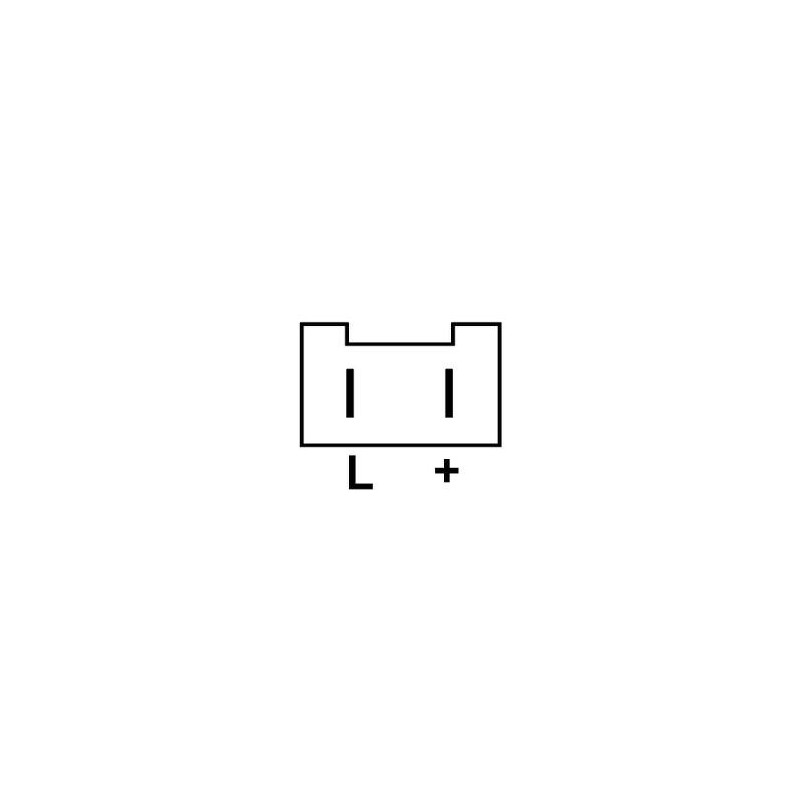

Plug type W

D = Bracket hole 10.25

G = Belt. adj. bracket hole 8.60

B = Width/holder arm 26.90

E = Belt. adj. brackethole pos. 4

C = Mount. bracket dist 69.00

H = Pulley dia. 85.70

A = Pulley dist. 57.90

Grooves/pulley 1

J = Radius 86.00

J = Radius 86.00

Position B + M6

Rotation Cr

Plug no. 1 PL27

Fan Ef

Pulley Pulley

R= Total length mm 186.50

generic brand

= HELLA 8EL725716001

= DELCO REMY DRA4861

= LUCAS LRA00698

= VALEO 2541324 / 2541204 / A14N4 / A14N163 / A14N144

432783 / 433449 / 433453 / 436349 / 436360 / 436453

436460 / A14R25T

= MOTOROLA 9AR2950P

= RENAULT 5000725698 / 5001014178 / 5001014181 / 6006000076 / 7700714313 / 7700731740

 7700748171 / 7701352125 / 7701362052 / 7701381535

= Butec 860140

                                             TWO YEARS WARRANTY

                             NO CORE EXCHANGE NEEDED
