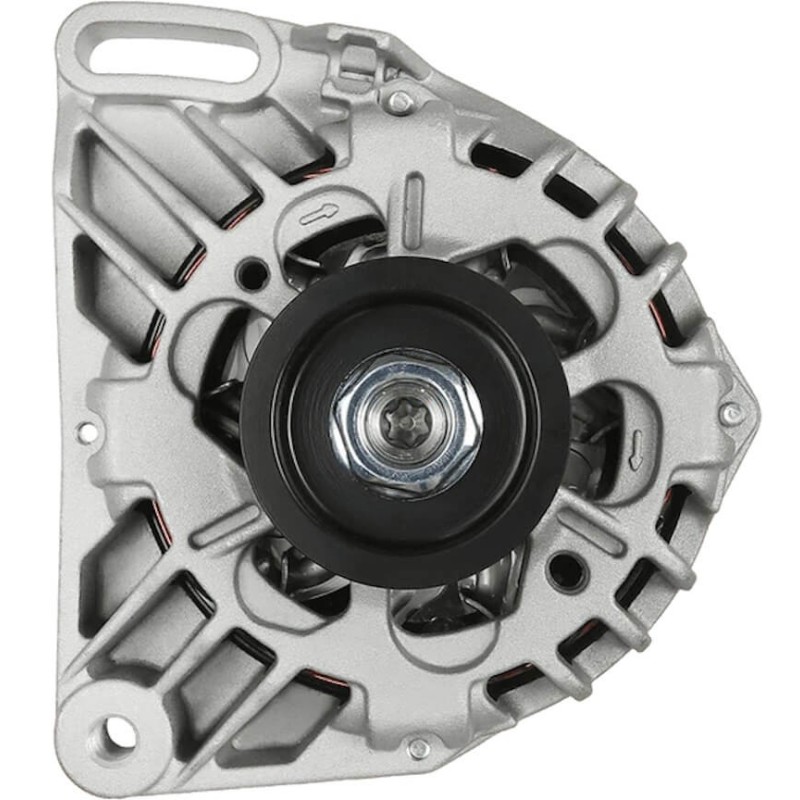

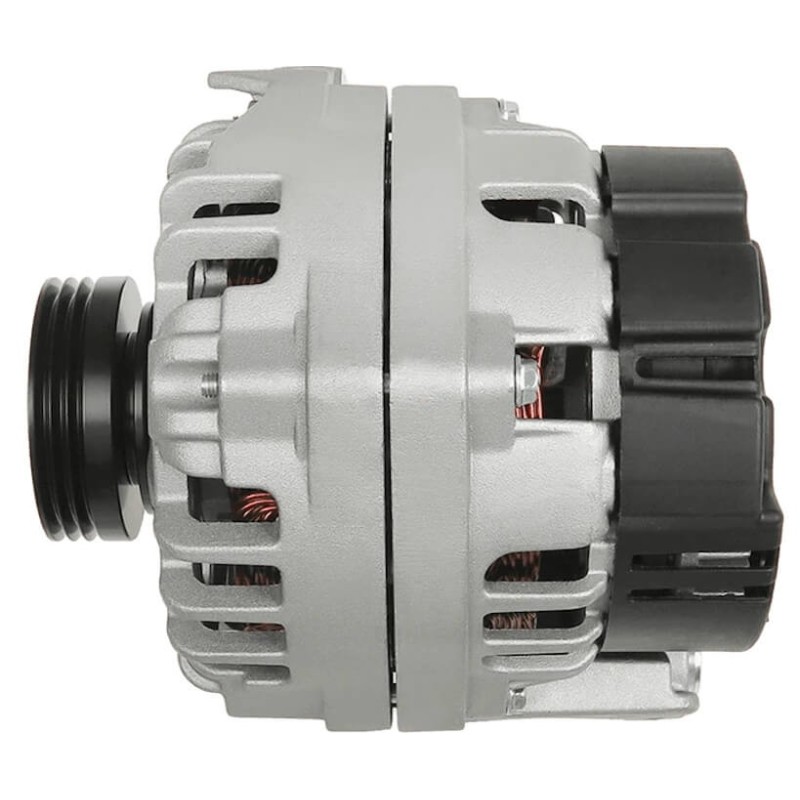

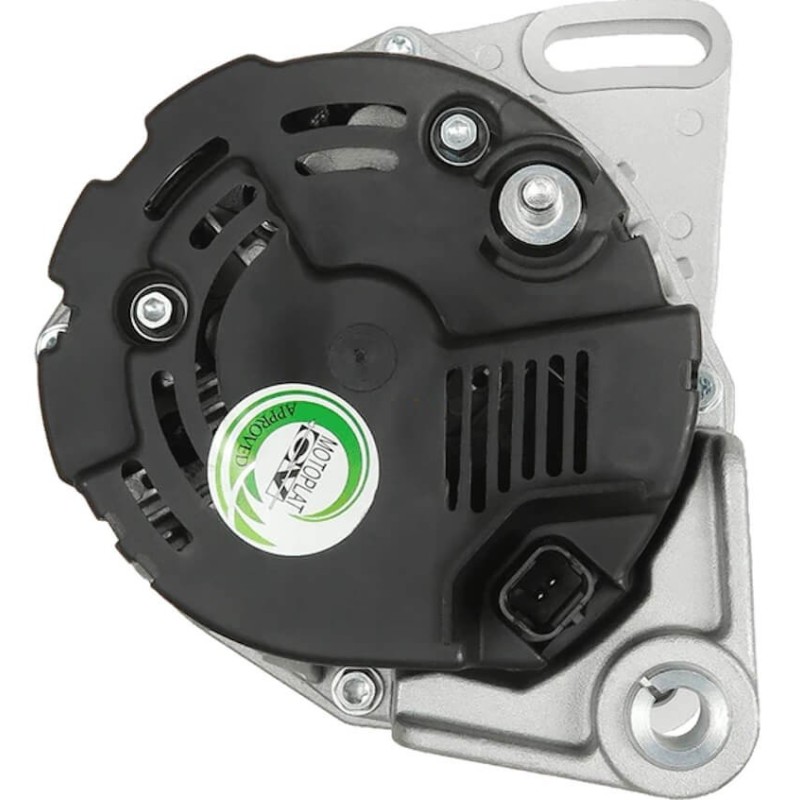

Alternator replacing VALEO SG7S070 / SG7S012 / A11VI110

Information:

Voltage 14

Amp 75

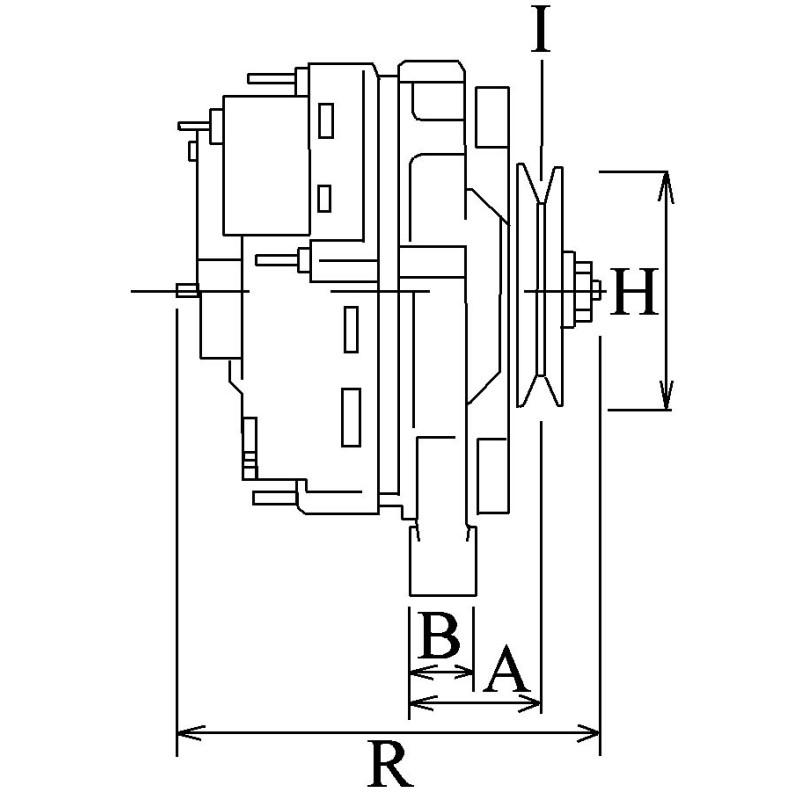

D = Bracket hole M10

G = Belt. adj. bracket hole 9.30

B = Width/holder arm 27.00

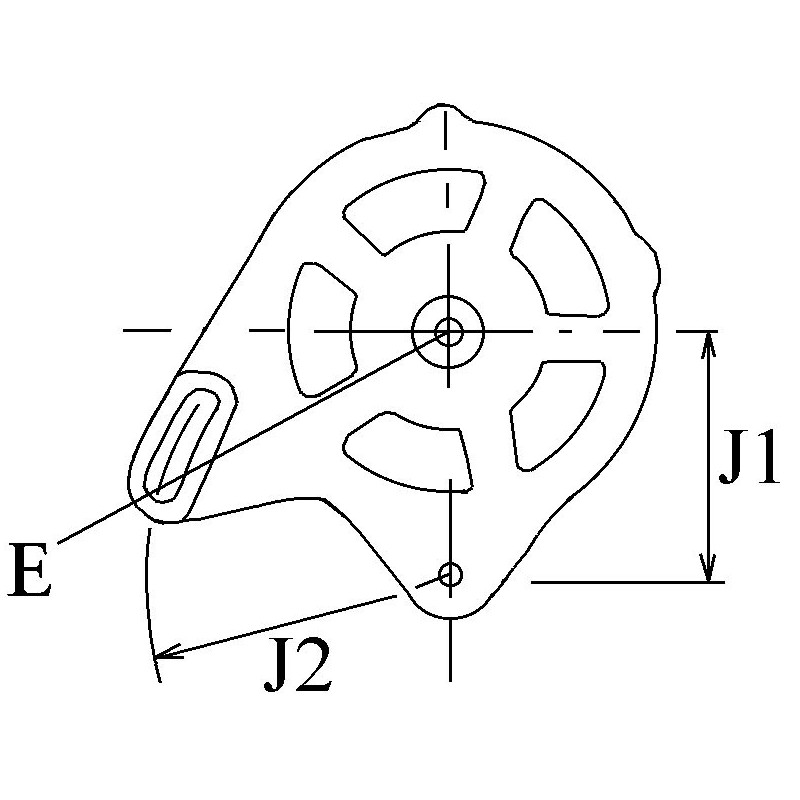

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 66.50

H = Pulley dia. 59.70

A = Pulley dist. 53.50

Grooves/pulley 3

J = Radius 85.00

J = Radius 100.00

Position B + M8

Rotation Cr

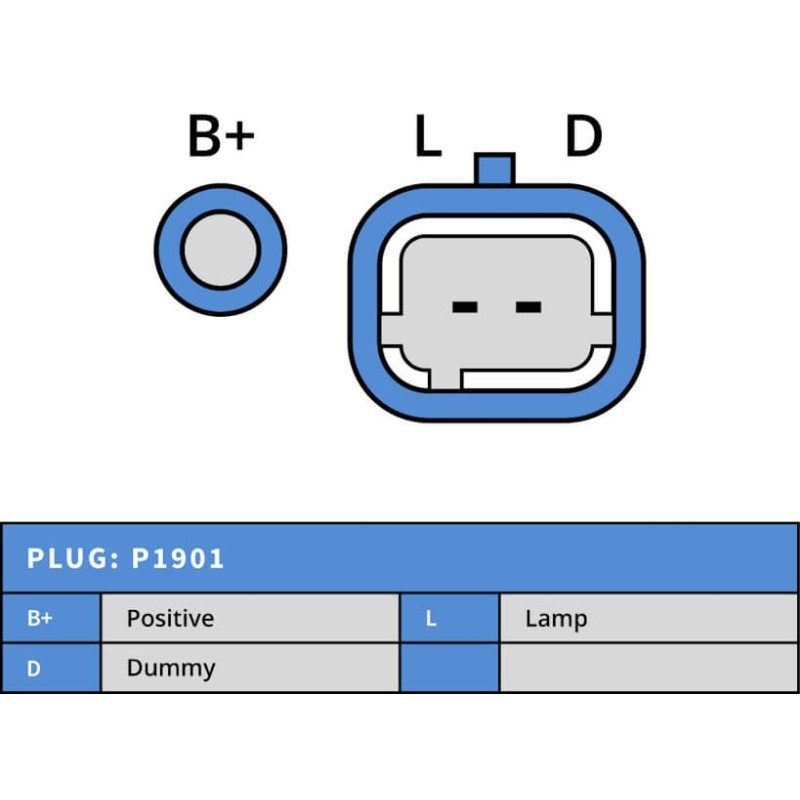

Plug no. 1 PL55

Fan If

Pulley Serpentine Pulley

R = Total length mm 160.00

generic brand

= BOSCH 0986045261

= DELCO REMY DRA3914

= HELLA 8EL737928001

= MITSUBISHI A001TA2293 / A001TA2291

= NISSAN 23100-00Q1H / 23100-00q1c / 23100-00q1d / 23100-00QA0

= RENAULT 8200060816 / 8200064344 / 8200065730 / 8200660045

= VALEO SG7S070 / SG7S012 / A11VI110 / 2543550A / 2543550 / 2542540D 2542540C / 2542540 / 2542464A / 2542464 / 437323 / 437428 / 439429

= 543550 / 5705AT / 575578075 / 6072SP

generic brand

NO CORE EXCHANGE NEEDED

 TWO YEARS WARRANTY
