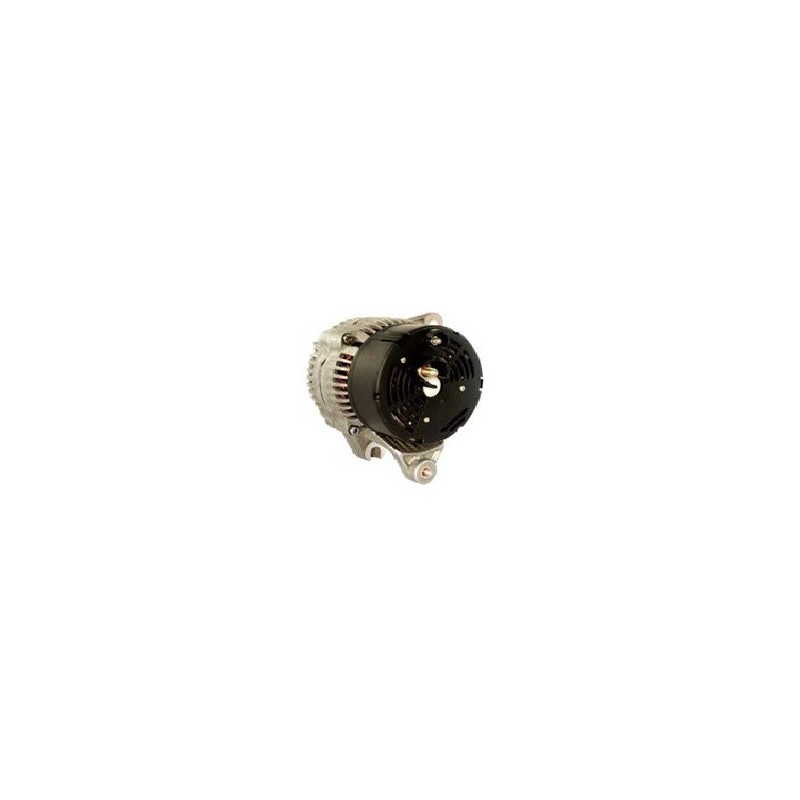

Alternator replacing VALEO A11VI45 / 2541725 / 746016 / 439039 / 436489

Information:

Voltage 14

Amp 70

D = Bracket hole 10.00

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 26.00

E = Belt. adj. brackethole pos. 50

C = Mount. bracket dist 56.00

H = Pulley dia. 56.00

A = Pulley dist. 52.10

Grooves/pulley 5

J = Radius 85.00

J = Radius 96.00

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley

R = Total length mm 173.00

generic brand

= BOSCH 0986040201

= CITROEN 5705L1 / 5705-L1 / 5705N1 / 5705HV / 5701-A5 / 5705-HV / 5705-N1 / 5701A5

= DELCO REMY DRB0201

= HELLA 8EL732-710-001 / 8EL 732 710-001 / CA1038IR

= LUCAS LEA0463 / LRB00186 / LRB186

= MAGNETI MARELLI 943356946010 / 944390402010 / 943356946

= PRESTOLITE 20110438

= PEUGEOT 9620332580 / 5705-HV / 5705L1/ 5705-L1 / 5705-N0 / 5705N0 / 5705HV

= VALEO A11VI45 / 2541725 / 746016 / 439039 / 436489 / 2541725a / 2541725b / 2541725h

                                        TWO YEARS WARRANTY

                            NO CORE EXCHANGE NEEDED
