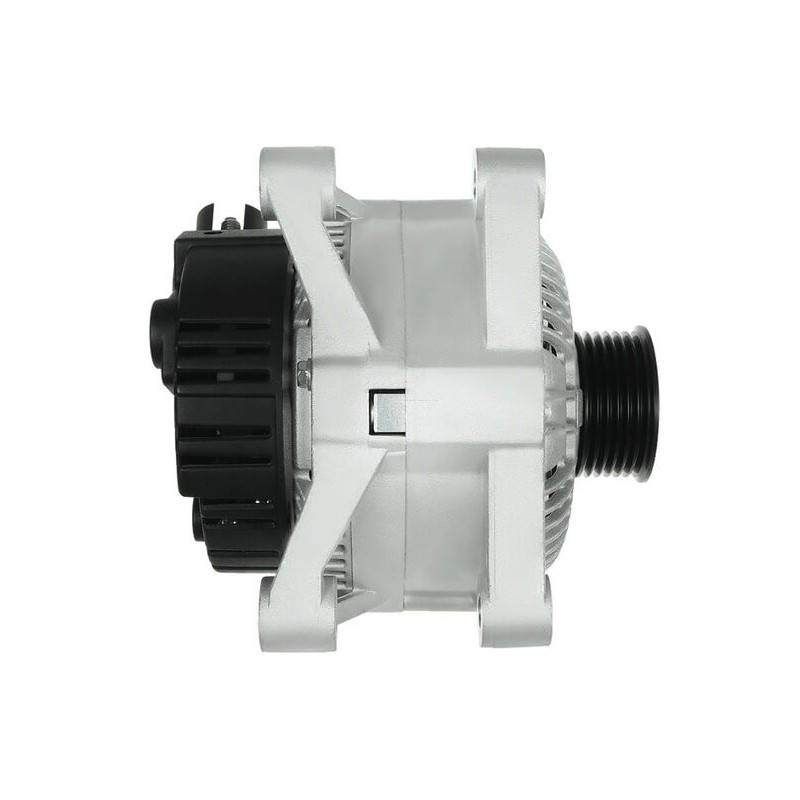

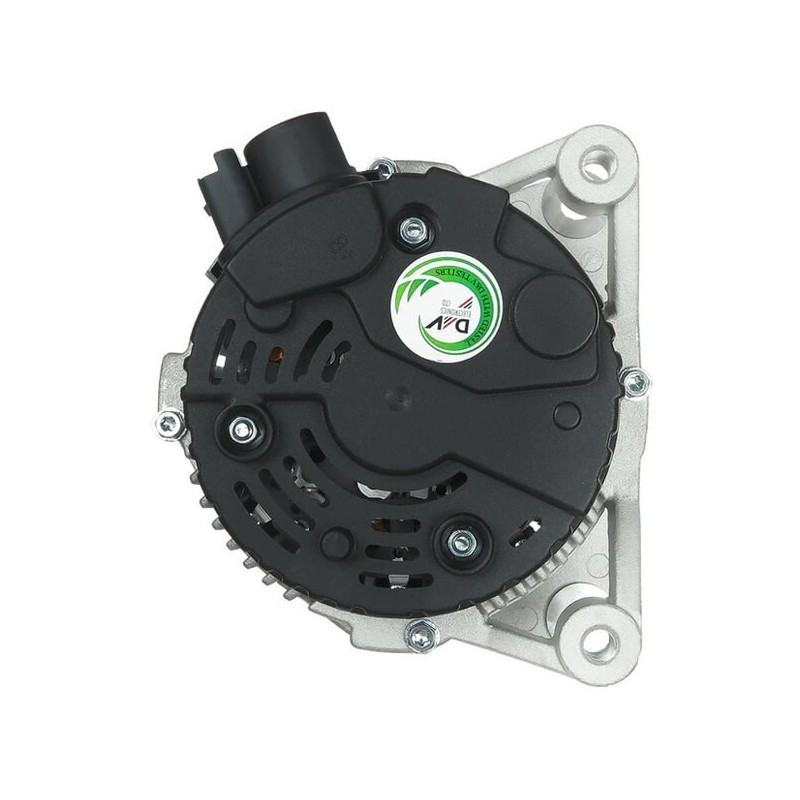

Alternator replacing VALEO TG9B028 / SG10B022 / A13VI277
Replaces | |
|---|---|
| 11.203.710 | Iskra |
| 2542297 | Valeo |
| 2542297 | Motorola |
| 2542297A | Valeo |
| 2542297B | Valeo |
| 2542397 | Valeo |
| 2542397 | Motorola |
| 2542397B | Valeo |
| 2542490 | Valeo |
| 2542490A | Valeo |
| 2543215 | Valeo |
| 2543215A | Valeo |
| 27060-YV010 | Toyota |
| 9636204680 | Peugeot |
| 9638275480 | Fiat |
More info
Information:
Voltage 14
Amp 90
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 22.20 |
| E | Belt. adj. brackethole pos. | 45 |
| C | Mount. bracket dist | 45.60 |
| H | Pulley dia. | 54.50 |
| A | Pulley dist. | 42.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |

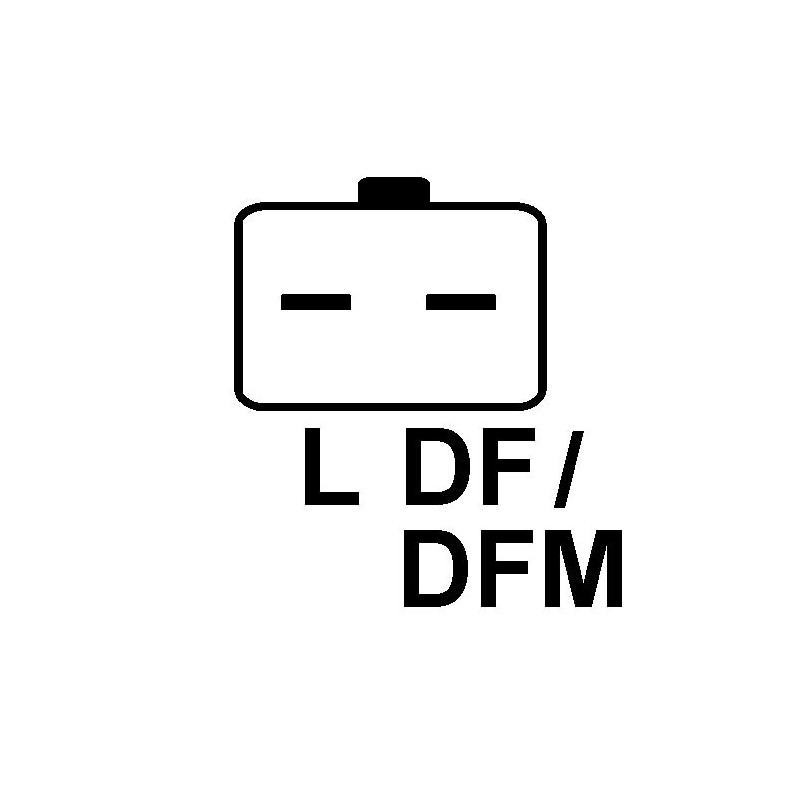

| o | Plug no. 1 | PL72 |
| R | Total length mm | 180.00 |
brand cargo Bosch
Replacing | |
|---|---|
| 11.203.710 | Iskra |
| 2542297 | Valeo |
| 2542297 | Motorola |
| 2542297A | Valeo |
| 2542297B | Valeo |
| 2542397 | Valeo |
| 2542397 | Motorola |
| 2542397B | Valeo |
| 2542490 | Valeo |
| 2542490A | Valeo |
| 2543215 | Valeo |
| 2543215A | Valeo |
| 27060-YV010 | Toyota |
| 9636204680 | Peugeot |
| 9638275480 | Fiat |
| 9638275780 | Peugeot |
| 9642880180 | Peugeot |
| 9656003780 | Peugeot |
| A13VI242 | Valeo |
| A13VI277 | Valeo |
| CA1589IR | HC-PARTS |
| K9638275480 | Fiat |
| SG10B022 | Valeo |
| TG9B028 | Valeo |
| TG9B050 | Valeo |
| TG9B051 | Valeo |
| AAK5741 | Iskra |
