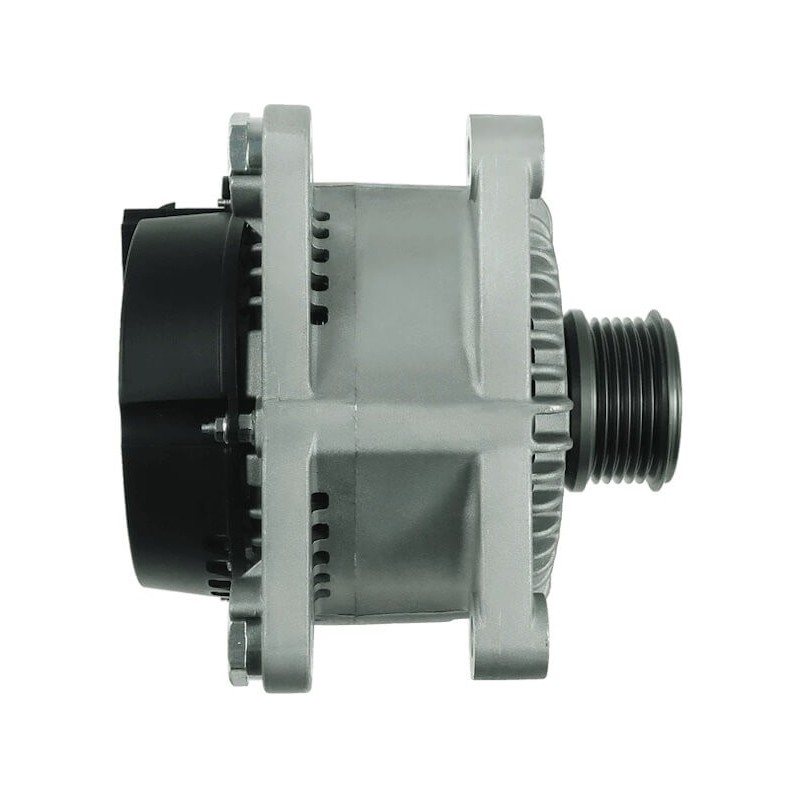

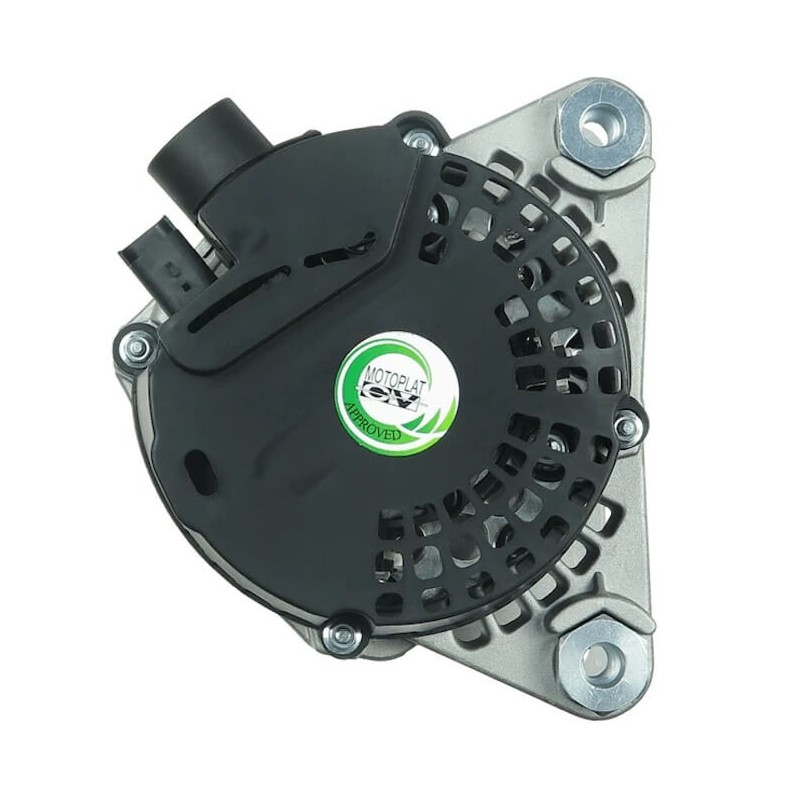

Alternator replacing 101210-1720 / 101210-1721 / 1608066080 / 9606007480

Display all pictures

Alternator replacing 101210-1720 / 101210-1721 / 1608066080 / 9606007480

Reference: w116357

Condition: New product

1 Item Items

New alternator replacing DENSO101210-1720 / 101210-1721 / DAN1071

BOSCH 0986083390 / DELCO REMY DRA1104 / LRA03848 / PSA 1608066080 / 9606007480 / 9688237380 / 9806007480

This Alternator has a COM terminal on the regulator, It is recommended that the OEM number is used to check suitability before ordering

NO CORE EXCHANGE NEEDED

More info

More info

Physical information
A	Pulley dist.	42.40
B	Width/holder arm	21.00
C	Mount. bracket dist.	45.80
D	Bracket hole	10.50
E	Belt. adj. brackethole pos.	45
G	Belt. adj. bracket hole	10.50
H	Pulley dia.	54.00
J	Radius	90.00
J	Radius 2	90.00
K	B+ position	M8
K	Position/B+ in min.	60
N	Rotation	CW
O	Plug no. 1	PL132
R	Total length mm

Electrical information
	Voltage	14
	Amp	80

generic brand

replacing

0986083390	BOSCH ruil
1012101720	DENSO
1012101721	DENSO
115546	Cargo
116357	Cargo
12090697	EuroTec
1608066080	PSA
1610048280	PSA
225564090	PSH
286958	Elstock
440691	VALEO
4415	CEVAM
57442	EAI
63377566010	MAGNETI MARELLI
931104	EDR
9606007480	PSA
9688237380	PSA
9806007480	PSA
DAN1071	DENSO
DRA1104	DELCO REMY
LRA03848	LUCAS
