Alternator replacing BOSCH 0120489760 / 0120489759 / 0120489735

Information:

Voltage 14

Amp 55

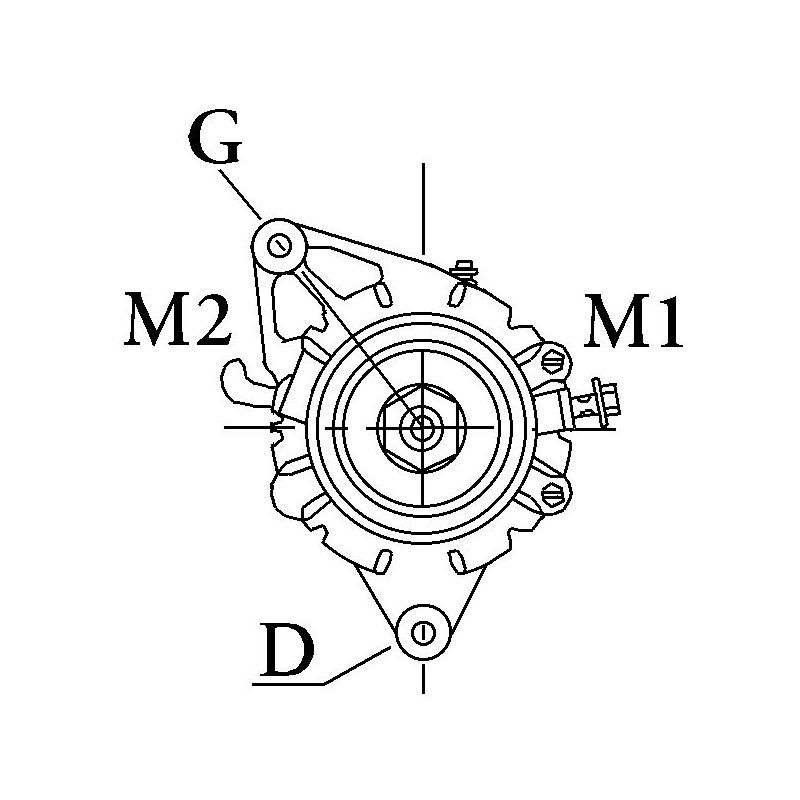

D = Bracket hole 8.25

G = Belt. adj. bracket hole 8.25

B = Width/holder arm 56.00

E = Belt. adj. brackethole pos. 50

H = Pulley dia. 69.00

A = Pulley dist. 77.64

Grooves/pulley 1

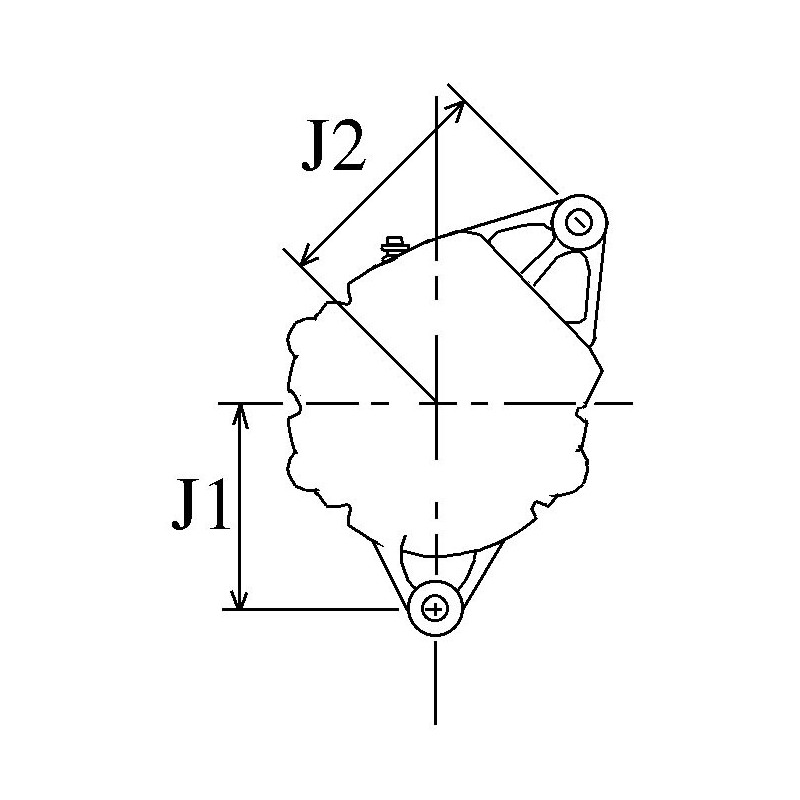

J = Radius 85.50

J = Radius 79.00

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

R = Total length mm 171.00

= BOSCH  0120489657 / 0120489655 / 0120489759 / 0120489735 / 0120489654 / 0986031210

0120489653 / 0120489659 / 0120489760 / 0120489651

= DELCO REMY DRA1040

= DRI 200109552

= ISKRA / LETRIKA AAK1137

= LUCAS LRA00296

= MAGNETI MARELLI 63305721 / 63305722

= MOTOROLA 9AR2588 / 9AR2588K / 9ar2596k / 9ar2621l / 9AR2638 / 9ar2638p / 9AR2780  / 9ar2780k

= VAG 046903017AX / 046903017A / 049903015C / 046903015A / 049903023B / 049903015T / 049903015AF / 035903015

= VALEO 9AR2596 / 9AR2621

                 NO CORE EXCHANGE NEEDED

                                         TWO YEARS WARRANTY
