w114859

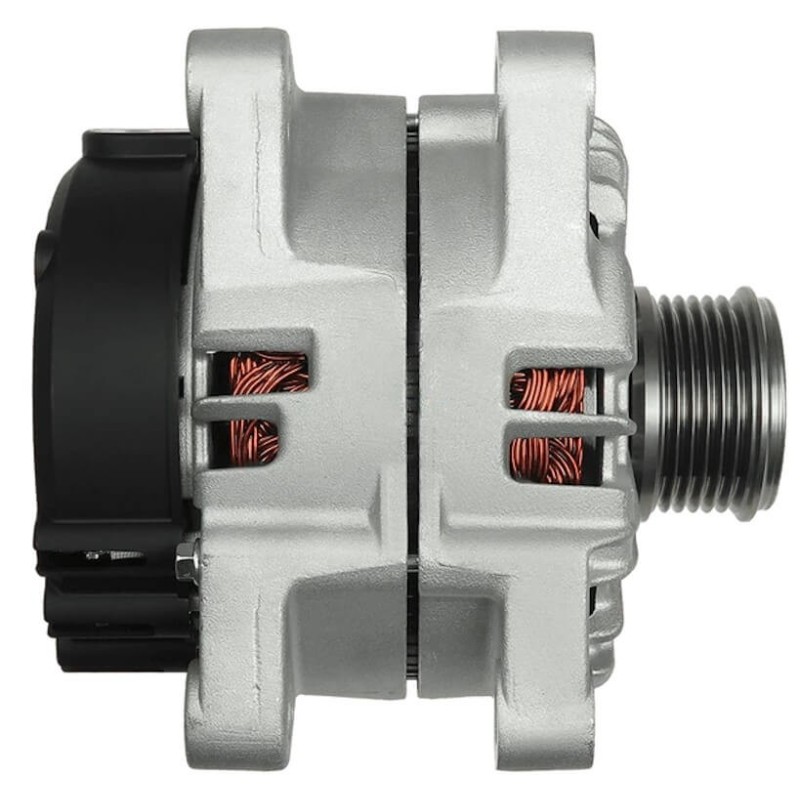

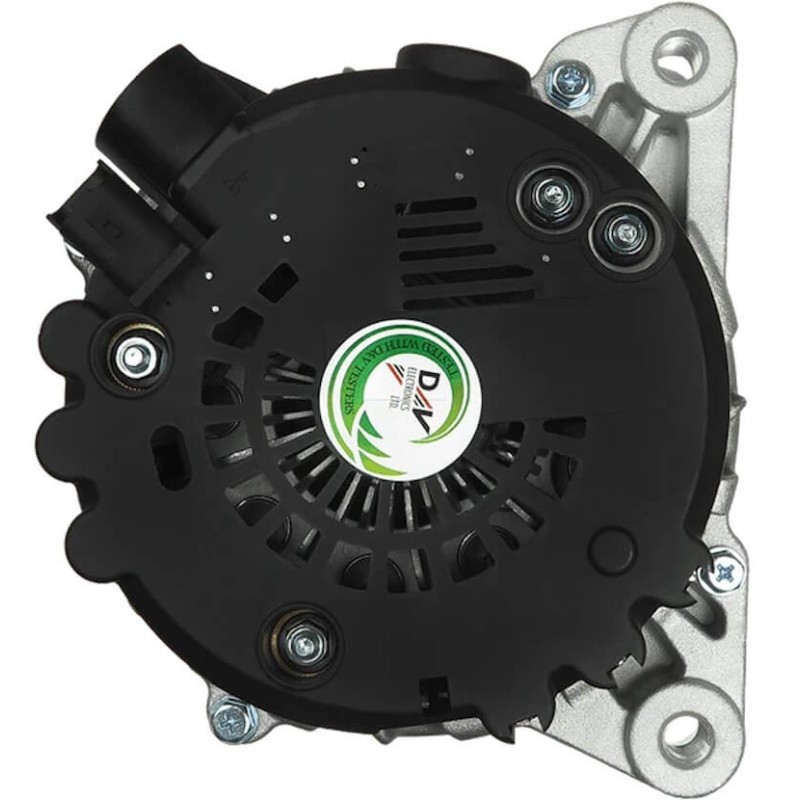

Alternator NEW replacing VALEO 2543457 / 2543457A / 2607732

= 0986080660 / DRA0142 / LRA02857

= A004TJ0081C / A004TJ0084 / A004TJ0084A / A004TJ0084B / A4TJ0081A

= PEUGEOT 9646065180 / 9646388280 / 96547528 / 9654752880

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

Read more
€219.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Electrical Information
Voltage 14
Amp 180
Physical Information
D Bracket hole 10.50
G Belt. adj. bracket hole 10.50
B Width/holder arm 21.00
E Belt. adj. brackethole pos. 47
C Mount. bracket dist 45.00
H Pulley dia. 54.50
A Pulley dist. 42.50
i Grooves/pulley 6
j Radius 90.00
j Radius 2 90.00
k Position B + M8
n Rotation CW

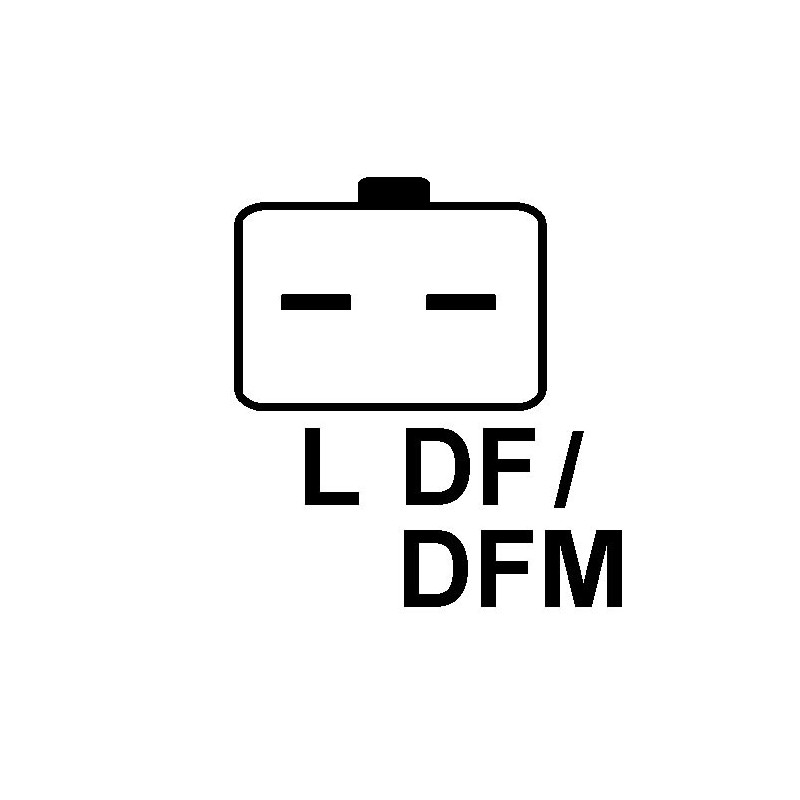

o Plug no. 1 PL72

generic brand

replacing

0986080660 BOSCH CAL35188 CASCO
114859 CARGO CAL35188AS CASCO
20137881OE REAL CAL35188ES CASCO
2015079.1 SANDO CAL35188GS CASCO
2035188 SANDO CAL35188OS CASCO
210520 ERA CAL35188RS CASCO
225.533.180 PSH DRA0142 DELCO
2543457 VALEO FG18S017 VALEO
2543457A VALEO FG18S048 VALEO
28-4973 ELSTOCK LRA02857 LUCAS
301920RIV KUHNER LRA2857 LUCAS
439620 VALEO RNLFG18S017 RNL
439698 VALEO UD02343A AS-PL
440177 VALEO UD17215A AS-PL
440288 VALEO ALT0118 ELECTROLOG
4704 CEVAM 442083 LOGISTIK
56547528ON80 CITROEN A12VA0124A2 SIDAT
5702F4 PEUGEOT 5702-E7 PEUGEOT
5702G2 PEUGEOT 5702-K8 PEUGEOT
5705AX PEUGEOT 57020000000 PEUGEOT
5705EE PEUGEOT 5702K8 PEUGEOT
5705JF PEUGEOT 5705-NG PEUGEOT
57100 EAI 57056K PEUGEOT
89212430 POWERMAX 5705NG PEUGEOT
8EL011712-341 HELLA A004TJ0081 MITSUBISHI
8EL012241-151 HELLA A004TJ0081A MITSUBISHI
9090447 FRIESEN A004TJ0081AM MITSUBISHI
9646065180 PEUGEOT A004TJ0081B MITSUBISHI
9646388280 PEUGEOT A004TJ0081C MITSUBISHI
96547528 PEUGEOT A004TJ0084 MITSUBISHI
9654752880 PEUGEOT A004TJ0084A MITSUBISHI
9661544880 LANCIA A004TJ0084AM MITSUBISHI
9688085380 PEUGEOT A004TJ0084B MITSUBISHI
A3225 AS-PL A004TJ0084C MITSUBISHI
A4TJ0081 MITSUBISHI A4TJ0081AM MITSUBISHI
A4TJ0081A MITSUBISHI A4TJ0081B MITSUBISHI
A4TJ0081C MITSUBISHI A4TJ0084AM MITSUBISHI
A4TJ0084 MITSUBISHI K9661544880 FIAT
A4TJ0084A MITSUBISHI MD171502 MITSUBISHI
A4TJ0084B MITSUBISHI MM317603 MITSUBISHI
A4TJ0084C MITSUBISHI STX100675 STARDAX
AEK2857 AUTOELECTRO
ALT14318 WOODAUTO
ALT2142CP ROLLCO
ALT371880 SIOM
ALTL361 3EFFE
ALV1920 KRAUF
CA1920IR HC PARTS
CAL15079GS CASCO

Mounted on :

Brand Model Typ Year Brand Model Typ Year
CITROEN C4 2.0 HDi [RHF(DW10BTED4)] 01/07/08 LANCIA Phedra 2.2 JTD [4HP] 01/04/06
CITROEN Berlingo 1.6 HDi 90 01/04/08 LANCIA Phedra 2.2 JTD [4HR] 01/04/06
CITROEN C4 2.0 HDi [RHR(DW10BTED4)] 01/11/04 LANCIA Phedra 2.2 JTD [4HW(DW12ATED4)] 01/09/02
CITROEN C4 1.6 HDi Grand Picasso [9HY(DV6TED4)] 01/10/06 LANCIA Phedra 2.2 Multijet [4HS] 01/03/08
CITROEN C4 1.6 HDi Grand Picasso [9HZ(DV6TED4)] 01/10/06 LANCIA Phedra 2.2 Multijet [4HT] 01/03/08
CITROEN C4 2.0 HDi Grand Picasso [RHJ(DW10BTED4)] 01/10/06 LANCIA Phedra 2.0 Multijet [RHR(DW10BTED4)] 01/07/06
CITROEN C4 2.0 HDi Grand Picasso [RHR(DW10BTED4)] 01/10/06 PEUGEOT Expert 2.0 HDi [RHK(DW10UTED4)] 01/01/07
CITROEN C4 1.6 HDi Picasso [9HY(DV6TED4)] 01/02/07 PEUGEOT 407 2.0 HDi [RHR(DW10BTED4)] 01/10/05
CITROEN C4 2.0 HDi Picasso [RHJ(DW10BTED4)] 01/02/07 PEUGEOT 407 2.0 HDi [RHR(DW10BTED4)] 09.2008-12.2009
CITROEN C4 1.6 HDi Picasso [9HZ(DV6TED4)] 01/02/07 PEUGEOT 407 2.0 HDi FAP [RHR(DW10BTED4)] 01/05/04
CITROEN C4 2.0 HDi Picasso [RHR(DW10BTED4)] 01/02/07 PEUGEOT Expert 2.0 HDi [RHR(DW10BTED4)] 01/01/07
CITROEN C6 2.2 HDi [4HP(DW12BTED4)] 01/06/06 PEUGEOT Expert 2.0 HDi Tepee [RHK(DW10UTED4)] 01/01/07
CITROEN C6 2.2 HDi [4HT(DW12BTED4)] 01/06/06 PEUGEOT Partner 1.6 HDi Tepee [9HZ(DV6TED4)] 01/04/08
CITROEN C5 2.2 HDi [4HP(DW12BTED4)] 01/05/06 PEUGEOT Expert 2.0 HDi Tepee [RHR(DW10BTED4)] 01/01/07
CITROEN C5 1.6 HDi [9HZ(DV6TED4)] 01/02/08 PEUGEOT 807 2.0 HDi [DW10UTED4] 01/02/06
CITROEN C5 2.2 HDi [4HT(DW12BTED4)] 01/04/06 PEUGEOT Partner 1.6 HDi [9HT(DV6BTED4)] 01/01/09
CITROEN C8 2.2 HDi [4HP(DW12BTED4)] 01/06/07 PEUGEOT 407 2.2 HDi [4HP(DW12BTED4)] 01/06/08
CITROEN C5 2.2 HDi [4HT(DW12BTED4)] 01/02/08 PEUGEOT 407 2.2 HDi FAP [4HT(DW12BTED4)] 01/05/06
CITROEN Berlingo 1.6 HDi [9HT(DV6BTED4)] 01/04/08 PEUGEOT 307 2.0 HDi FAP [RHR(DW10BTED4)] 01/02/04
CITROEN C8 2.2 HDi [4HT(DW12BTED4)] 01/06/06 PEUGEOT Partner 1.6 HDi [9HX(DV6ATED4)] 01/02/06
CITROEN Berlingo 1.6 HDi [9HT(DV6BUTED4)] 01/04/08 PEUGEOT Partner 1.6 HDi [9HX(DV6ATED4)] 01/01/09
CITROEN C5 2.0 HDi [RHF(DW10BTED4)] 01/02/08 PEUGEOT 607 2.2 HDi FAP [4HT(DW12BTED4)] 01/05/06
CITROEN Berlingo 1.6 HDi [9HX(DV6ATED4)] 01/07/05 PEUGEOT Partner 1.6 HDi [9HZ(DV6TED4)] 01/04/08
CITROEN C5 2.0 HDi [RHR(DW10BTED4)] 01/09/04 PEUGEOT 807 2.2 HDi [4HT(DW12BTED4)] 01/06/06
CITROEN Berlingo 1.6 HDi [9HX(DV6ATED4)] 01/04/08 PEUGEOT 407 SW 2.2 HDi [4HP(DW12BTED4)] 01/06/08
CITROEN Berlingo 1.6 HDi [9HZ(DV6TED4)] 01/08/05 PEUGEOT 607 2.0 HDi [RHR(DW10BTED4)] 01/09/05
CITROEN Berlingo 1.6 HDi [9HZ(DV6TED4)] 01/04/08
CITROEN C5 2.0 HDi [RHR(DW10BTED4)] 01/02/08
CITROEN C8 2.0 HDi [RHK(DW10UTED4)] 01/02/07
CITROEN C8 2.0 HDi [RHR(DW10BTED4)] 01/03/06
CITROEN C5 2.2 HDi 165 [4HP(DW12BTED4)] 01/02/08
CITROEN Jumpy 2.0 HDi [RHK(DW10UTED4)] 01/01/07
CITROEN Jumpy 2.0 HDi [RHR(DW10BTED4)] 01/01/07
FIAT Ulysse 2.2 Multijet [4HT] 01/03/08
FIAT Scudo 2.0 Multijet [RH02] 01/04/11
FIAT Scudo 2.0 Multijet [RH02] 01/05/11
FIAT Scudo 2.0 Multijet [RHH] 01/01/07
FIAT Scudo 2.0 Multijet [RHK] 01/01/07
FIAT Scudo 2.0 Multijet [RHR] 01/01/07
FIAT Scudo 2.0 Multijet 4x4 [RH02] 01/04/11
FIAT Ulysse 2.0 Multijet [RHK] 01/05/06
FIAT Scudo 2.0 Diesel [DW10BTED4] 01/01/07
FIAT Ulysse 2.0 Multijet [RHR] 01/05/06
FIAT Ulysse 2.2 JTD [4HP] 01/03/08
FIAT Ulysse 2.2 JTD [4HR] 01/03/08
FIAT Ulysse 2.2 JTD [4HW(DW12ATED4)] 01/08/02
