Alternator replacing HITACHI LR170-411P / LR170-411F / LR170- 411E

Information:

Voltage 14

Amp 70

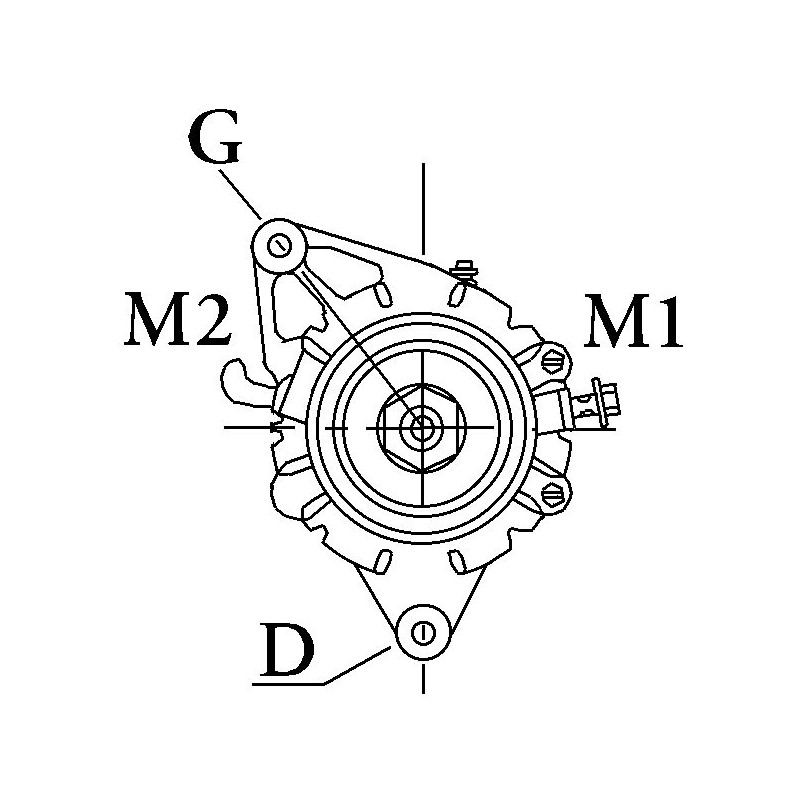

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

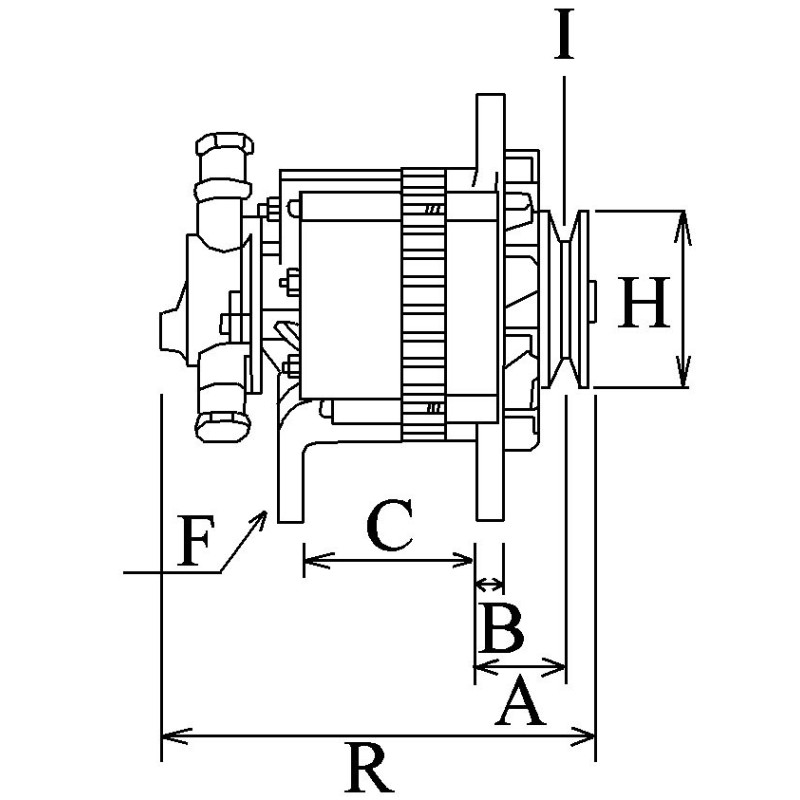

B = Width/holder arm 13.15

E = Belt. adj. brackethole pos. 55

C = Mount. bracket dist 82.00

H = Pulley dia. 82.00

A = Pulley dist. 41.50

Grooves/pulley 1

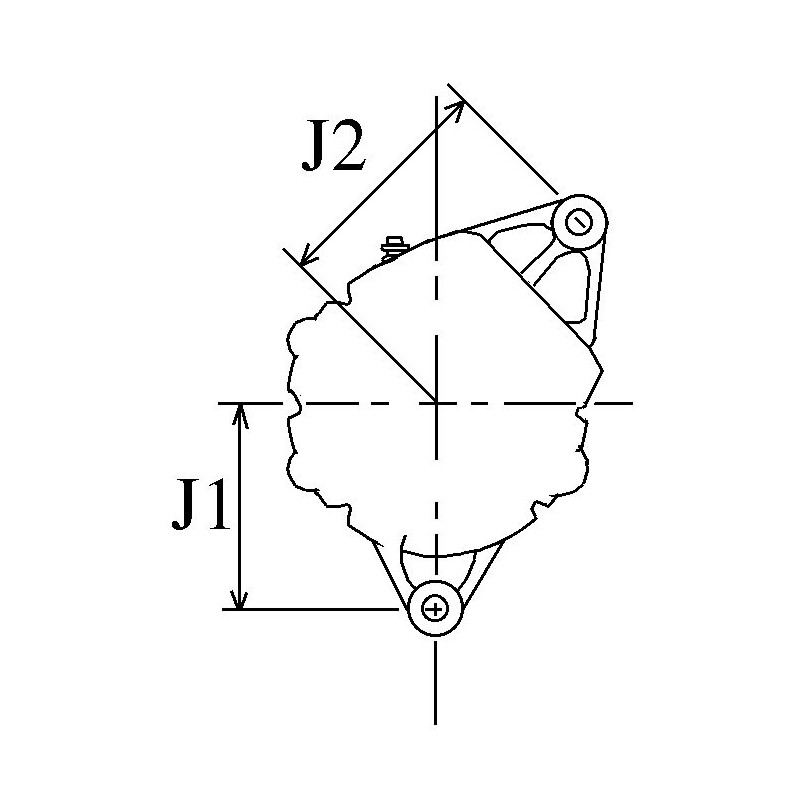

J = Radius 90.00

J = Radius 85.00

Position B + Plug

Rotation Cr

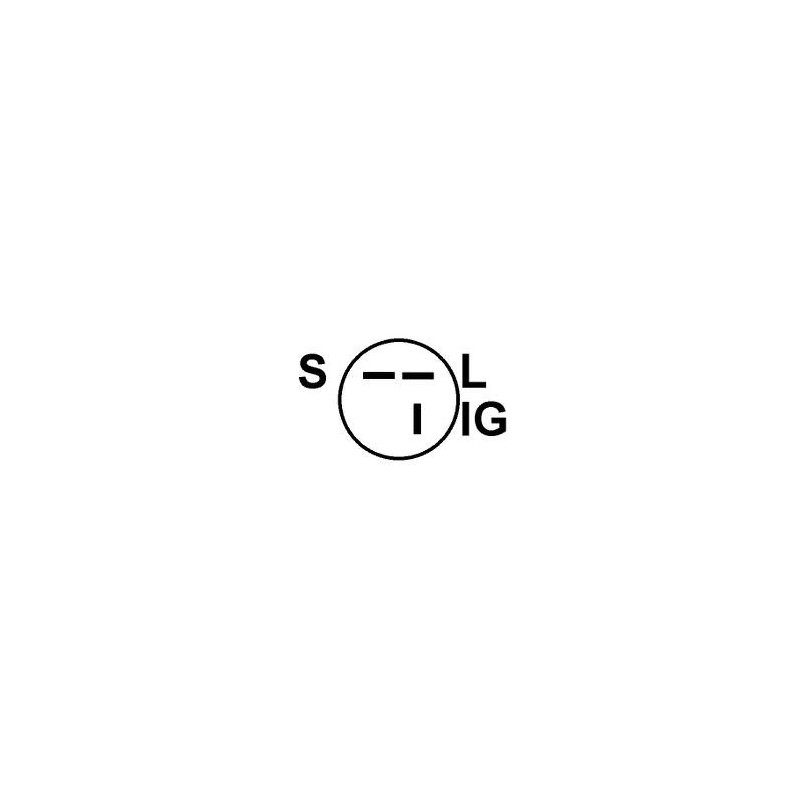

Plug no. 1 PL32

Fan If

Pulley Pulley

R = Total length mm 219.00

= BOSCH 0986037811

= DELCO REMY DRA3275

= HELLA 8EL726388001

= HITACHI LR170-411D / LR170-411C / LR170-411B / LR170-411A / LR170-411

= ISKRA IA9016

= OPEL 1204062 / 1204132 / 94471996

= ISUZU 8944719961 / 8944719963 / 8944719964 / 8970447790

                                               TWO YEARS WARRANTY

                            NO CORE EXCHANGE NEEDED
