Alternator replacing HITACHI LR170-511B / LR170-511A / LR170- 511

Information:

Information  :
Voltage 14
 Amp 70

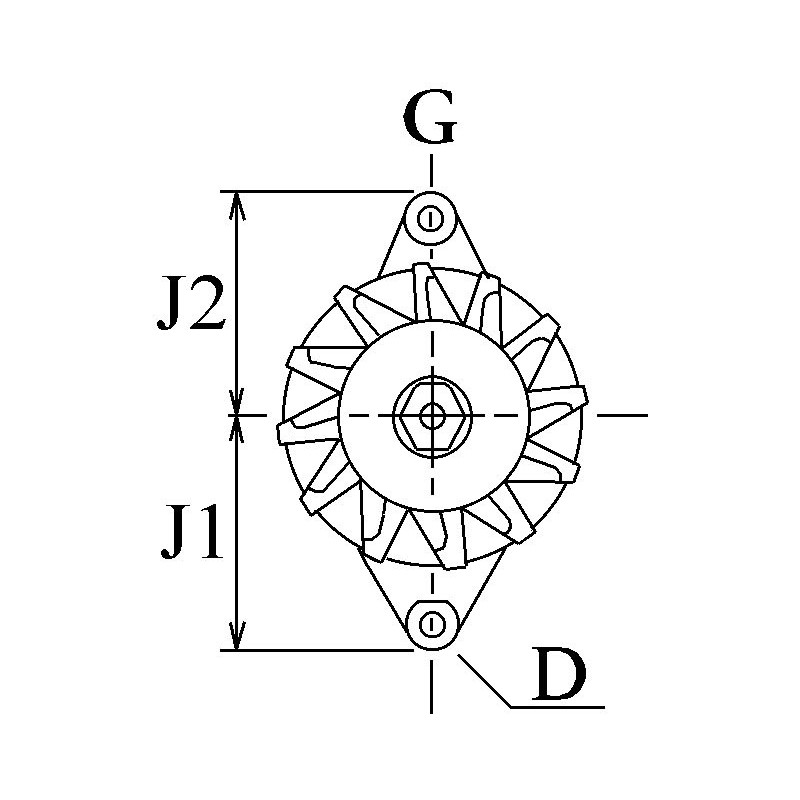

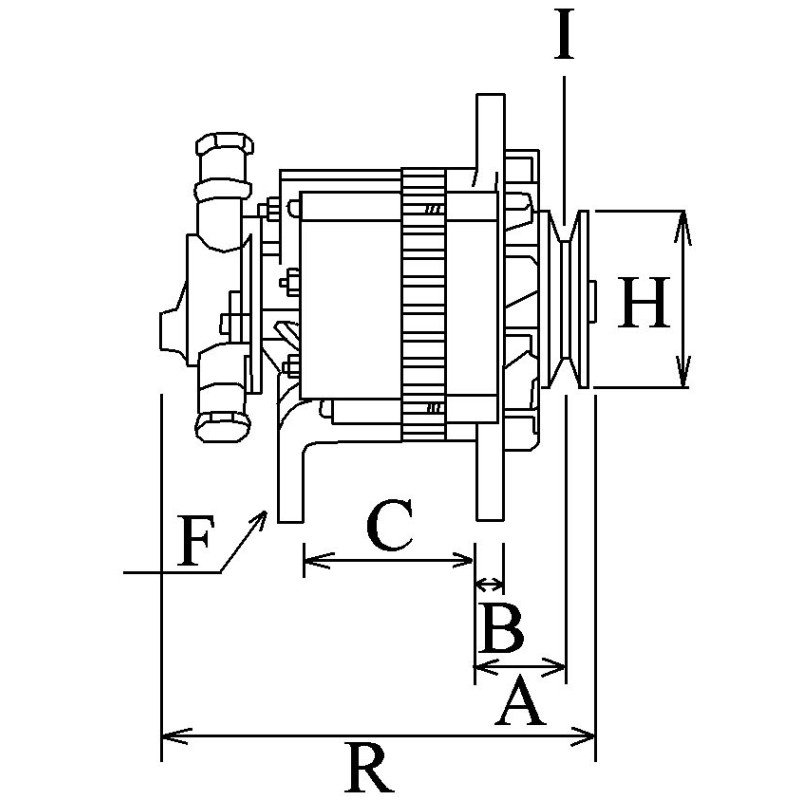

D =  Bracket hole 10.50
G =  Belt. adj. bracket hole M8
B =  Width/holder arm 13.00
E =  Belt. adj. brackethole pos. 60
C =  Mount. bracket dist 78.50
H =  Pulley dia. 80.50
A =  Pulley dist. 42.50
 Grooves/pulley 1
J =  Radius 90.50
J =  Radius 84.50
 Position B + M8
 Rotation Cr

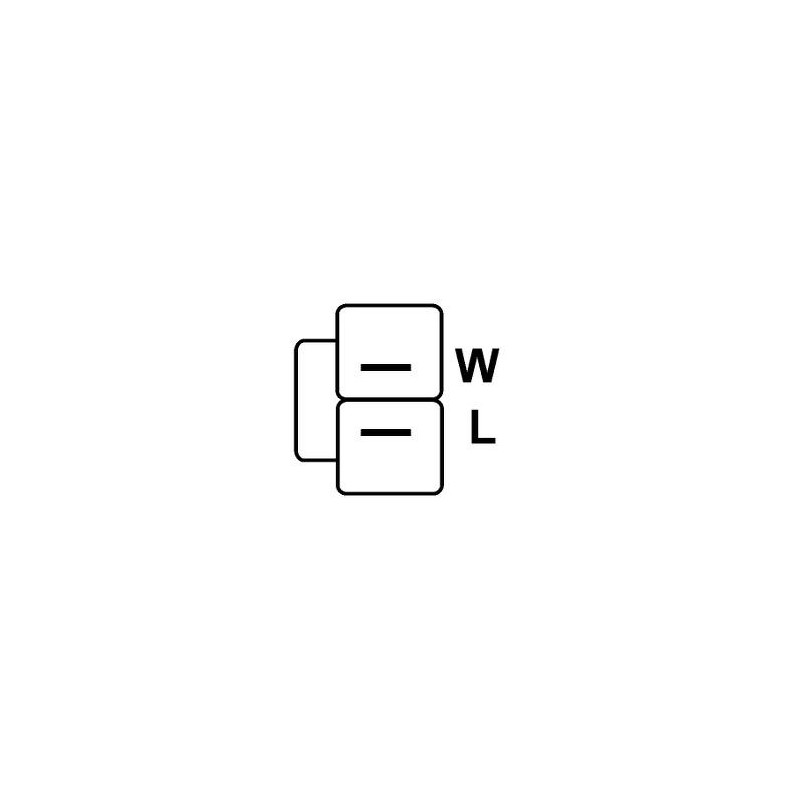

 Plug no. 1 PL50
 Fan If
 Pulley Pulley
R =  Total length mm 215.00

generic brand

= HITACHI LR170-505E / LR170-505C / LR170-505B / LR170-505 / LR170-505A / LR170-511 / LR170-511A / LR170-505B

= BOSCH F002G10951 / 0986041793 /  0986041790 / 0986041791

= DELCO REMY DRA3545

= LUCAS LRB303 / LRB00303

= PRESTOLITE 20110303

= VALEO TA000A55401 / 567051 / 437134 / 439509

= OPEL 6204042 / 6204046 / 6204106 / 97150200 / 97241021

= ISUZU 8971502000 / 8971502001 / 8972410210

                                        TWO YEARS WARRANTY

                            NO CORE EXCHANGE NEEDED
