w114121

Alternator NEW for OPEL,VAUXHALL

HITACHI LR1110-502 / LR1110-502A / LR1110-502B  / LR1110-502C  / LR1110-502D
LR1110-502E / LR1110-502F / LR1110-502G / LR1110-502H / LR1110-502I
LR1110-502J / LR1110-503 / LR1110-503A / LR1110-503B / LR1110-503C
LR1110-503D  / LR1110-503E / LR1110-503F

 NO CORE EXCHANGE NEEDED

 TWO YEARS WARRANTY

Read more
€139.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 14

Amp 110

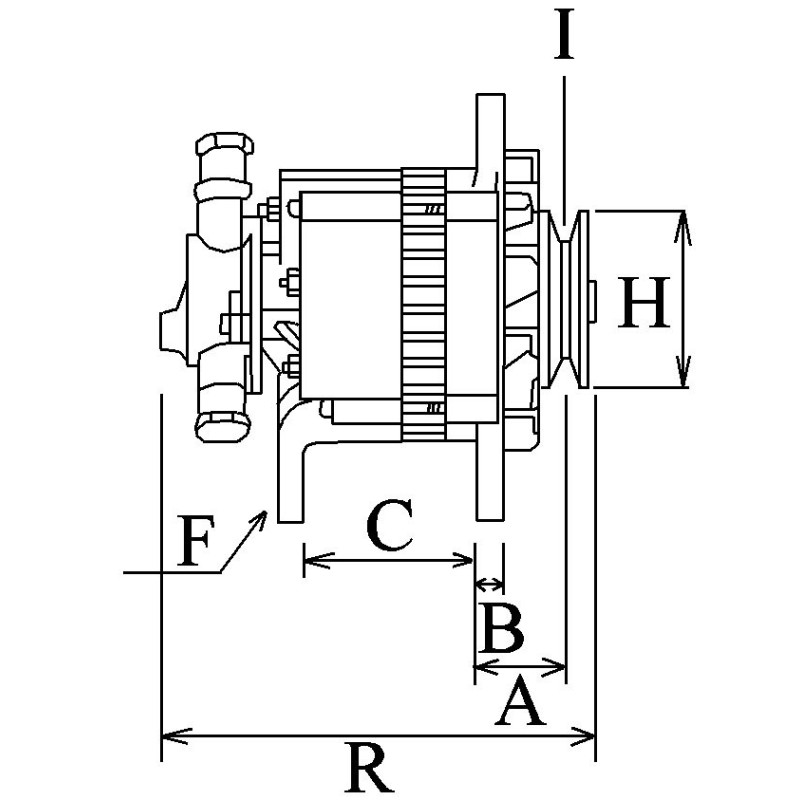

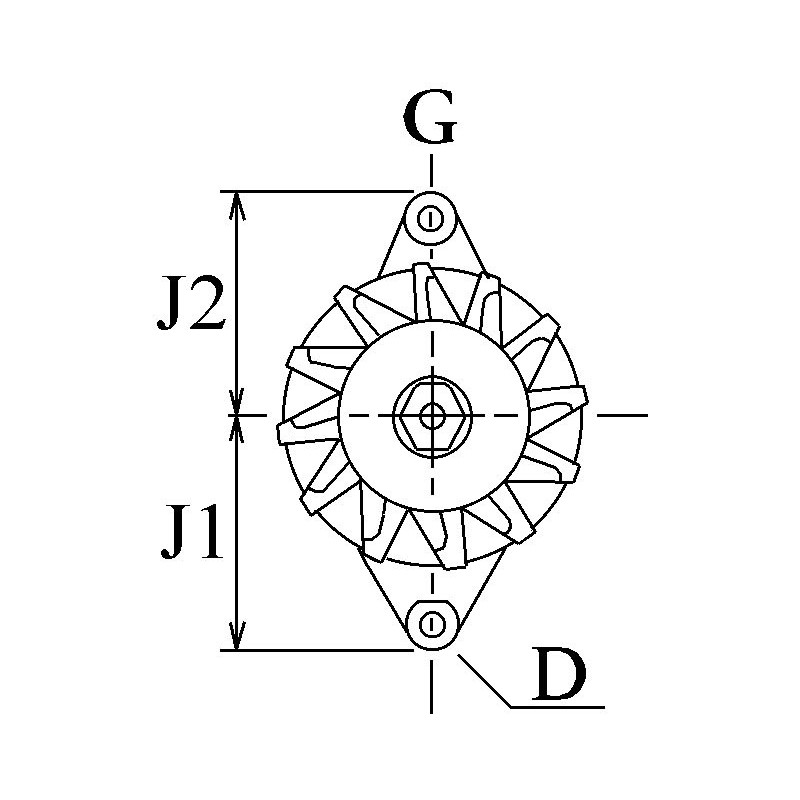

D = Bracket hole 10.30

G = Belt. adj. bracket hole 8.30

B = Width/holder arm 12.60

E = Belt. adj. brackethole pos. 57

C = Mount. bracket dist 66.50

H = Pulley dia. 60.00

A = Pulley dist. 35.00

Grooves/pulley 6

J = Radius 90.00

J = Radius 85.00

Position B + M8

Rotation Cr

Plug no. 1 PL127

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

R = Total length mm 220.00

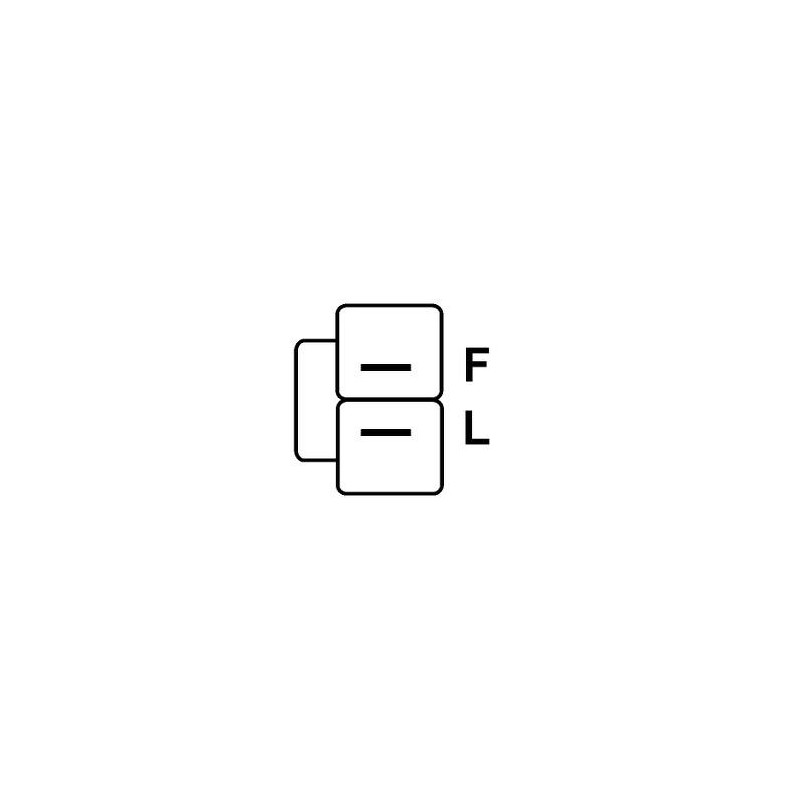

Tipo borne L-F

generic brand

= HITACHI LR1110-502 / LR1110-502A / LR1110-502B  / LR1110-502C  / LR1110-502D
LR1110-502E / LR1110-502F / LR1110-502G / LR1110-502H / LR1110-502I
LR1110-502J / LR1110-503 / LR1110-503A / LR1110-503B / LR1110-503C
LR1110-503D  / LR1110-503E / LR1110-503F

= ISUZU 8973638320 / 8973638321 / 8973638322 / 8973638323 / 8973638330 / 8980564390

= OPEL 1204618 / 6204197 / 6204198 / 6204252 / 93189496 / 97363832 / 97363833 / 98056439 / R1530090

fits

brand Model Tipo year
OPEL Astra H 1.7 CDTi [D17DTL] 01/08/04
OPEL Astra H 1.7 CDTi [Z17DTH] 01/03/04
OPEL Astra H 1.7 CDTi [Z17DTH] 01/08/04
OPEL Astra H 1.7 CDTi [Z17DTH] 01/02/07
OPEL Astra H 1.7 CDTi [Z17DTL] 01/03/04
OPEL Astra H 1.7 CDTi Ecotec [Z17DTL] 03.2005-03.2007
OPEL Astra H 1.7 CDTi GTC [Z17DTH] 01/03/05
OPEL Combo 1.7 CDTi 16V Tour [Z17DTH] 01/12/04
OPEL Corsa C 1.7 CDTi SE [Z17DTH] 08.2003-09.2006
VAUXHALL Astra MK 1.7 CDTi [Z17DTL] 03.2004-03.2007
VAUXHALL Astra MK V 1.7 CDTi [Z17DTH] 03.2004-03.2007
VAUXHALL Astra MK V 1.7 CDTi [Z17DTH] 08.2004-03.2007
VAUXHALL Astra MK V 1.7 CDTi [Z17DTH] 02.2005-11.2010
VAUXHALL Astra MK V 1.7 CDTi [Z17DTL] 03.2004-03.2007
VAUXHALL Astra MK V 1.7 CDTI [Z17DTL] 03.2004-05.2009
VAUXHALL Astravan MK IV 1.7 CDTi [Z17DTL] 04.2004-08.2006
VAUXHALL Astravan Mk V 1.7 CDTi [Z17DTL] 03.2005-07.2006
VAUXHALL Astravan Mk V 1.7 CDTi 16V [Z17DTH] 03.2005-11.2011
VAUXHALL Combo 1.7 CDTi 16V [Z17DTH] 12.2004-11.2011
VAUXHALL Combo Tour Mk II 1.7 CDTI 16V [Z17DTH] 12.2004-09.2010

                               NO CORE EXCHANGE NEEDED

                                                TWO YEARS WARRANTY
