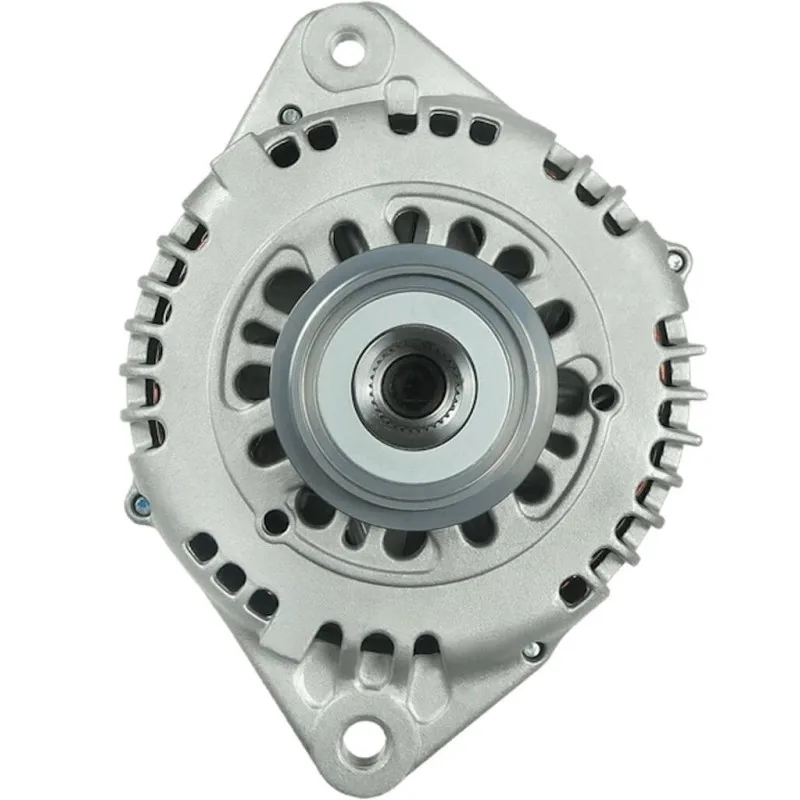

Alternator replacing HITACHI LR1100-508F / LR1100-508E / LR1100-508C

w113956

New product

1 Item

Alternator NEW  for OPEL,VAUXHALL

= BOSCH 0986048301 / 0986048320

= DELCO REMY DRA0434 / DRA4228

= ISUZU 8973695070 / 8973695071 / 8973695072 / 8973695080

 8973695081 / 8980564410

= LUCAS LRA02806

                                                  TWO YEARS WARRANTY

                                NO CORE EXCHANGE NEEDED



129,90 € Inc VAT

Send to a friend

Send to a friend

Alternator replacing HITACHI LR1100-508F / LR1100-508E / LR1100-508C

Alternator replacing HITACHI LR1100-508F / LR1100-508E / LR1100-508C

Alternator NEW  for OPEL,VAUXHALL

= BOSCH 0986048301 / 0986048320

= DELCO REMY DRA0434 / DRA4228

= ISUZU 8973695070 / 8973695071 / 8973695072 / 8973695080

 8973695081 / 8980564410

= LUCAS LRA02806

                                                  TWO YEARS WARRANTY

                                NO CORE EXCHANGE NEEDED



Recipient :

* Required fields

  or  Cancel

More info

= BOSCH 0986048301 / 0986048320

= DELCO REMY DRA0434 / DRA4228

= HITACHI LR1100-508F / LR1100-508E / LR1100-508C / LR1100-508B / LR1100-508
LR1100-507C / LR1100-507B / LR1100-508A / LR1100-508D / LR1100-508F

LR1100-507 / LR1100-507A / LR1100-507D / LR1100-507E

= ISUZU 8973695070 / 8973695071 / 8973695072 / 8973695080

 8973695081 / 8980564410

= LUCAS LRA02806

= MAGNETI MARELLI MAQ0186

= OPEL 6204199 / 6204200 / 97369507 / 97369508 / 98056441

= ALT3141sa / ALTV056 / 98056439 / 98056441 / KTR271206200 / HJA1900IR / JA1899IR

Information:

Voltage 14

Amp 100

D = Bracket hole 10.50

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 57

C = Mount. bracket dist 65.50

H = Pulley dia. 59.60

A = Pulley dist. 35.30

Grooves/pulley 6

J = Radius 90.00

J = Radius 84.00

Position B + M8

Rotation Cr

Plug no. 1 PL127

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

R = Total length mm 233.00

fits:

BrandModelTypeYear
OPELAstra 1.7 CDTi[D17DTL]01/08/04
OPELAstra 1.7 CDTi[Z17DTH]01/03/04
OPELAstra 1.7 CDTi[Z17DTH]01/08/04
OPELAstra 1.7 CDTi[Z17DTH]01/02/07
OPELAstra 1.7 CDTi[Z17DTL]01/03/04
OPELAstra 1.7 CDTi Ecotec[Z17DTL]03.2005-03.2007
OPELAstra 1.7 CDTi GTC[Z17DTH]01/03/05
VAUXHALLAstra 1.7 CDTi[Z17DTH]03.2004-03.2007
VAUXHALLAstra 1.7 CDTi[Z17DTH]08.2004-03.2007
VAUXHALLAstra 1.7 CDTi[Z17DTH]02.2005-11.2010
VAUXHALLAstra 1.7 CDTi[Z17DTL]03.2004-03.2007
VAUXHALLAstra 1.7 CDTi[Z17DTL]08.2004-05.2009
VAUXHALLAstravan 1.7 CDTi[Z17DTL]04.2004-08.2006
VAUXHALLAstravan 1.7 CDTi[Z17DTL]03.2005-07.2006
VAUXHALLAstravan 1.7 CDTi 16V[Z17DTH]03.2005-11.2011

                                          TWO YEARS WARRANTY

                        NO CORE EXCHANGE NEEDED
