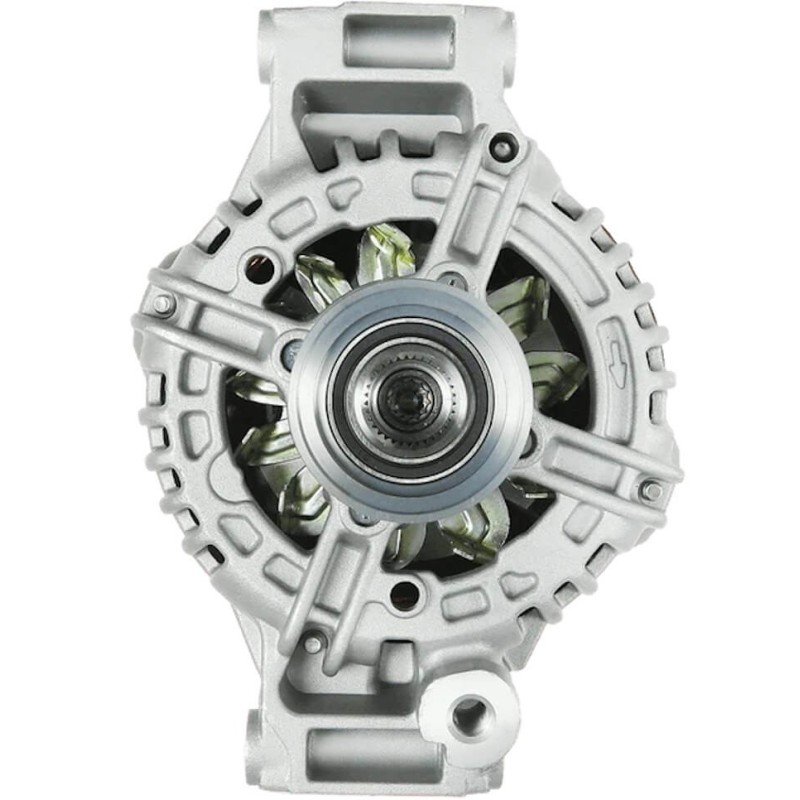

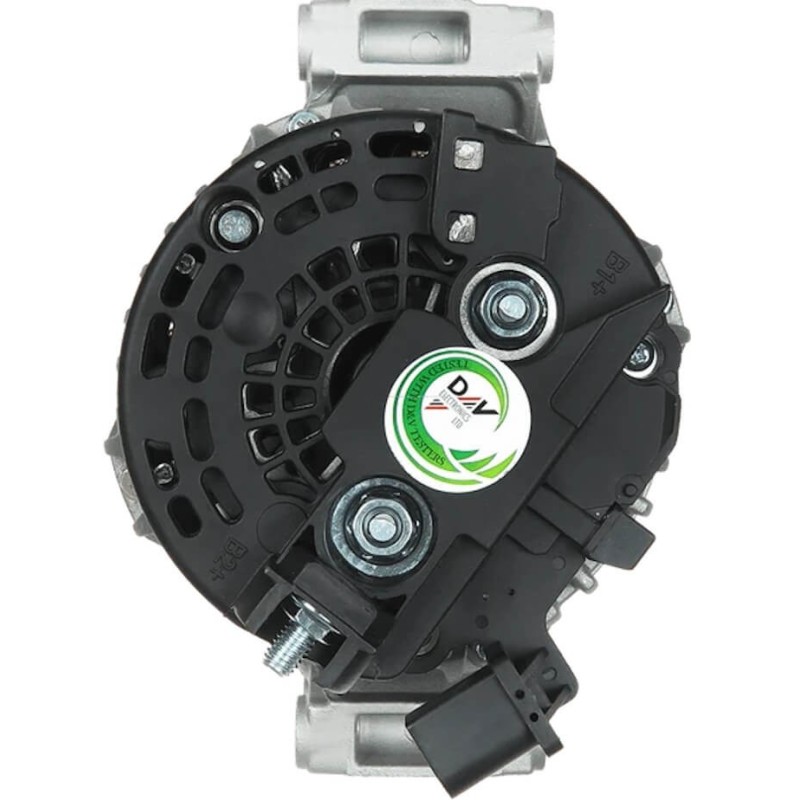

Alternator replacing 0124325087 / 0124325116 / 2317521382
Replacing | |
|---|---|
| 12317521382 | BMW |
| 12317521383 | BMW |
| 12317521488 | BMW |
| 12317521489 | BMW |
| 12317532964 | BMW |
| 12317532968 | BMW |
| 2542749 | VALEO |
| 2542749A | VALEO |
| 2542749B | VALEO |
| 2542749C | VALEO |
| 7521382 | BMW |
| 7521383 | BMW |
| 7521488 | BMW |
| 7521489 | BMW |
| 7532968 | BMW |
| CA1773IR | HC-PARTS |
| SG11B010 | VALEO |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 30.50 |
| B | Width/holder arm | 63.00 |
| C | Mount. bracket dist. | 41.00 |
| D | Bracket hole | 10.00 |
| D | Bracket hole 2 | 9.00 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 10.00 |
| G | Belt. adj. bracket hole 2 | 9.00 |
| H | Pulley dia. | 49.00 |
| J | Radius | 87.00 |
| J | Radius 2 | 87.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 35 |
| N | Rotation | CW |

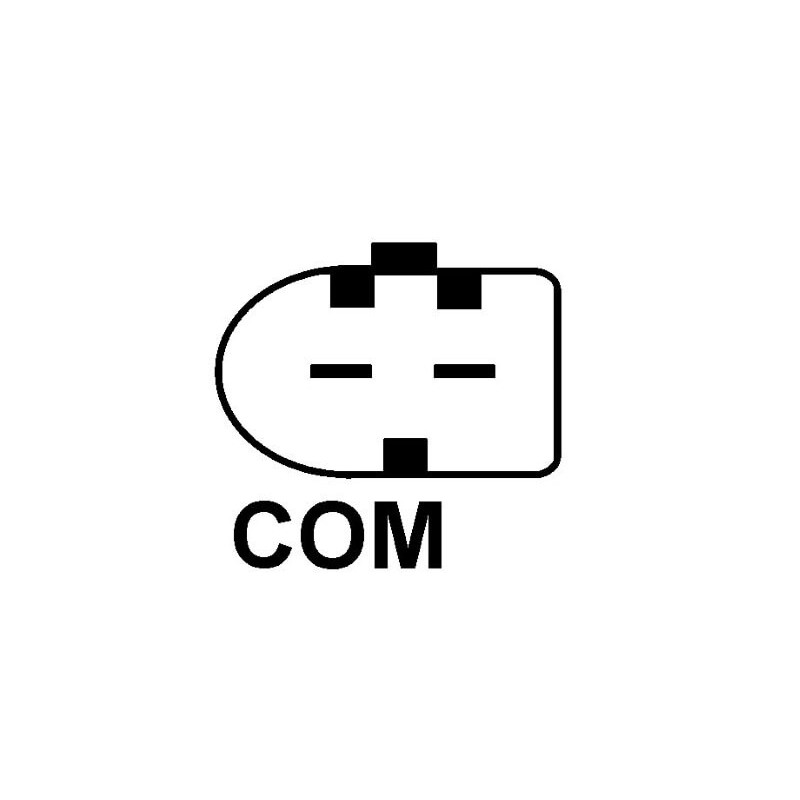

| O | Plug no. 1 | PL86 |
| R | Total length mm | 192.00 |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 110 | |
Generic Brand
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Regulator type | IR | |
| Remarks | This Alternator has a COM terminal on the regulator, It is recommended that the OEM number is used to check suitability before ordering | |
