Alternator replacing TG17C021 / TG17C021B / TG17C027 / TG17C035 / 2542785 / 2543221
| 12317524972 | BMW | CAL15348RS | CASCO |
| 12317525440 | BMW | DRA0193 | DELCO |
| 12317537959 | BMW | EAA-222393 | EAA |
| 12317537962 | BMW | LRA03023 | LUCAS |
| 12317540990 | BMW | LRA3023 | LUCAS |
| 12317540992 | BMW | RNLTG17C035 | RNL |
| 12317540994 | BMW | TG17C021 | VALEO |
| 12317550993 | BMW | TG17C021B | VALEO |
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 180 | |

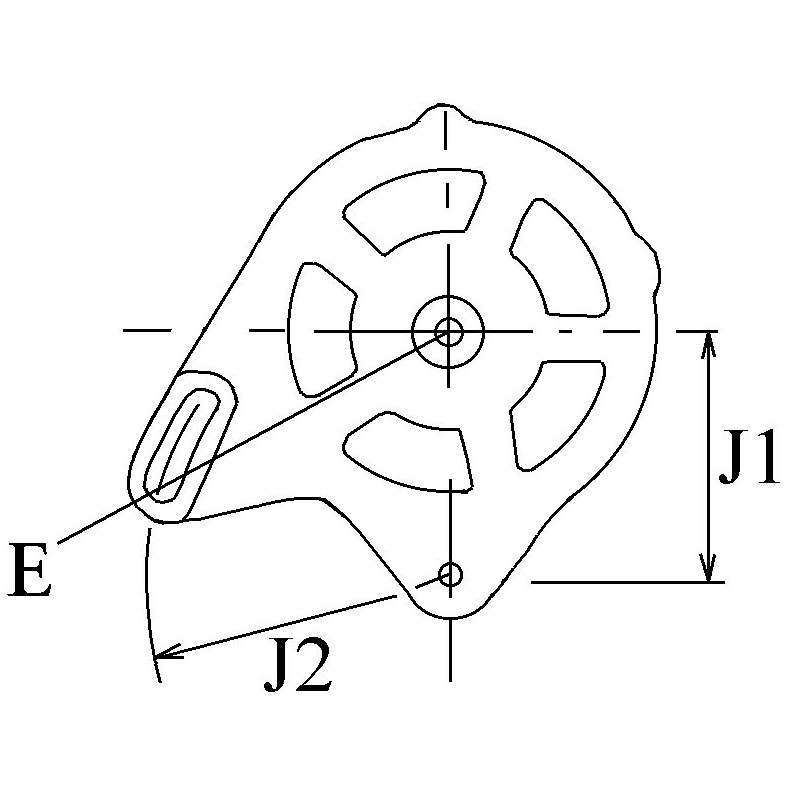

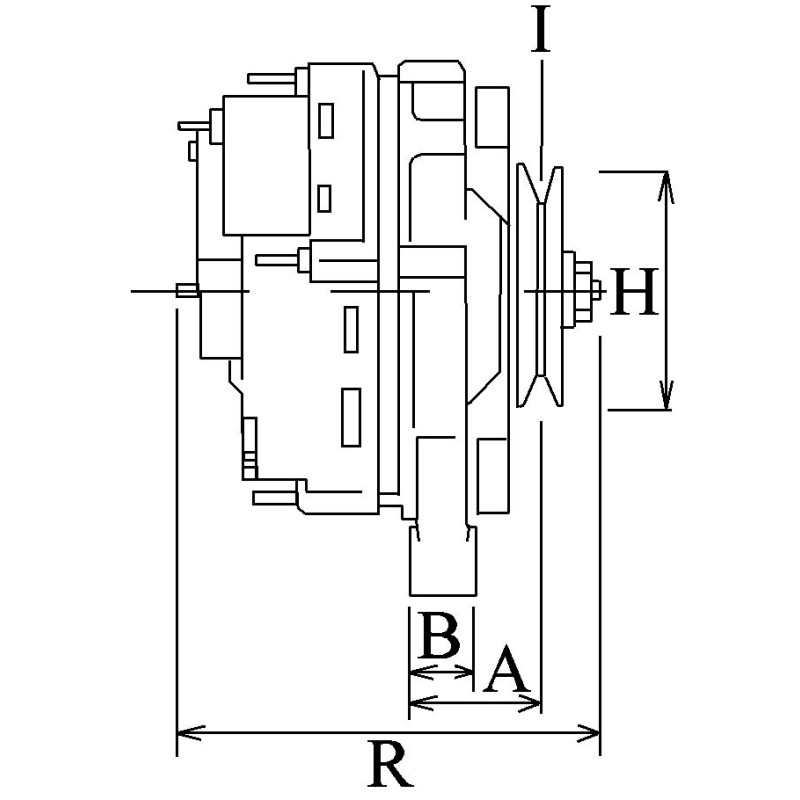

Physical Information | ||
|---|---|---|
| A | Pulley dist. | 57.00 |
| B | Width/holder arm | 28.00 |
| C | Mount. bracket dist | 75.00 |
| D | Bracket hole | 10.00 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 10.00 |
| H | Pulley dia. | 49.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 92.00 |
| J | Radius 2 | 93.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 55 |
| N | Rotation | Cr |

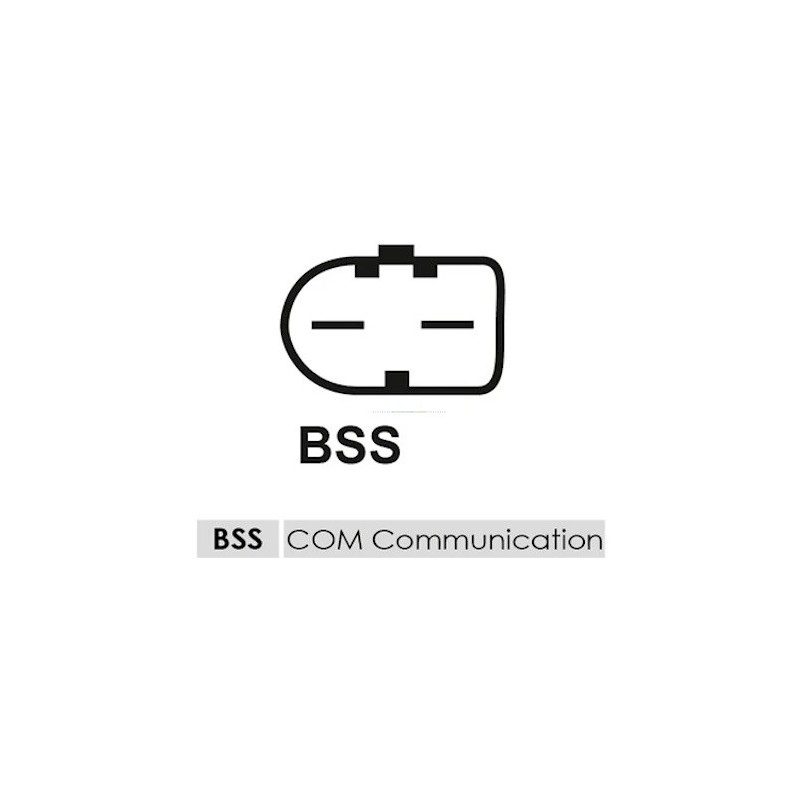

| O | Plug n° 1 | PL125 |
| R | Total length mm | 182.00 |
generic brand
repacing
| 11358N | WAI / TRANSPO | CAL15348GS | CASCO |
| 11358R | WAI / TRANSPO | CAL15348OS | CASCO |
| 12317524972 | BMW | CAL15348RS | CASCO |
| 12317525440 | BMW | DRA0193 | DELCO |
| 12317537959 | BMW | EAA-222393 | EAA |
| 12317537962 | BMW | LRA03023 | LUCAS |
| 12317540990 | BMW | LRA3023 | LUCAS |
| 12317540992 | BMW | RNLTG17C035 | RNL |
| 12317540994 | BMW | TG17C021 | VALEO |
| 12317550993 | BMW | TG17C021B | VALEO |
| 2015348 | SANDO | TG17C027 | VALEO |
| 20179843OE | REAL | TG17C035 | VALEO |
| 215.535.180 | PSH | UD02321A | AS-PL |
| 2542785 | VALEO | 210505 | ERA |
| 2542785A | VALEO | ALT0044 | ELECTROLOG |
| 2542785B | VALEO | 442543 | LOGISTIK |
| 2543221 | VALEO | 442579 | LOGISTIK |
| 2543221C | VALEO | A12VA0245AS | SIDAT |
| 2543221D | VALEO | 12317542935 | BMW |
| 2543293 | VALEO | ANM32413X | ANDEL |
| 2543293A | VALEO | 12317542934 | BMW |
| 28-5635 | ELSTOCK | ALT0068 | ELECTROLOG |
| 439537 | VALEO | 12317540993 | BMW |
| 553110RIV | KUHNER | 7524972 | BMW |
| 9047170 | FRIESEN | 7525440 | BMW |
| A3228 | AS-PL | 7540990 | BMW |
| AEK3023 | AUTOELECTRO | 7540992 | BMW |
| ALT173280 | SIOM | STX100692 | STARDAX |
| ALTS782 | 3EFFE | STX100692R | STARDAX |
| CAL15348 | CASCO | STX102173 | STARDAX |
| CAL15348AS | CASCO | ||
| CAL15348ES | CASCO |
mounting on :
| Brand | Model | Tipo | year |
| BMW | 540 4.0 i | (E60)[N62B40A] | 01/07/05 |
| BMW | 545 4.4 i | (E60)[N62B44A] | 01/09/03 |
| BMW | 545 4.4 i | (E61)[N62B44A] | 01/06/04 |
| BMW | 550 4.8 i | (E60)[N62B48B] | 01/07/05 |
| BMW | 550 4.8 i | (E61)[N62B48A] | 01/07/05 |
| BMW | 645 4.4 Ci | (E63)[N62B44A] | 01/01/04 |
| BMW | 645 4.4 Ci | (E63)[N62B44] | 01/01/04 |
| BMW | 645 4.4 Ci | (E64)[N62B44A] | 01/04/04 |
| BMW | 645 4.4 Ci | (E64)[N62B44] | 01/04/04 |
| BMW | 650 4.8 i | (E63)[N62B48B] | 01/07/05 |
| BMW | 650 4.8 i | (E64)[N62B48B] | 01/07/05 |
| BMW | 735 3.6 i | (E65)[N62B36] | 01/11/01 |
| BMW | 735 3.6 Li | (E66)[N62B36] | 01/11/01 |
| BMW | 735 4.0 i | (E65)[N62B40A] | 01/03/05 |
| BMW | 735 4.0 i | (E66)[N62B40A] | 01/03/05 |
| BMW | 740 4.0 i | (E65)[N62B40A] | 01/07/05 |
| BMW | 740 4.0 Li | (E66)[N62B40A] | 01/07/05 |
| BMW | 745 4.4 Diesel | (E65)[N67N448D2] | 01/07/05 |
| BMW | 745 4.4 Diesel | (E66)[N67N448D2] | 01/07/05 |
| BMW | 745 4.4 Diesel | (E67)[N67N448D2] | 01/07/05 |
| BMW | 745 4.4 i | (E65)[N62B44] | 01/11/01 |
| BMW | 745 4.4 Li | (E66)[N62B44A] | 01/11/01 |
| BMW | 750 4.8 i | (E65)[N62B48B] | 01/07/05 |
| BMW | 750 4.8 Li | (E66)[N62B48B] | 01/07/05 |
| BMW | X5 4.4 i | (E53)[N62B44A] | 01/12/03 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
