Alternator replacing 0124325100 / 2C1T10300BA / YC1T10300DB
ATTENTION EXTENDED PULLEY MODEL
Replacing | |
|---|---|
| 0124325100 | Bosch |
| 20-150-01007 | Visteon |
| 2C1T10300BA | Ford |
| 2C1T10300BB | Ford |
| 4362258 | Ford |
| 4461712 | Ford |
| CA1779IR | HC-PARTS |
| YC1U10300BC | Ford |
| YC1U10300EA | Ford |
| YC1U10300EB | Ford |
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 110 | |
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 40.00 |
| B | Width/holder arm | 55.00 |
| C | Mount. bracket dist | 74.00 |
| D | Bracket hole | 14.80 |
| D | Trou from fixation support 2 | 12.80 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 13.50 |
| H | Pulley dia. | 59.00 |
| I | Grooves/pulley | 7 |
| K | Position B + | M6 |
| K | B+ position en min. | 20 |
| N | Rotation | Cr |

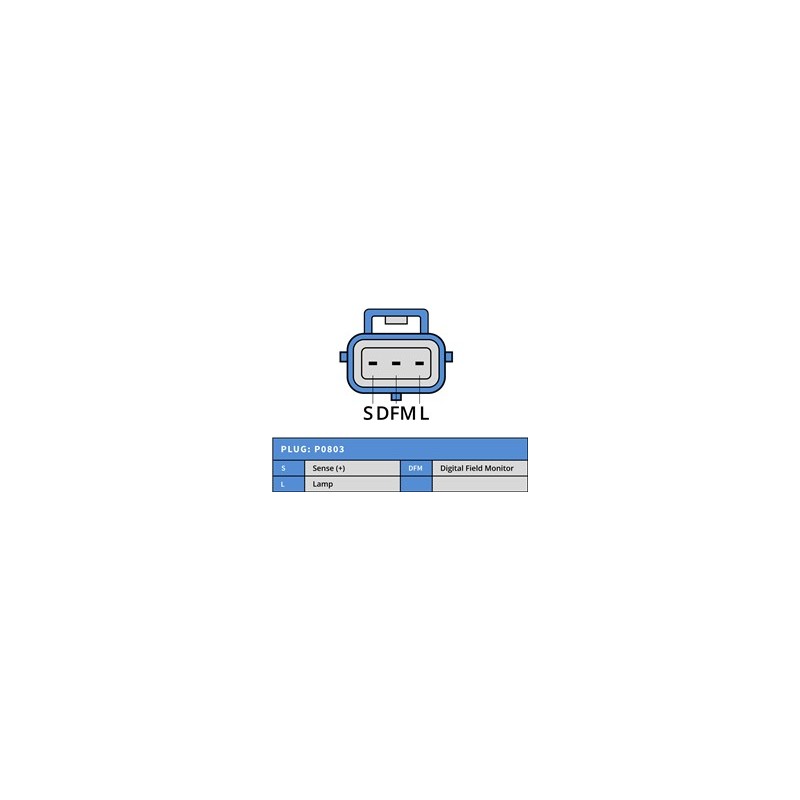

| O | Plug n° 1 | PL81 |
| R | Total length mm | 196.40 |
generic brand :
replacing
| 0124325100 | Bosch |
| 0124325100SEL | +line |
| 0124325248 | Bosch |
| 0986045370 | Bosch ruil |
| 113913 | Cargo |
| 12042790 | EuroTec |
| 12045370 | EuroTec |
| 1498518 | Ford |
| 2015001007 | Visteon |
| 210399A | Messmer |
| 21891 | Lester |
| 2205315 | PIC |
| 241090 | Elstock |
| 283814 | Elstock |
| 284645 | Elstock |
| 2C1T10300BA | Ford |
| 2C1T10300BB | Ford |
| 2C1TBA | Ford |
| 2C3410300BB | Ford |
| 2C34BB | Ford |
| 2C3UBB | Ford |
| 4112235 | Ford |
| 437659 | Valeo |
| 440259 | Valeo |
| 4461712 | Ford |
| 56874 | EAI |
| 595519110 | PSH |
| 6235SP | Spidan |
| 746992 | Valeo |
| 8EL738189001 | Hella |
| 9045370 | Friesen |
| 9045370F | Friesen |
| CA1779IR | HC |
| DRB5370 | Remy |
| DRB5370N | Remy |
| FRA344 | QH |
| HCA1779IR | HC |
| L42790 | ATL |
| LRB00444 | Lucas |
| LRB443 | Lucas |
| LRB444 | Lucas |
| LRB446 | Lucas |
| MAN2028 | Magneti Marelli |
| MAN8007 | Magneti Marelli |
| OAN10326 | Optimum |
| SP6074 | Spidan |
| SP6235 | Spidan |
| WSD23239 | Stabeco |
| YC1T10300DA | Ford |
| YC1T10300DB | Ford |
| YC1T10300EA | Ford |
| YC1TBC | Ford |
| YC1TBD | Ford |
| YC1TBE | Ford |
| YC1TBG | Ford |
| YC1TBH | Ford |
| YC1TBJ | Ford |
| YC1TDA | Ford |
| YC1TDB | Ford |
| YC1TEA | Ford |
| YC1UEA | Ford |
