Alternator replacing DELCO REMY 1102601 / 1102600 / 1101822 / 1101810
Alternator Generic brand for Buick,CADILLAC, CHEVROLET, GMC,OLDSMOBILE, PONTIAC
DELCO REMY 10463013, 10463014, 10463017, 10463049, 10463169, 10463211, 10479910, 1101139, 1101140, 1101227, 1101583, 1101593, 1101618, 1101822, GM 10463014, 10463017, 10463049, 10463169, 10463211
WITHOUT PULLEY
More info
Information:
Voltage 14
Amp 100/105
D = Bracket hole 10.25
G = Belt. adj. bracket hole M8
B = Width/holder arm 51.00
E = Belt. adj. brackethole pos. 10
J = Radius 78.00
J = Radius 78.00
Position B + M6
Rotation Cr

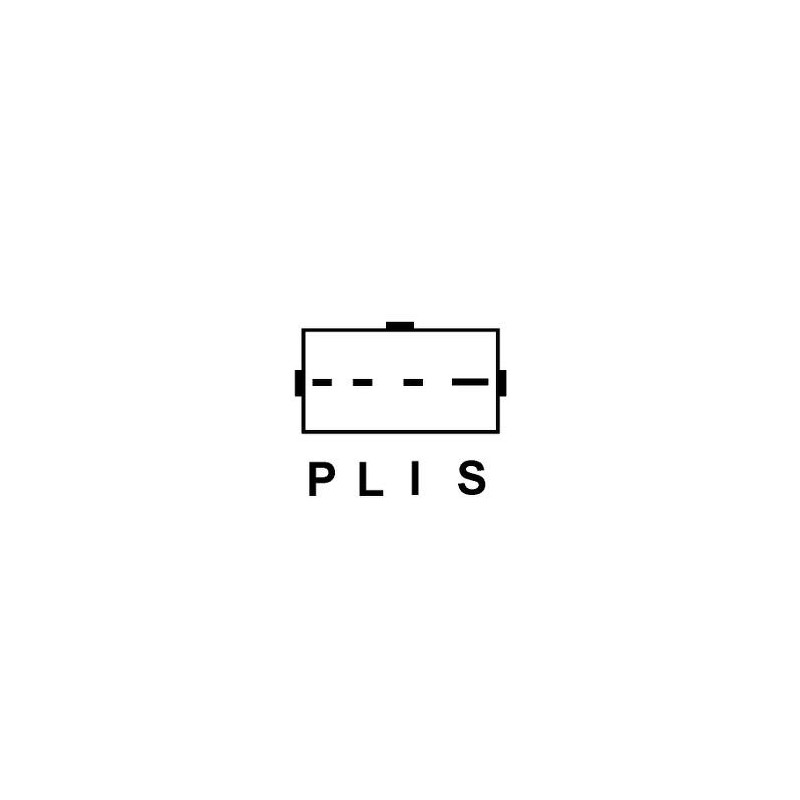

Plug no. 1 PL24
Fan Ef
Pulley Without
Remarks Replacing: CS130.
R = Total length mm 172.00
generic brand
= DELCO REMY 1101596 / 1101595 / 1101593 / 1101583 / 1101278
1101277 / 1101231 / 1102601 / 1102600 / 1101822 / 1101810 / 1101162 / 1101143
1101142 / 1101140 / 1101139 / 10663530 / 10480134 / 10480114 / 10480105 / 10480068
10480036 / 10479998 / 10479913 / 10479911 / 10479910 / 10479909 / 10479902
10479814 / 10479811 / 10463211 / 10463206 / 10463169 / 10463017 / 10463016
10463014 / 10463014
= CUMMINS 3604669rx
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
