Alternator replacing BOSCH 0124515034 / 0124515027 / 0124515024

Information:

Rotation Cr

Amp 120

Voltage 14

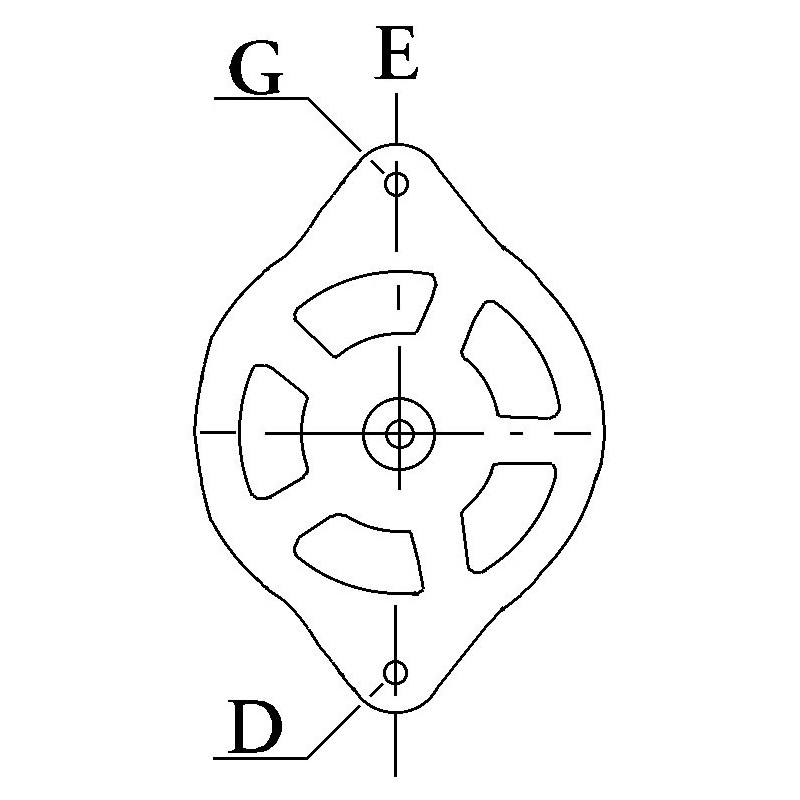

D =Bracket hole 10.30

G =Belt. adj. bracket hole 9.70

B =Width/holder arm 14.00

E =Belt. adj. brackethole pos. 50

C =Mount. bracket dist 82.00

H =Pulley dia. 56.20

A =Pulley dist. 34.25

Grooves/pulley 5

J1 =Radius 91.80

J2 =Radius 96.00

Position B + M8

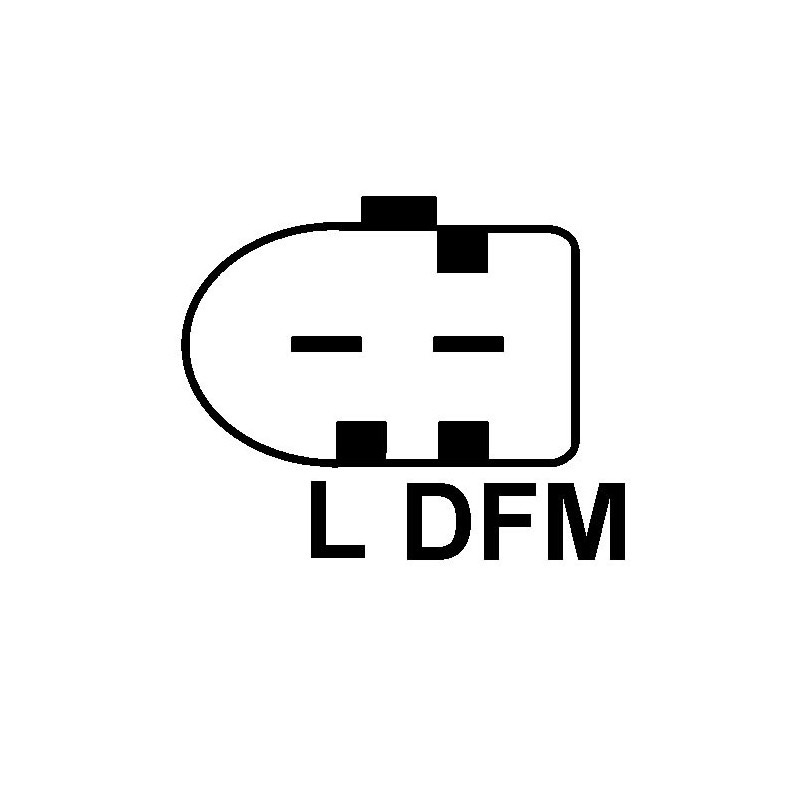

Plug no. 1 PL61

Fan If

Pulley Serpentine Pulley

R =Total length mm 181.50

brand BOSCH / Generic

= BOSCH 0124515024 / 0124515027 / 0124515034 / 0986044310

= EDR 944310

= HELLA 8EL737986-001

= LUCAS LRA01969

= VOLKSWAGEN  6B903016F / 6B903016G

= VALEO SG12B018 / 2542295 / 2542295A / 437176

                    NO CORE EXCHANGE NEEDED

                                           TWO YEARS WARRANTY
