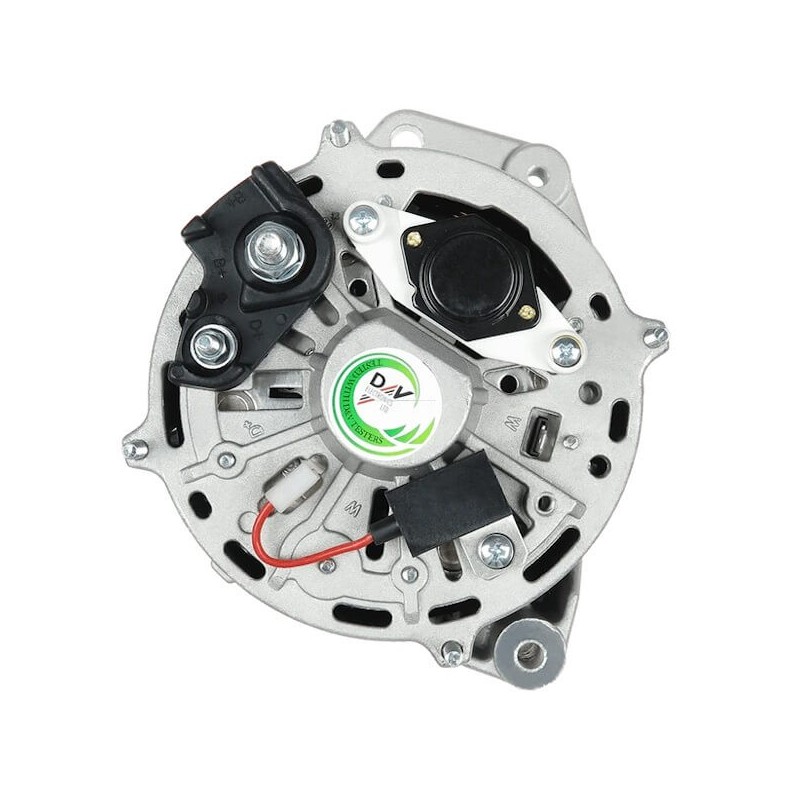

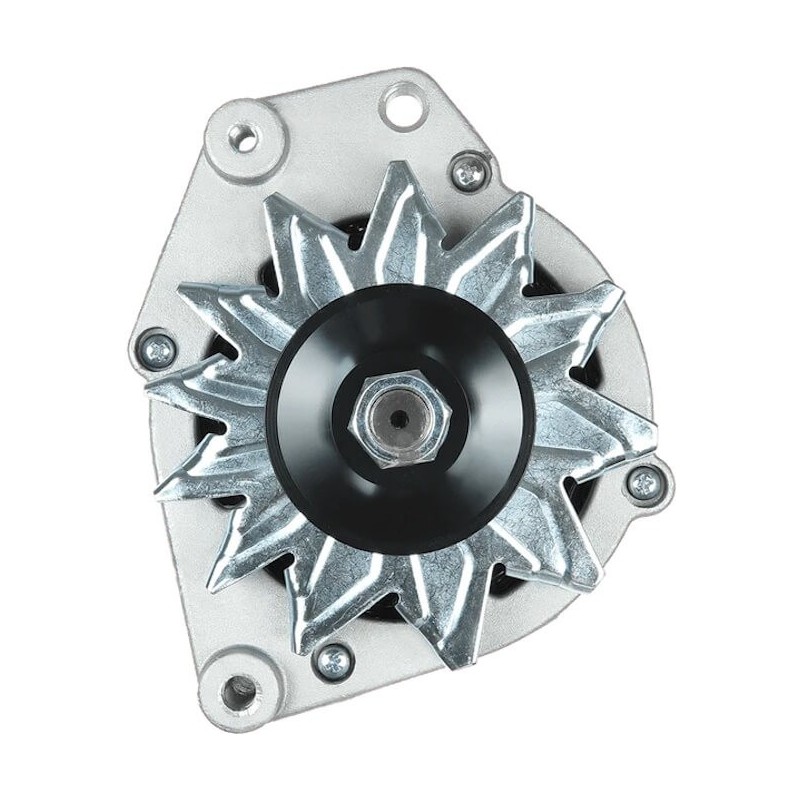

Alternator replacing 0120469601 / 0120469602 / 0120469603
Alternator replacing 0120469601 / 0120469602 / 0120469603
Alternator replacing 0120469601 / 0120469602 / 0120469603
Alternator replacing 0120469601 / 0120469602 / 0120469603
Alternator replacing 0120469601 / 0120469602 / 0120469603
Alternator replacing 0120469601 / 0120469602 / 0120469603
Previous
Next
Alternator replacing 0120469601 / 0120469602 / 0120469603
Alternator replacing 0120469601 / 0120469602 / 0120469603
Alternator replacing 0120469601 / 0120469602 / 0120469603
Alternator replacing 0120469601 / 0120469602 / 0120469603
Alternator replacing 0120469601 / 0120469602 / 0120469603
Alternator replacing 0120469601 / 0120469602 / 0120469603

Alternator replacing 0120469601 / 0120469602 / 0120469603

W112729

0120469737 Bosch
0120469739 Bosch
0120469863 Bosch
068903017PX Volkswagen
068903018B Volkswagen
068903029D Volkswagen
068903029G Volkswagen
068903029P Volkswagen
069903017AX Volkswagen
069903023D Volkswagen
069903023H Volkswagen
0986038090 Bosch ruil
0986038097



Read more
€118.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 14

Amp 90

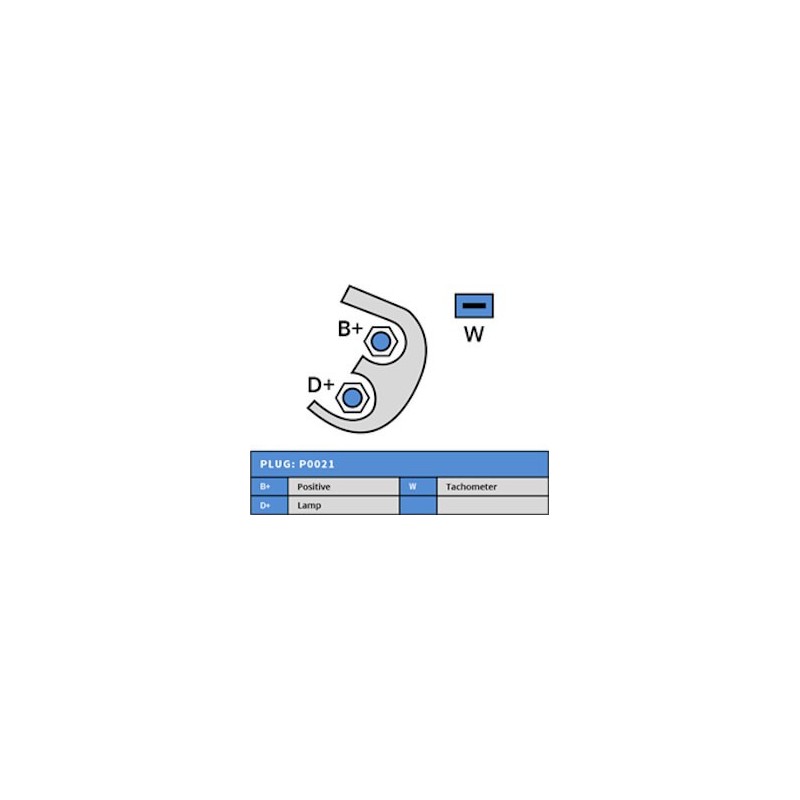

Plug type W

D = Bracket hole 8.40

G =  Belt. adj. bracket hole M8-1.25

B = Width/holder arm 55.60

E = Belt. adj. brackethole pos. 50

E = Belt. adj. brackethole pos. 55

H = Pulley dia. 75.50

A = Pulley dist. 84.00

Grooves/pulley 1

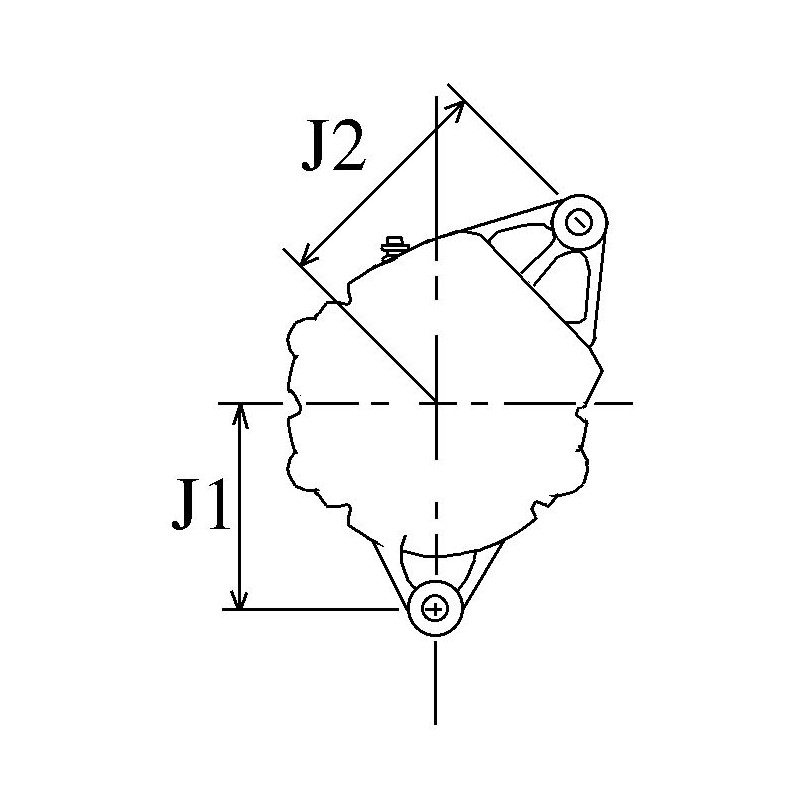

J = Radius 91.00

J = Radius 90.00

J = Radius 89.00

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

generic brand

replaing

0120469601 Bosch
0120469602 Bosch
0120469603 Bosch
0120469605 Bosch
0120469637 Bosch
0120469654 Bosch
0120469701 Bosch
0120469702 Bosch
0120469703 Bosch
0120469714 Bosch
0120469734 Bosch
0120469737 Bosch
0120469739 Bosch
0120469863 Bosch
068903017PX Volkswagen
068903018B Volkswagen
068903029D Volkswagen
068903029G Volkswagen
068903029P Volkswagen
069903017AX Volkswagen
069903023D Volkswagen
069903023H Volkswagen
0986038090 Bosch ruil
0986038097 Bosch ruil
112729 Cargo
12032730 EuroTec
12038090 EuroTec
12090266 EuroTec
14471 Lester
205013090 PSH
211113902 DRI
220105A PIC
281558 Elstock
436291 Valeo
90156144 Wilson
90156172 Wilson
9038090F Friesen
9039090F Friesen
932730 EDR
AEA1276 Auto Electro
AL33X Bosch (USA)
DRA8090 Remy
F042205188 Bosch
LRA00887 Lucas
LRA02630 Lucas
RNL3416 RNL
VLN90318 ADI
W26154 Van Heck

for

Brand Model Typ Year
AUDI 90 1.6 TD [CY] 08.1985-01.1987
AUDI 90 1.6 TD [RA] 04.1987-03.1990
AUDI 80 1.6 Diesel [JK] 09.1986-08.1991
AUDI 90 1.6 TD [SB] 04.1989-09.1991
AUDI 80 1.9 Diesel [1Y] 08.1989-08.1991
AUDI 80 1.6 TD [RA] 04.1988-03.1989
AUDI 80 1.9 TD [AAZ] 09.1991-12.1994
AUDI 80 1.6 TD [SB] 04.1989-08.1991
AUDI 200 2.1 Turbo [KG] 08.1985-01.1988
AUDI 200 2.2 Turbo [1B] 08.1988-12.1991
AUDI 200 2.2 Turbo [2B] 02.1988-12.1991
AUDI 200 2.2 Turbo Quattro [MC] 01.1985-08.1988
AUDI 100 2.0 Diesel [CN] 08.1984-11.1990
AUDI 100 2.0 TD [DE] 08.1985-02.1988
AUDI 100 2.0 TD [NC] 03.1988-11.1990
VW LT 40-55 2.4 i [1E] 07.1993-04.1996
VW LT 40-55 2.4 TD [1G] 08.1988-08.1992
VW LT 28-35 2.4 TD [ACL] 09.1992-06.1996
VW Passat 2.0 [HP] 08.1983-07.1987
VW LT 40-55 2.4 TD [ACL] 09.1992-04.1996
VW LT 40-55 2.4 TD [DV] 12.1982-08.1992
VW LT 28-35 2.4 TD [DV] 08.1983-08.1992
VW Jetta 1.6 Diesel [JP] 01.1984-05.1984
VW LT 40-55 2.4 TD 4x4 [DV] 12.1982-08.1992
VW Golf II 1.8 GTi [DX] 08.1983-12.1992
VW Jetta 1.6 TD [JR] 01.1984-05.1984
VW Passat 1.6 Diesel [JK] 08.1985-03.1988
VW Transporter 1.6 Diesel [CS] 01.1981-07.1987
VW Transporter 1.6 Diesel [CS] 08.1985-07.1987
VW Transporter 1.6 TD [JX] 08.1984-07.1992
VW LT 28-35 2.4 [DL] 08.1983-07.1984
VW Transporter 1.6 TD Syncro [JX] 03.1986-07.1992
VW Golf II 1.6 Diesel [JP] 08.1983-05.1984
VW Passat 1.6 TD [CY] 08.1985-03.1988
VW Transporter 1.7 Diesel [KY] 10.1986-07.1992
VW Golf II 1.6 TD [JR] 08.1983-05.1984
VW LT 28-35 2.4 Diesel [1S] 08.1989-07.1992
VW LT 28-35 2.4 Diesel [ACT] 08.1992-04.1996
VW LT 28-35 2.4 Diesel [DW] 08.1983-07.1992
VW Passat 1.6 [DT] 08.1983-08.1984
VW LT 28-35 2.4 i [1E] 08.1993-06.1996
VW LT 28-35 2.4 TD [1G] 08.1988-08.1992
VW LT 40-55 2.4 Diesel [1S] 08.1989-07.1992
VW LT 40-55 2.4 Diesel [ACT] 08.1992-12.1995
VW LT 40-55 2.4 Diesel [DW] 11.1984-07.1992
VW LT 40-55 2.4 Diesel 4x4 [DW] 08.1984-07.1992
