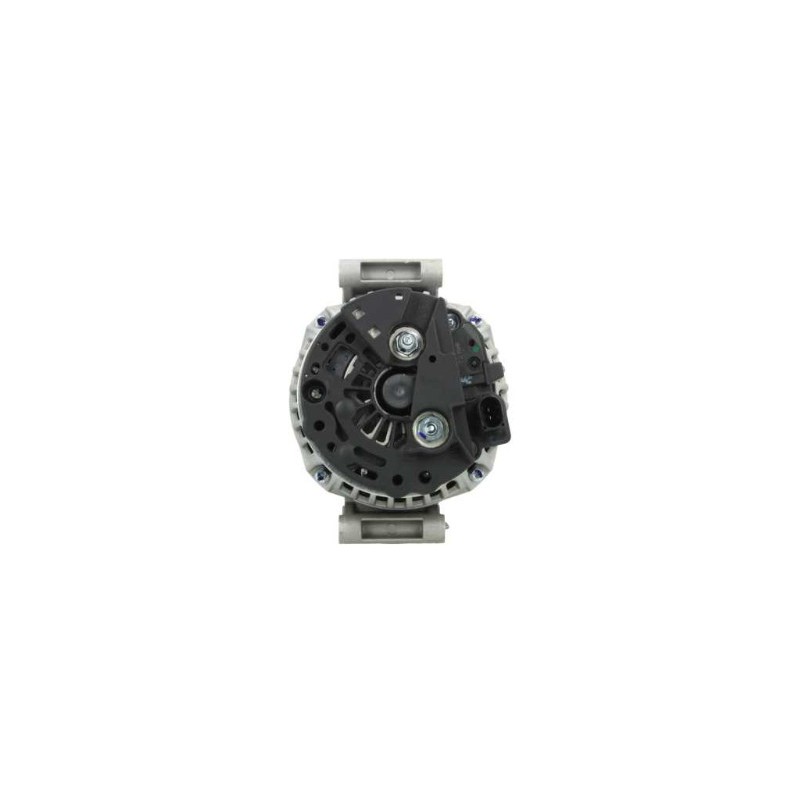

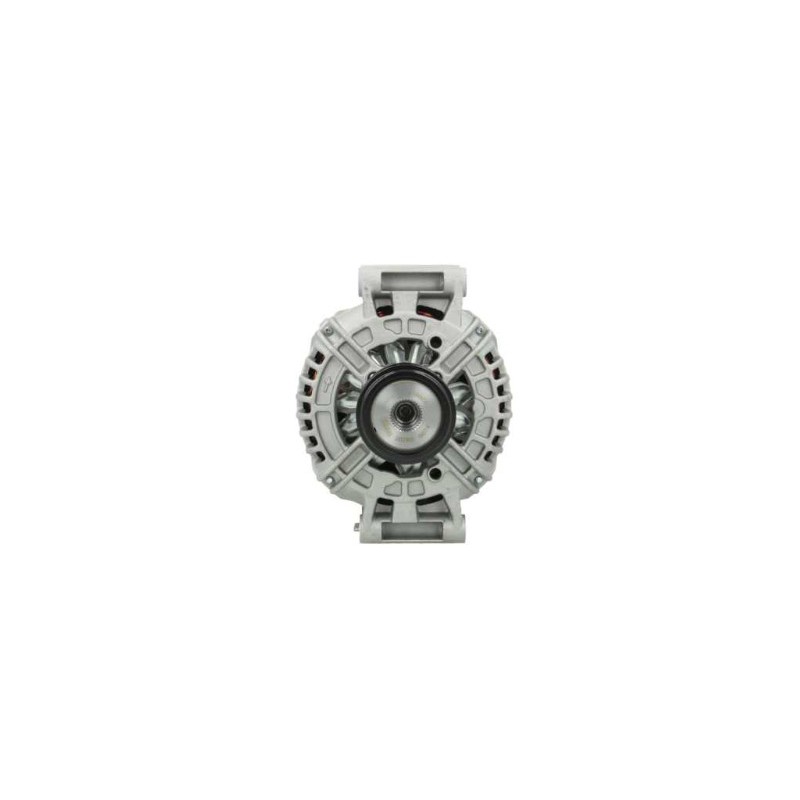

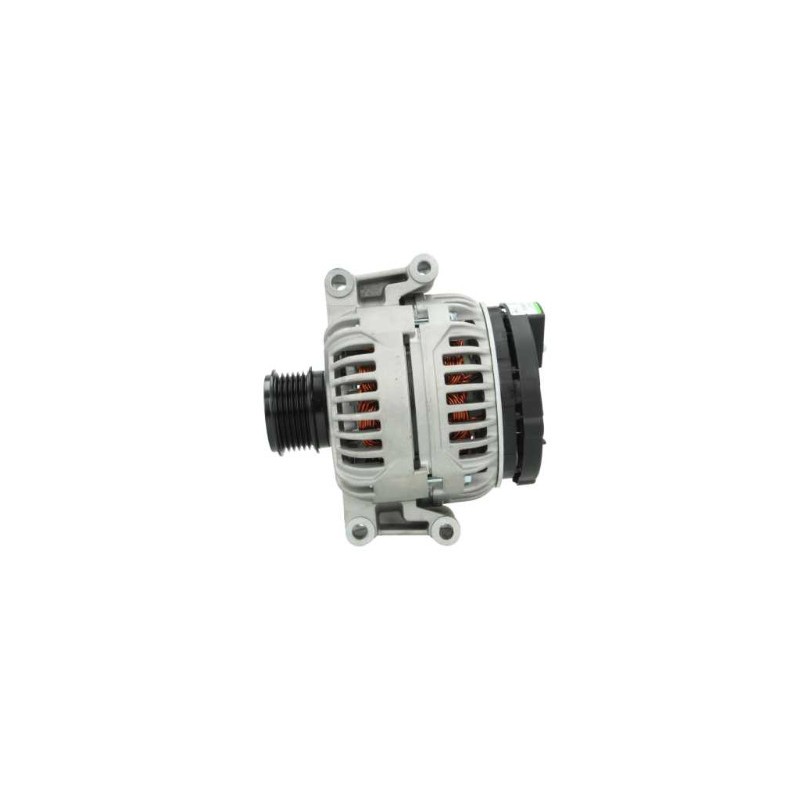

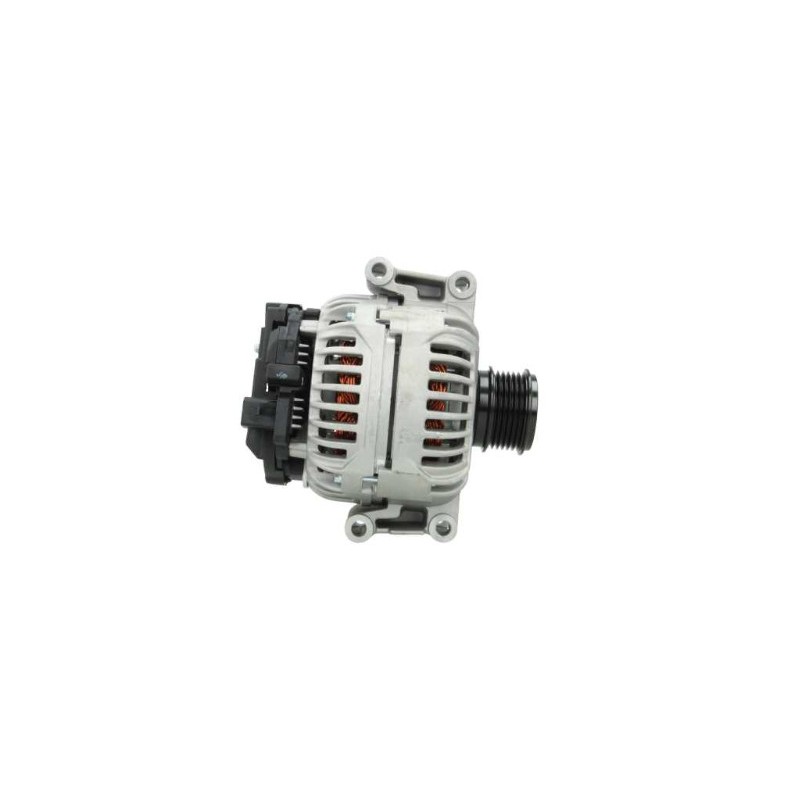

Alternator NEW replacing BOSCH 0124525113 / 0124525226 / VOLKSWAGEN 06H903016L / 06H903016LX
Alternator NEW replacing BOSCH 0124525113 / 0124525226 / VOLKSWAGEN 06H903016L / 06H903016LX
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 140 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.50 |
| G | Belt. adj. bracket hole | 10.00 |
| B | Width/holder arm | 70.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 56.50 |
| H | Pulley dia. | 56.00 |
| A | Pulley dist. | 28.00 |
| i | Grooves/pulley | 6 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL86 |
| D | Trou from fixation support 2 | 9.50 |
| G | Belt. adj. bracket hole 2 2 | 10.00 |
| Communication | LIN | |
Replacing | |
|---|---|
| 0124525113 | BOSCH |
| 0124525226 | BOSCH |
| 06H903016L | VOLKSWAGEN |
| 06H903016LX | VOLKSWAGEN |
| ca2007ir | HC-PARTS |
| 0124525113 |
| 0124525226 |
| 06H903016L |
| 06H903016LX |
| 0986081370 |
| 205545140 |
| 285855 |
| 6458SP |
| 8EL738212451 |
| 9090660F |
| 930312 |
| ALT1555sa |
| CA2007IR |
| DRA0312 |
| HCA2007IR |
| LRA03244 |
Generic brand
Mounted on :
AUDI ESSENCE : A4, A5 1.8 , A5 2.0 , Q5
| Audi | A4 | 1.8 TFSI | 01/08 |
| Audi | A4 | 2.0 TFSI | 01/08 |
| Audi | A5 | 2.0 TFSI | 01/08 |
| Audi | A5 | 1.8 TFSI | 01/09 |
| Audi | Q5 | 2.0 TFSI | 01/08 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
