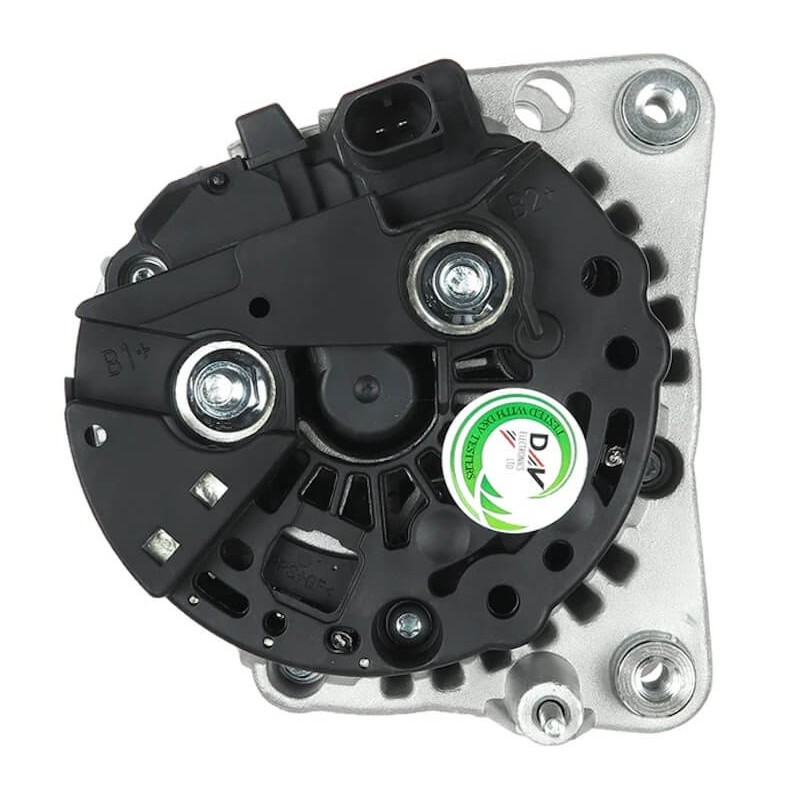

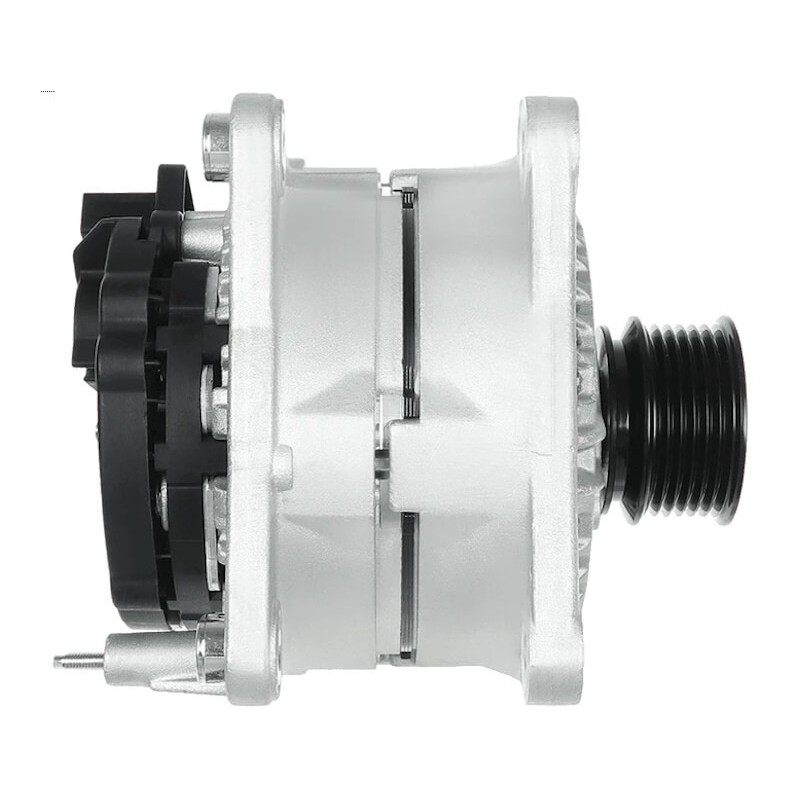

Alternator replacing 012402A2LB / 0124325137 / 0124325003

Information:

Voltage 14

Amp 90

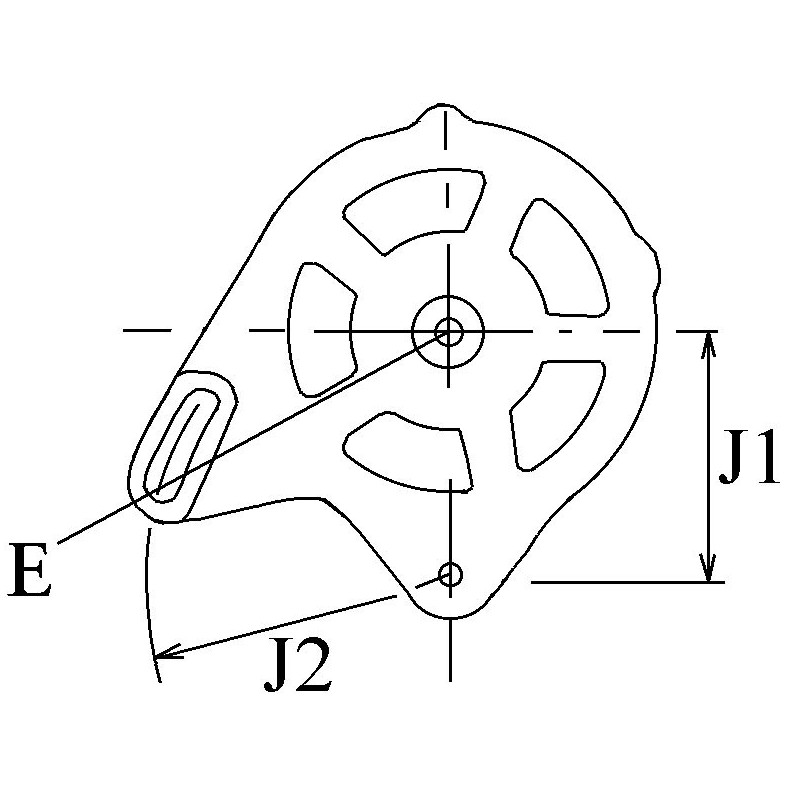

D = Bracket hole 8.60

G = Belt. adj. bracket hole 8.60

B = Width/holder arm 14.00

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 61.00

H = Pulley dia. 56.00

A = Pulley dist. 39.60

Grooves/pulley 6

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

Plug no. 1 PL61

Fan If

Pulley Serpentine Pulley

Belt. adj. bracket hole (M8)
