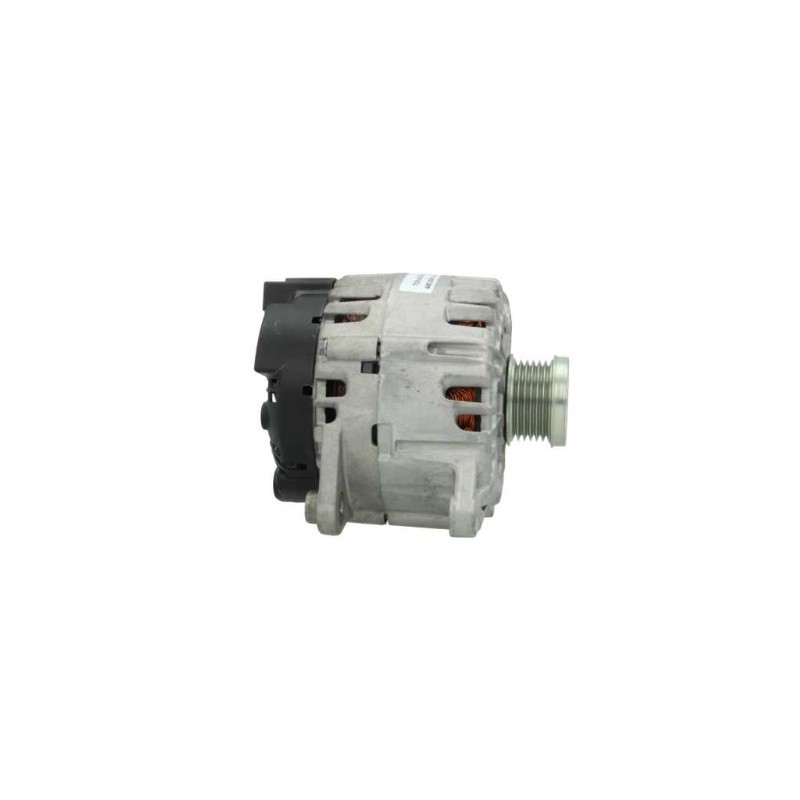

Alternator replacing VALEO TG14C049 / VAG 04E903023H / 04E903023K

Display all pictures

Alternator replacing VALEO TG14C049 / VAG 04E903023H / 04E903023K

Reference: W115916

Condition: New product

2 Item Items

Alternator NEW replacing VALEO TG14C049 / 439821 / 440475

DRA1376 / LRA03703

VOLKSWAGEN 04E903023H / 04E903023K

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

More info

More info

Information:

Electrical Information
Voltage		14
Amp		140

Physical Information
D	Bracket hole	8.50
G	Belt. adj. bracket hole	13.50
B	Width/holder arm	13.50
E	Belt. adj. brackethole pos.	45
C	Mount. bracket dist	61.00
H	Pulley dia.	49.30
A	Pulley dist.	30.00
i	Grooves/pulley	6
j	Radius	90.00
j	Radius 2	90.00
k	Position B +	M8
n	Rotation	CW

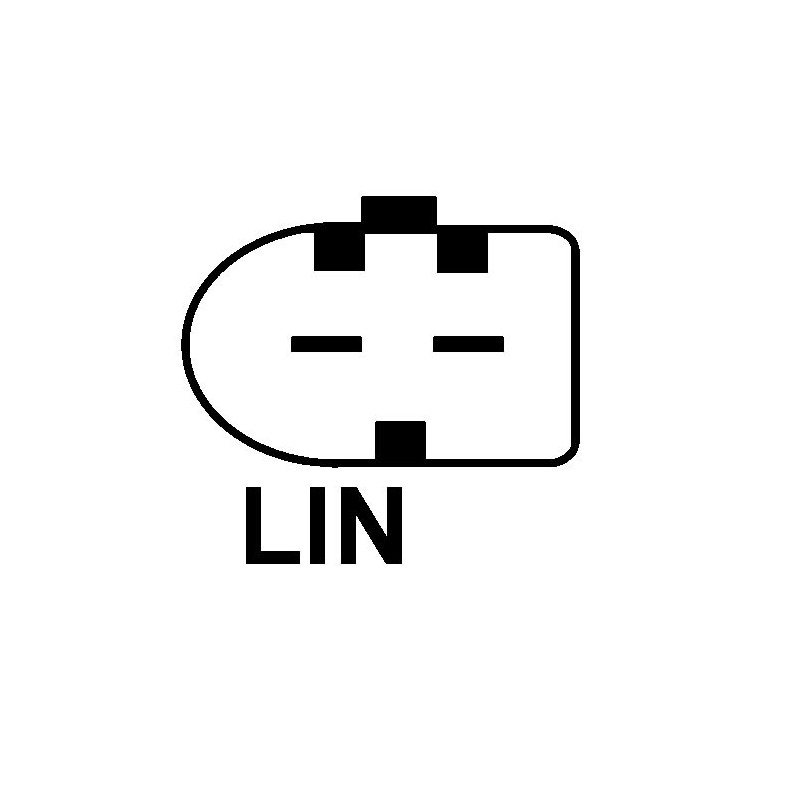

o	Plug no. 1	PL166
R	Total length mm	195.00

Generic Brand

= Reference :

04E903023K
04E903023KX
286764
305906140
439821
440475
614609
9090771F
931376
ALT00531sa
DRA1376
KTR611812280
LRA03703
TG14C049

Mounted on :

SEAT IBIZA / LEON
VOLKSWAGEN GOLF / POLO
AUDI A1 / A3 / Q3
SKODA Octavia

VOLKSWAGEN	Golf VII	1.4 TSi	/	/
VOLKSWAGEN	Golf VII	1.6 TSi	/	/

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
