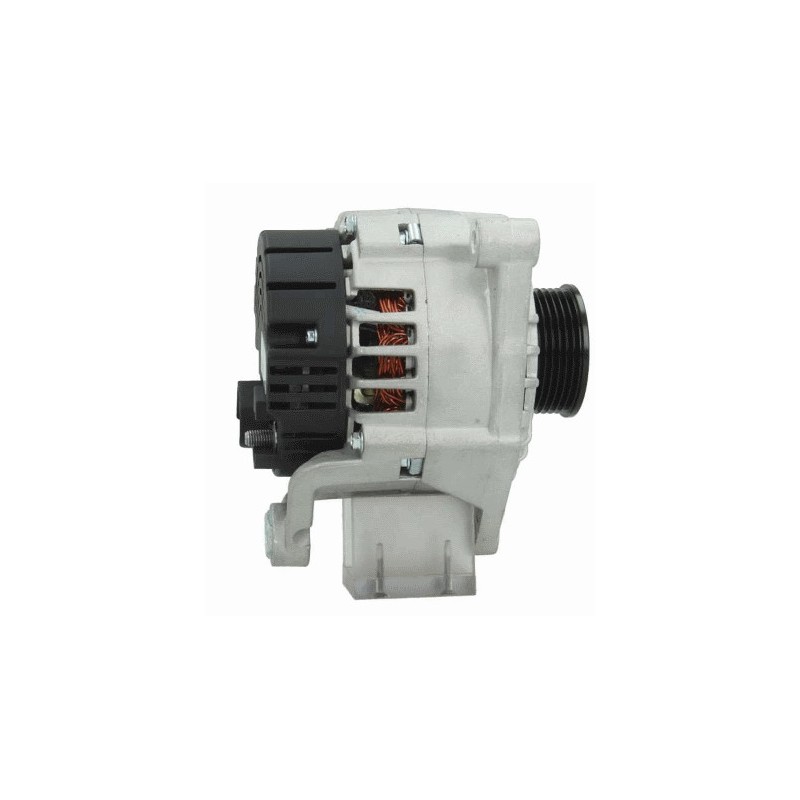

Alternator replacing 0124615007 / 0124525087 / 0124525008
Alternator for A4 / SKODA superb / Passat
VALEO TG15C043 / TG15C011 / SG14B013 / SG14B012
A14VI36 / 2542587 / 2542587B / / 2542497 / 2542497A / 2542497B / 2542497C / 2542402 / 2542402B
0986044470 / DRA4156 / LRA01975
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14
Amp 140
D = Bracket hole 10.30
G = Belt. adj. bracket hole 9.00
B = Width/holder arm 14.10
E = Belt. adj. brackethole pos. 50
C = Mount. bracket dist 82.00
H = Pulley dia. 64.50
A = Pulley dist. 30.00
Grooves/pulley 6
J = Radius 92.00
J = Radius 96.00
Position B + M8
Rotation Cr

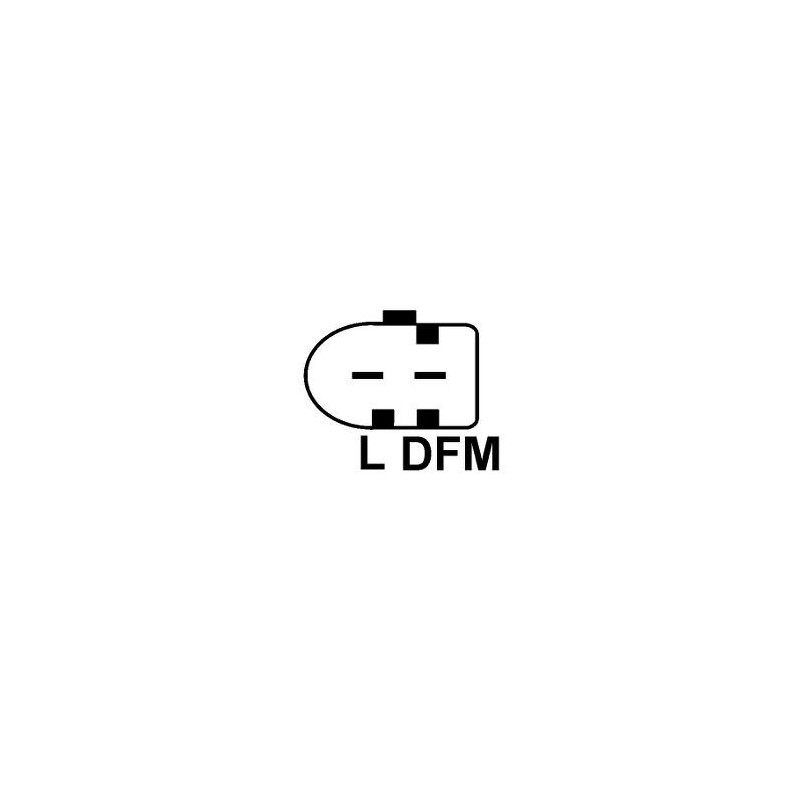

Plug no. 1 PL61
Fan If
Pulley Serpentine Pulley
R = Total length mm 181.00
generic brand
= BOSCH 0124615007 / 0124525087 / 0124525008
= ISKRA AAN5792 / 11.203.921
= VALEO TG15C043 / TG15C011 / SG14B013 / SG14B012
A14VI36 / 2542587 / 2542587B / / 2542497 / 2542497A / 2542497B / 2542497C / 2542402 / 2542402B
= VOLKSWAGEN 06c903016b / 078903016 / 078903016AB / 078903016AC / 078903016ca / 078903016r / 078903016s 4Z7903015
fits:
| Brand | Model | Tipo | Year |
| AUDI | A4 2.4 | [AMM] | 09.2001-12.2004 |
| AUDI | A4 2.4 | [AMM] | 04.2002-12.2005 |
| AUDI | A4 2.4 | [BDV] | 09.2001-12.2004 |
| AUDI | A4 2.4 | [BDV] | 04.2002-12.2005 |
| AUDI | A4 2.5 TDi | [AYM] | 08.2001-07.2002 |
| AUDI | A4 2.5 TDi | [AYM] | 09.2001-07.2002 |
| AUDI | A4 2.5 TDi | [BCZ] | 06.2003-12.2005 |
| AUDI | A4 2.5 TDi | [BDG] | 08.2002-12.2005 |
| AUDI | A4 2.5 TDi | [BDG] | 11.2004-05.2006 |
| AUDI | A4 2.5 TDi | [BFC] | 07.2002-12.2004 |
| AUDI | A4 2.5 TDi | [BFC] | 08.2002-12.2005 |
| AUDI | A4 2.5 TDi Quattro | [AKE] | 11.2000-12.2004 |
| AUDI | A4 2.5 TDi Quattro | [AKE] | 09.2001-12.2004 |
| AUDI | A4 2.5 TDi Quattro | [BAU] | 01/09/01 |
| AUDI | A4 2.5 TDi Quattro | [BDH] | 01/09/01 |
| AUDI | A4 3.0 | [ASN] | 11.2000-12.2004 |
| AUDI | A4 3.0 | [ASN] | 09.2001-12.2004 |
| AUDI | A4 3.0 | [ASN] | 04.2002-12.2005 |
| AUDI | A4 3.0 | [AVK] | 11.2000-12.2004 |
| AUDI | A4 3.0 | [BBJ] | 04.2001-12.2004 |
| AUDI | A4 3.0 Quattro | [ASN] | 11.2000-12.2004 |
| AUDI | A4 3.0 Quattro | [ASN] | 05.2003-12.2005 |
| AUDI | A4 3.0 Quattro | [AVK] | 09.2001-12.2004 |
| AUDI | A4 3.0 Quattro | [BBJ] | 04.2001-12.2004 |
| AUDI | A6 2.4 | [BDV] | 08.2001-01.2005 |
| AUDI | A6 2.4 Quattro | [BDV] | 08.2001-01.2005 |
| AUDI | A6 2.5 TDi | [AKE] | 02.2000-01.2005 |
| AUDI | A6 2.5 TDi | [AYM] | 08.2001-01.2005 |
| AUDI | A6 2.5 TDi | [BCZ] | 11.2002-01.2005 |
| AUDI | A6 2.5 TDi | [BDG] | 07.2002-01.2005 |
| AUDI | A6 2.5 TDi | [BDG] | 11.2002-01.2005 |
| AUDI | A6 2.5 TDi | [BFC] | 07.2002-01.2005 |
| AUDI | A6 2.5 TDi Quattro | [AKE] | 02.2000-01.2005 |
| AUDI | A6 3.0 | [ASN] | 08.2001-01.2005 |
| AUDI | A6 3.0 Quattro | [ASN] | 08.2001-01.2005 |
| AUDI | A6 3.0 TDi Quattro | [BMK] | 01/05/04 |
| AUDI | Allroad 2.5 TDi Quattro | [BCZ] | 05.2003-08.2005 |
| AUDI | Allroad 2.7 Turbo Quattro | [ARE] | 05.2000-08.2006 |
| AUDI | Allroad 2.7 Turbo Quattro | [BES] | 07.2002-08.2005 |
| SKODA | Superb 2.5 TDi | [BDG] | 01/06/03 |
| VW | Passat 2.5 TDi | [BDG] | 05.2003-05.2005 |
| VW | Passat 2.5 TDi 4-Motion | [BAU] | 01.2003-05.2005 |
| VW | Passat 2.5 TDi 4-Motion | [BDH] | 01.2003-05.2005 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Data sheet
| Poulie | serpentine |
| Connecteur régulateur | PL6 |
| Ampérage | 140 |
| Voltage | 14 |
