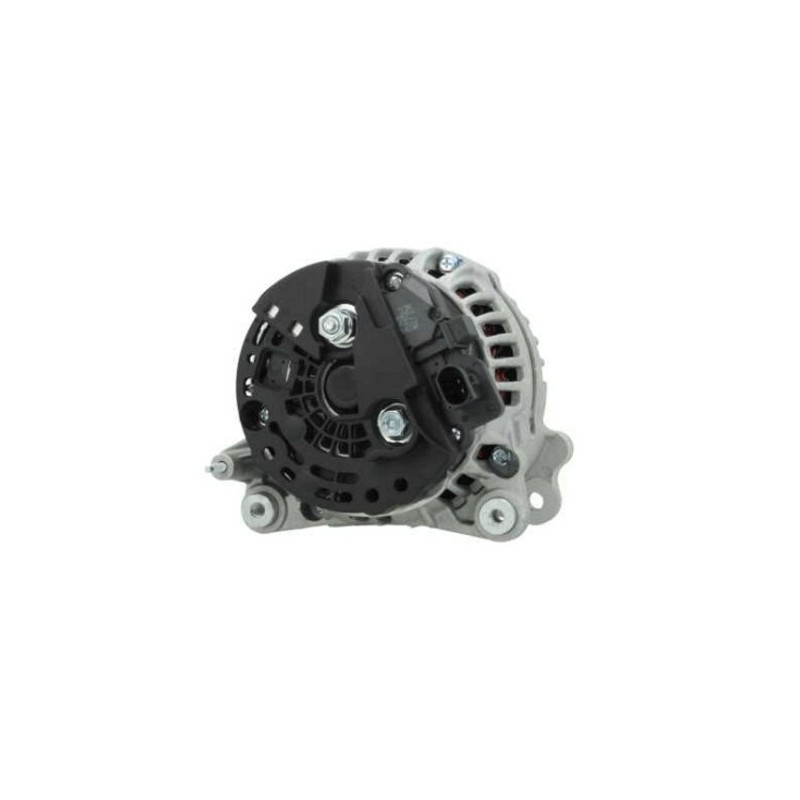

Alternator replacing BOSCH 0124615040 / 0124615038 / 0124615017

Information:

Rotation Cr

Amp 150

Voltage 14

D =  Bracket hole 8.20

G =  Belt. adj. bracket hole 8.20

B = Width/holder arm 14.35

E =  Belt. adj. brackethole pos. 45

C =  Mount. bracket dist 59.00

H =  Pulley dia. 55.90

A =  Pulley dist. 39.00

Grooves/pulley 6

J =  Radius 90.00

J =  Radius 2 90.00

Position B + M8

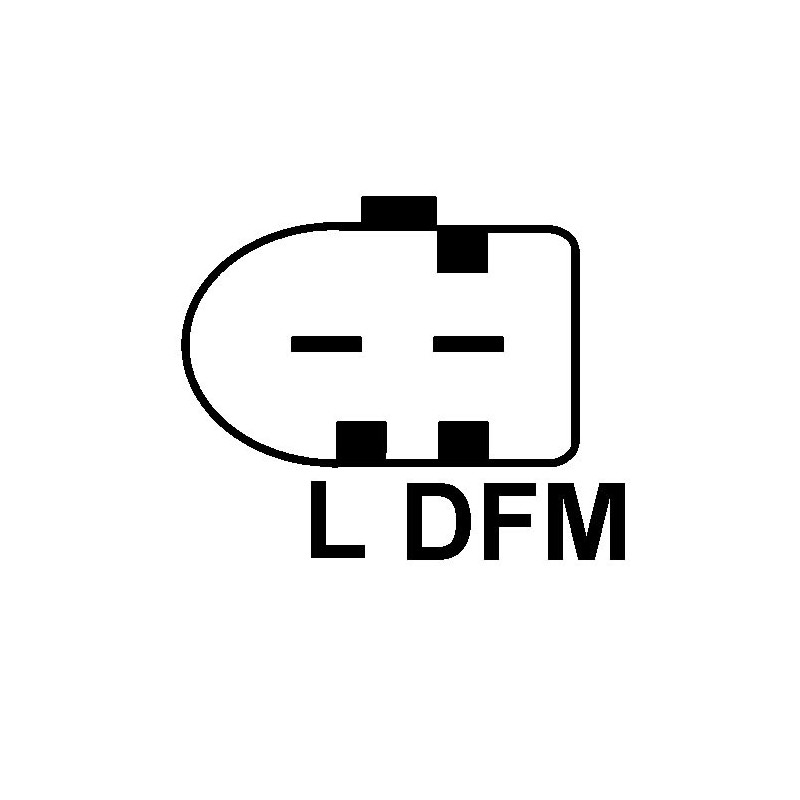

Plug no. 1 PL61

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

Tipo regulator Ir

Belt. adj. bracket hole 2 2 (M8)

R =  Total length mm 201.50

Tipo borne L-DFM

generic brand

                NO CORE EXCHANGE NEEDED

                                    TWO YEARS WARRANTY
