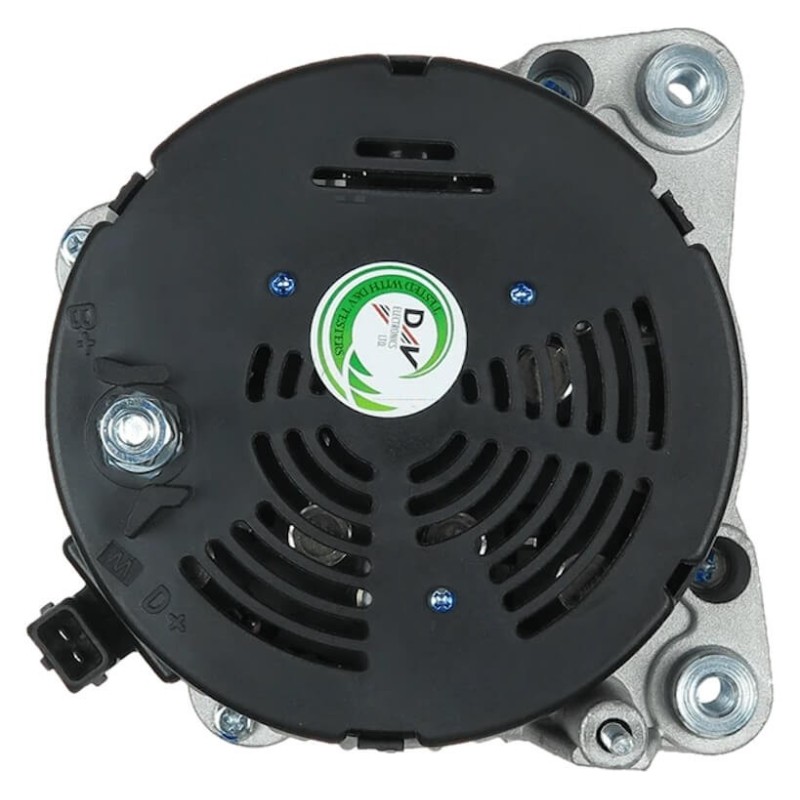

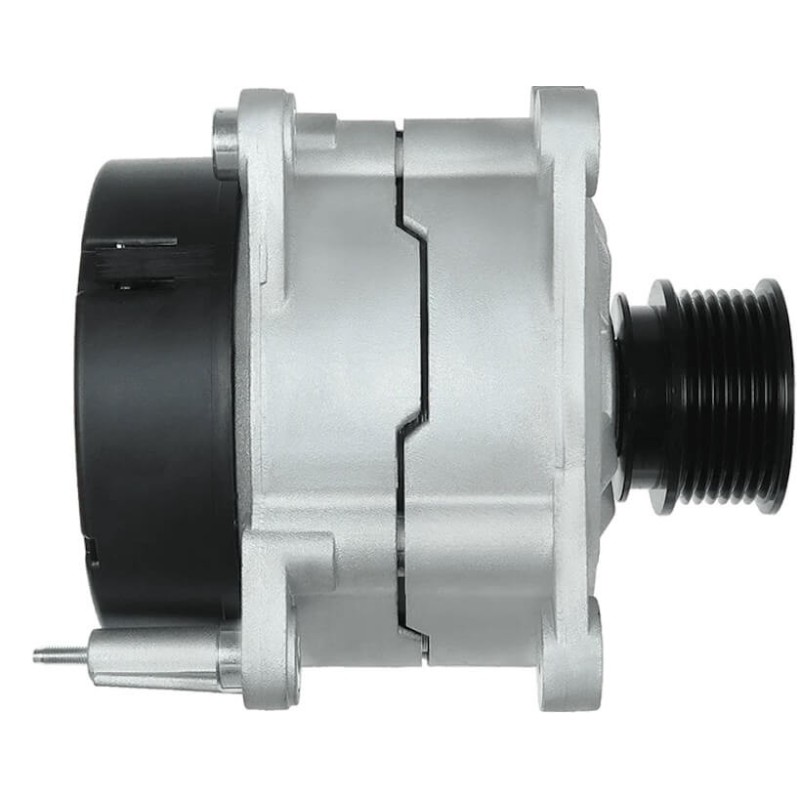

Alternator replacing BOSCH 0123520002 / MERCEDES-BENZ 010-154-21-02 / FORD 95VW-10300-SA

Display all pictures

Alternator replacing BOSCH 0123520002 / MERCEDES-BENZ 010-154-21-02 / FORD 95VW-10300-SA

Reference: w1135n

Condition: New product

1 Item Items

Alternator NEW replacing :

- BOSCH 0123520002 / 0986039080

- DAF 1516421R / FORD 95VW-10300-SA

- MERCEDES-BENZ 010-154-21-02 / A010-154-21-02

- AUDI / VOLKSWAGEN 016 002 016 / 021-903-025C / 021-903-025CX / 028-903-025C / 028-903-025CX / 07M 903 015

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

More info

More info

Information:

Electrical Information
Voltage		14
Amp		150

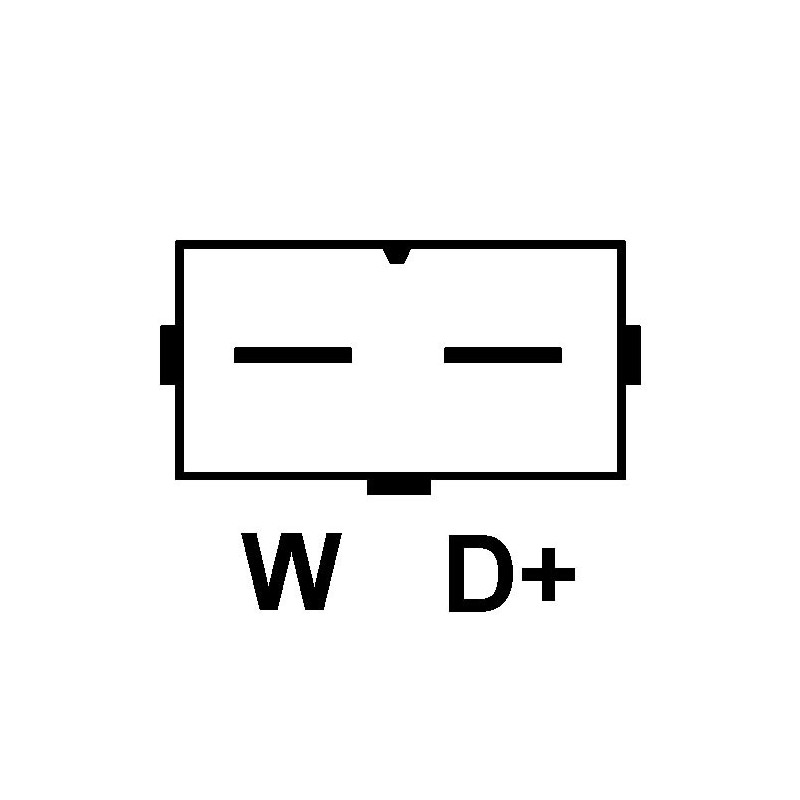

Plug type		W

Physical Information
D	Bracket hole	8.50
G	Belt. adj. bracket hole	8.50
B	Width/holder arm	14.15
E	Belt. adj. brackethole pos.	45
C	Mount. bracket dist	61.00
H	Pulley dia.	61.00
A	Pulley dist.	42.85
i	Grooves/pulley	7
j	Radius	89.00
j	Radius 2	89.00
k	Position B +	M8
n	Rotation	Cr
o	Plug no. 1	PL23
Q	Tipo prise W	Plug

generic brand

replacing

0101542102	Mercedes-Benz
010154210280	Mercedes-Benz
011254	Da Silva
0123520002	Bosch
0123520002SEL	+line
016002016	Volkswagen AG
021903025C	Volkswagen AG
021903025CX	Volkswagen AG
028903025C	Volkswagen AG
028903025CX	Volkswagen AG
063731143010	Magneti Marelli
06B903018LV	Volkswagen AG
06B903018LX	Volkswagen AG
07M903015	Volkswagen AG
0986039080	Bosch Exchange
0986039083	Bosch Exchange
0986039087	Bosch Exchange
1012459	Remy
10443223	Alanko
11135N	WAI
11135R	WAI
113885	Cargo
118991	Farcom
12039080	EuroTec
12201098	AES
1225400BO	WAI old
1516421R	DAF
2010495	Sando
2111801502	DRI
2205037	PIC
283509	Elstock
301143RI	DAS
305531150	PSH
4067	CEVAM
437386	Valeo
441290	Logistik
443223	Alanko
5591SP	Spidan
566641	Valeo
56683	EAI
7361233	Ford
89212730	PowerMax
8EL737163001	Hella
90156466	Wilson
9039080	Friesen
9039080F	Friesen
943355008010	Magneti Marelli
944390390800	Magneti Marelli
95VW10300SA	Ford
95VWSA	Ford
A0101542102	Mercedes-Benz
A010154210280	Mercedes-Benz
A0747	AS-PL
A0747S	AS-PL
A132234	Short code
A150456	Short code
A157061	Short code
AA5513	Auto Charge
ABO1458	Quasar
AEC1143	Auto Electro
AL01666	TMI
AL0714X	Bosch (USA)
ALT10252	Wood Auto
AVE1558	Everkraft
AVE1558D	Everkraft
BOS0986039080	Wood Auto
CA1143	HC-Parts
CA1143IR	HC-Parts
CAL10495	Casco
CGB83509	Ainde
DMA7822	DriveTec
DRA9080	Remy
DS011254	Da Silva
HCA1143IR	HC-Parts
IR7838	Protech
L39080	ATL
L611528	BTS Turbo
LRA02739	Lucas
LRA2739	Lucas
MQA1143	Magneti Marelli
MRA39080	Magneti Marelli
R95VW10300SA	Ford
SA783	Sovereign
VLN901143	ADI
WOOALT10252	Wood Auto

Mounted on :

Brand	Model	Typ	Year
FORD	Galaxy 2.8 i V6	[AAA]	11.1995-04.2000
FORD	Galaxy 2.8 i V6	[AMY]	11.1995-04.2000
FORD	Galaxy 2.8 i V6 4x4	[AAA]	04.1996-04.2000
FORD	Galaxy 2.8 i V6 4x4	[AMY]	04.1996-04.2000
MERCEDES BENZ	V 280 2.8	(638)[M104.900]	08.1997-07.2003
SEAT	Alhambra 2.8 V6	[AUE]	06.2000-03.2010
SEAT	Alhambra 2.8 V6	[AYL]	06.2000-03.2010
VW	Caravelle 2.8 VR 6	[AES]	11.1995-04.2000
VW	Caravelle 2.8 VR6	[AMV]	04.2000-04.2003
VW	Caravelle 2.8 VR6	[AXK]	04.2000-04.2003
VW	Sharan 2.8 V6 24V	[AYL]	04.2000-03.2010
VW	Sharan 2.8 V6 24V 4-Motion	[AYL]	04.2000-03.2010
VW	Sharan 2.8 VR6	[AAA]	09.1995-04.2000
VW	Sharan 2.8 VR6	[AMY]	09.1995-04.2000
VW	Transporter 2.8 VR6	[AES]	11.1995-04.2000
VW	Transporter 2.8 VR6	[AES]	05.1996-05.2000
VW	Sharan 2.8 VR6 Syncro	[AAA]	11.1996-04.2000
VW	Transporter 2.8 VR6	[AMV]	04.2000-04.2003
VW	Transporter 2.8 VR6	[AMV]	06.2000-04.2003
VW	Transporter 2.8 VR6	[AXK]	04.2000-04.2003
VW	Transporter 2.8 VR6	[AXK]	06.2000-04.2003
VW	Sharan 2.8 VR6 Syncro	[AMY]	11.1996-04.2000
