Alternator replacing BOSCH 0124325091 / 0124325096 / 0124325129

Display all pictures

Alternator replacing BOSCH 0124325091 / 0124325096 / 0124325129

Reference: W115621

Condition: New product

2 Item Items

Alternator NEW replacing BOSCH 0124325091 / 0124325096 / 0124325129

= VOLKSWAGEN 06F903023B / 06F903023G

= VALEO TG11C016 / 437469 / 439500

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

More info

More info

Electrical Information
Voltage		14
Amp		110

Physical Information
D	Bracket hole	8.50
G	Belt. adj. bracket hole	8.50
B	Width/holder arm	14.00
E	Belt. adj. brackethole pos.	45
C	Mount. bracket dist	60.50
H	Pulley dia.	56.00
A	Pulley dist.	39.00
i	Grooves/pulley	6
j	Radius	90.00
j	Radius 2	90.00
k	Position B +	M8
n	Rotation	CW

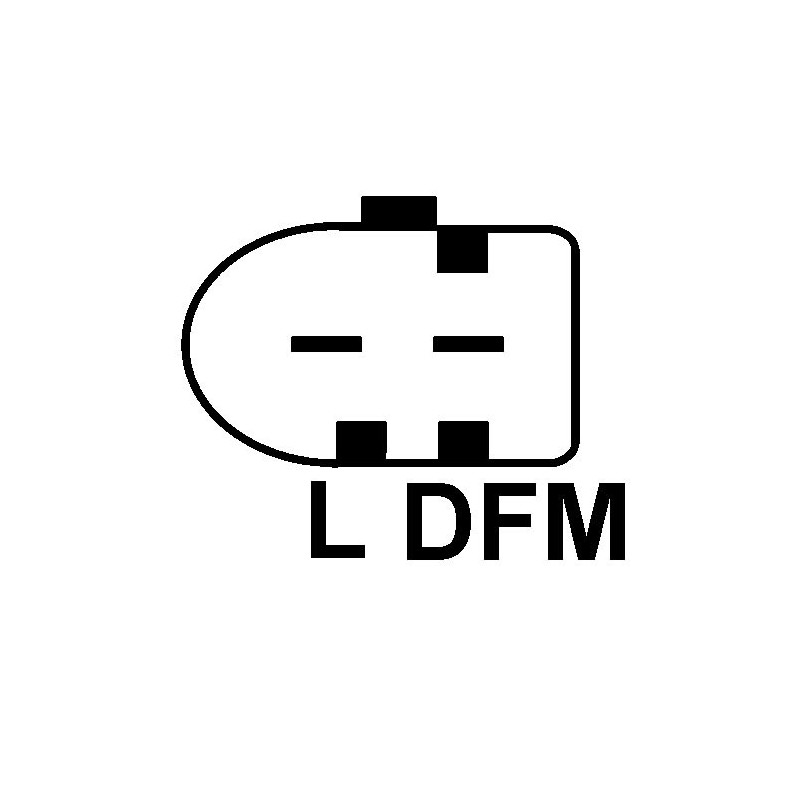

o	Plug no. 1	PL61
R	Total length mm	186.00

Replacing
0124325091	BOSCH
0124325096	BOSCH
0124325129	BOSCH
06F903023B	VOLKSWAGEN
06F903023G	VOLKSWAGEN
ca1818ir	HC-PARTS
TG11C016	VALEO

generic brand

0124325091
0124325096
0124325129
06F903023B
06F903023G
0986045330
2205539
23356
2542649
284861
305542110
437469
439500
542649
6247SP
90156603
9045330F
945330
CA1818IR
DRB5330
HCA1818IR
LRA02357
TG11C016

Mounted on :

Audi - Europe (2003-2013)
SEAT - Europe (2004-2012)
SKODA - Europe (2004-2013)
VOLKSWAGEN (2006-2009)
VOLKSWAGEN - Europe (2003-2013)

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
