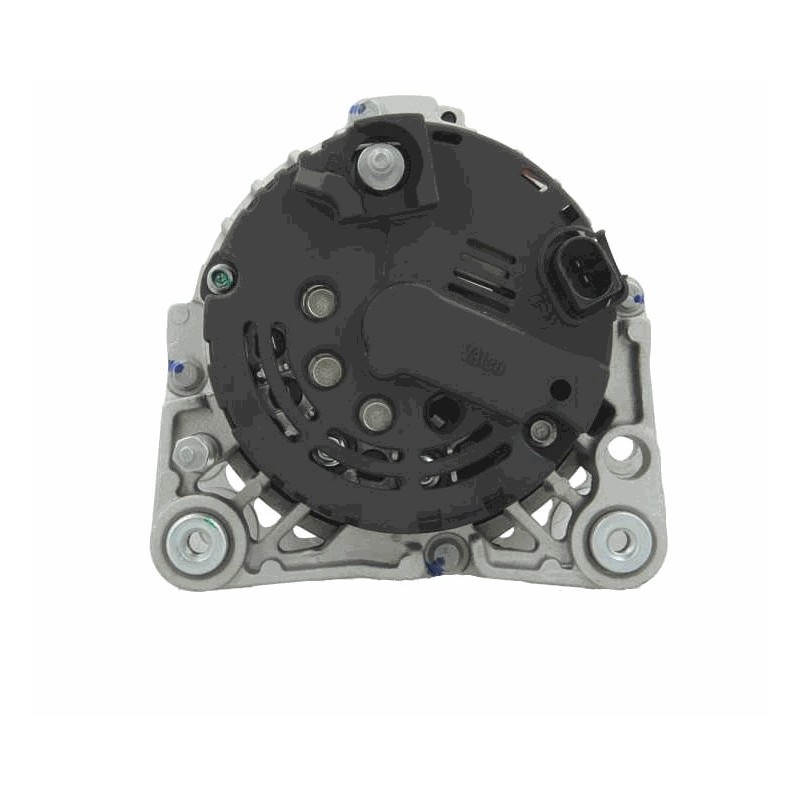

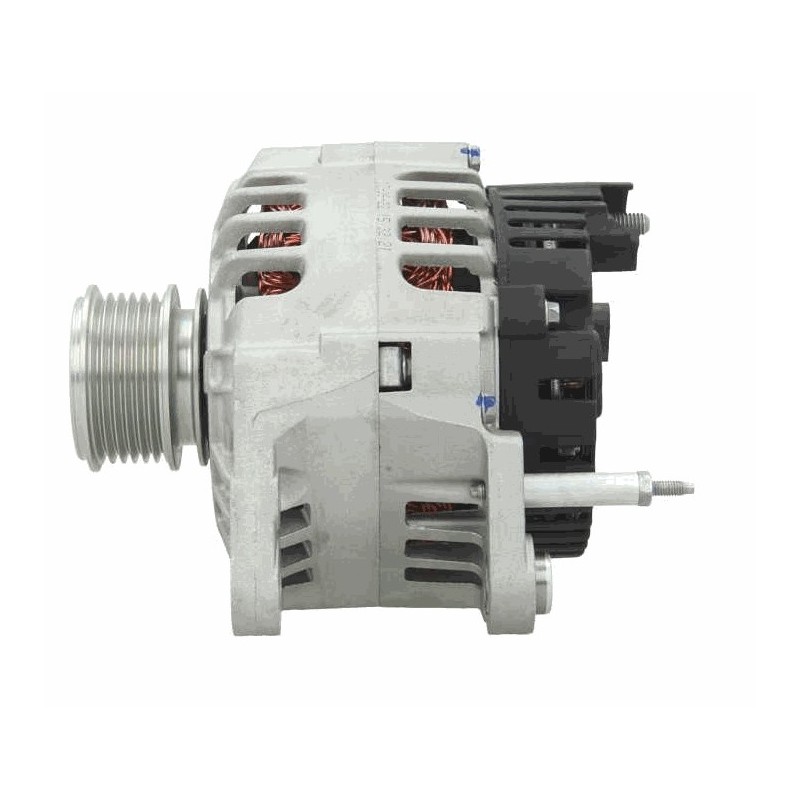

Alternator NEW VALEO SG9B078 / SG9B015

Information:

Voltage 14

Amp 90

D = Bracket hole 8.60

G =Belt. adj. bracket hole 8.6

B =Width/holder arm 14.00

E = Belt. adj. brackethole pos.  45

C=Mount. bracket dist 61.00

H =Pulley dia. 56.00

A=Pulley dist. 44.50

J1 = Radius 90.00

J2 = Radius 90.00

Position B +M8

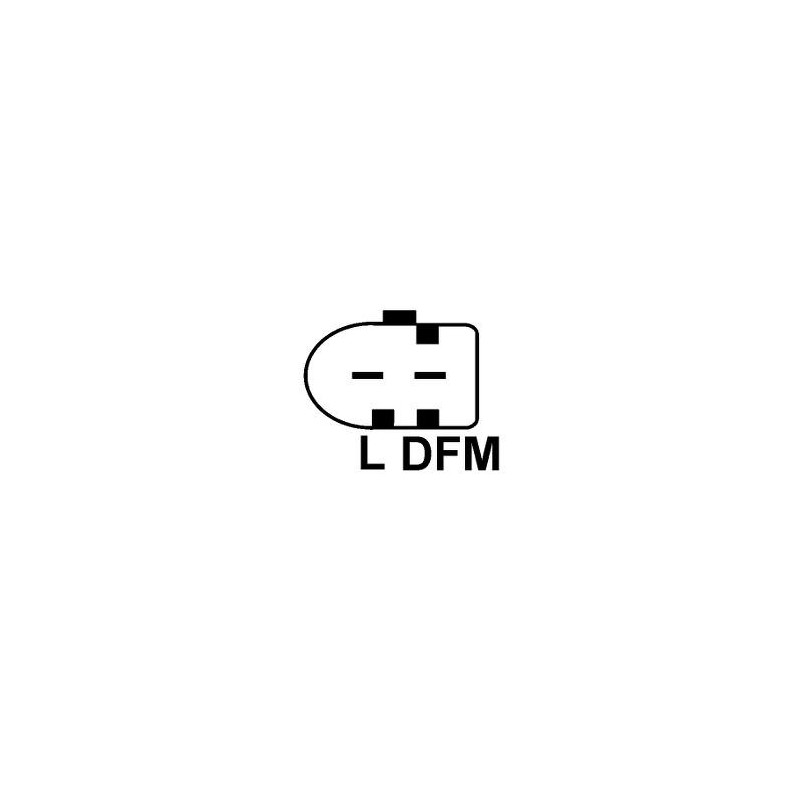

Plug no. 1 PL61

Fan If

R =Total length mm 170,00

= BOSCH 0124325149 / 0124325131 / 0124325101 / 0124325088 / 0124325073 / 0986041490 / 0986041491 / 0986042700

0986047250 / 0124325012 / 0124325001

= DELCO REMY DRB1490

= MAGNETON 9517483 / 9517413

= MAGNETI MARELLI 63304079

= ISKRA AAK5543 / 11.203.312

= Elstock 28-2985 / 27-0832

= FORD 98VW10300CA / 98VN10300CA / 3M2110300AA / 1100711

= HELLA 8EL737644-001 / 8EL737-644-001 / 8EL011360-051

8EL730132-001

= LUCAS LRB00474 / LRA01068

= RENAULT 7701477709 / 7701473735

= SKODA 38903023L / 038903023R / 38903023R / 038903023L

= VALEO 2542948 / 2542245 / 437400 /

=VOLKSWAGEN 038903018p / 038903018PX / 038903023l / 038903023r / 038903024A / 038903024d / 038903024E / 045903023 / 045903023se / 074903026

                                    TWO YEARS WARRANTY

        NO CORE EXCHANGE NEEDED
