| 10465013 | Remy |
| 10465014 | Remy |
| 10465053 | Remy |
| 10465054 | Remy |
| 10465130 | Delco |
| 10465168 | Remy |
| 10497165 | Delco |
| 111256 | Cargo |
| 1113267 | Remy |
| 1113270 | Remy |
| 1113296 | Remy |
| 19136221 | Remy |
| 1998401 | Remy |

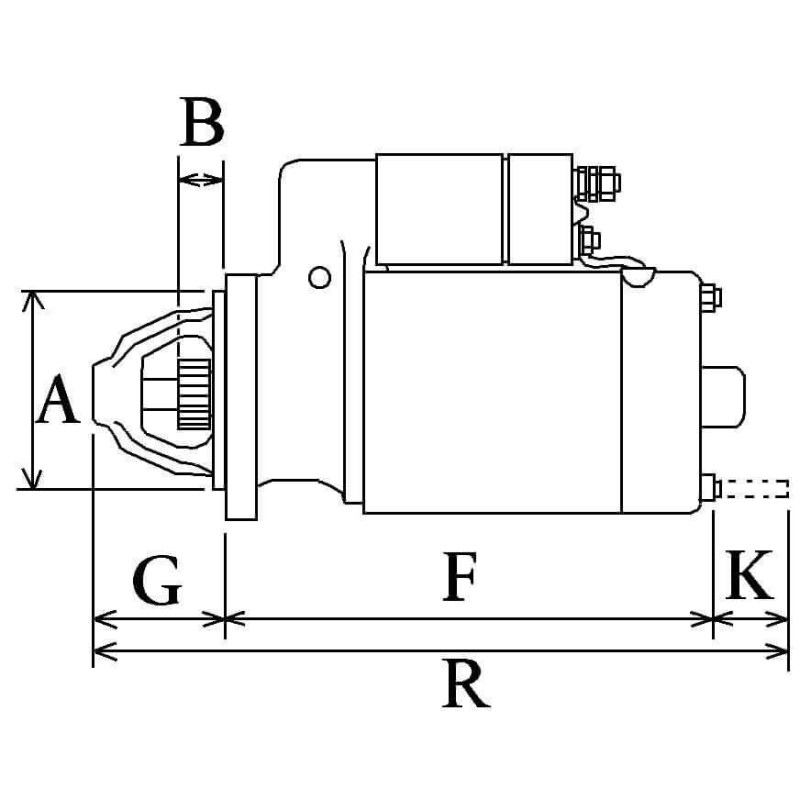

Physical information |
||
|---|---|---|
| H | No./teeth | 10 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 82.50 |
| I | B+ | M10 |
| No./mount. holes | 2 (0) | |
| B | Drive dist. | 9.00 |
| E | Mount. holes | 10.50 |
| E | Mount. hole 2 | 10.50 |
| F | Dist./back | 280.00 |
| G | Dist./front | 56.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 84.60 |
| R | Total length mm | 337.50 |
Electrical information |
||
|---|---|---|
| Voltage | 12 | |
| Kw | 2.5 | |
generic brand
DELCO REMY 10465014, 10465054, 10465168, 1109219, 1109563, 1113267, 1113270, 1113296, 1113589, 19136221, 1998442
GM 10465014, 10465054, 1109563, 1113589, 1998442
Mounted on :
CHEVROLET (1982-2002)
GMC (1982-2002)
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
Original and adaptable
No return of the old
Amex,CB,Visa,MasterCard in 3D Secure and PayPal
France and International
