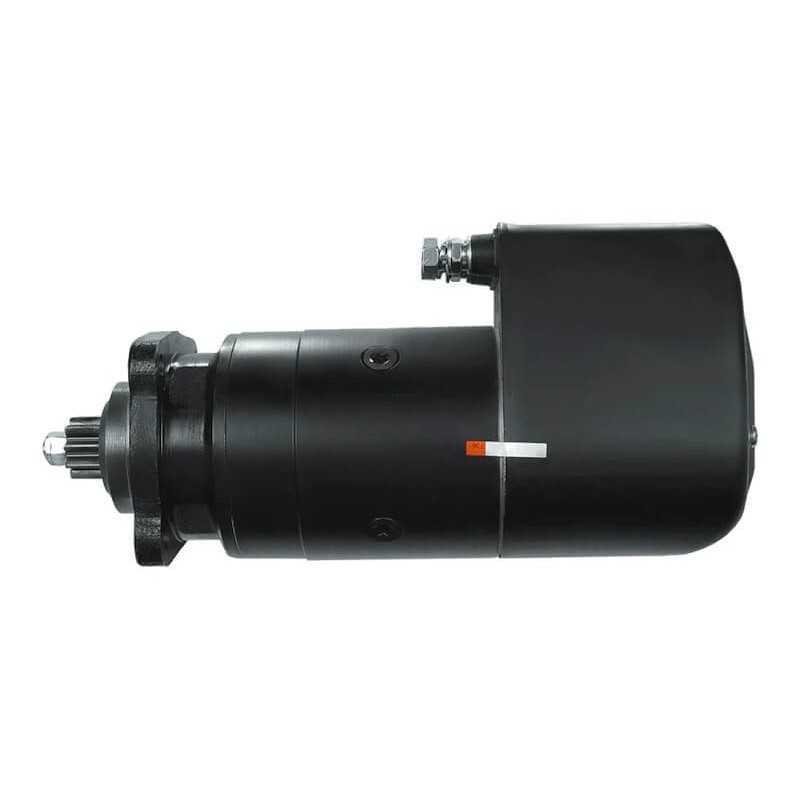

Starter replacing BOSCH BNG4/12CR222 / 0001418004 / 0001418003

Information :

Voltage 12

KW 3.0

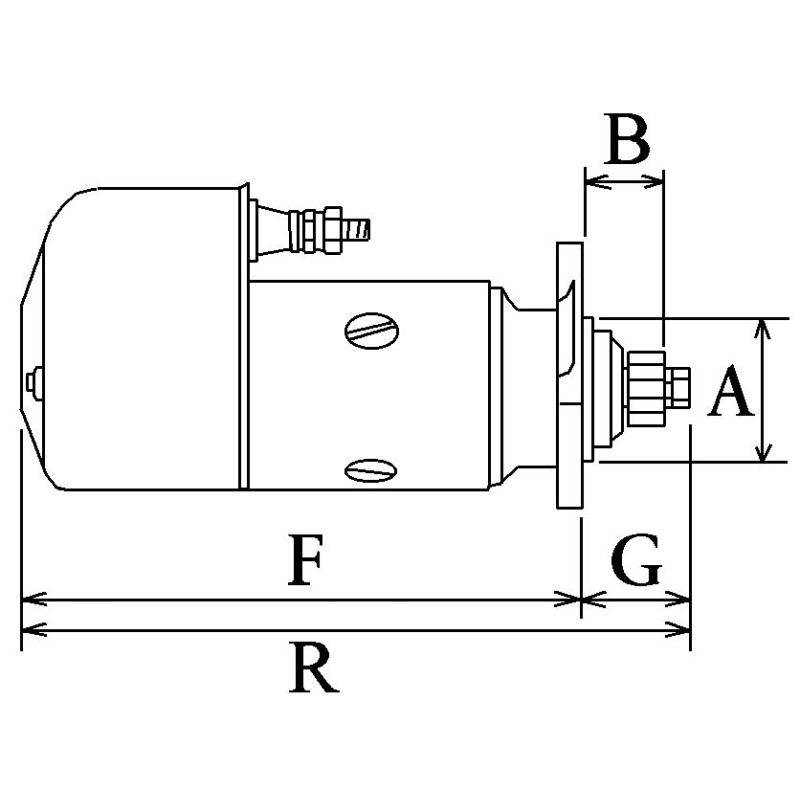

A = Mount flange 89.00

B = Drive distance 48.00

F = Distance / Back 324.00

G = Distance / Front 62.50

H = Nbr of teeth 9

B+ M10

B- M10

Gear type Dd

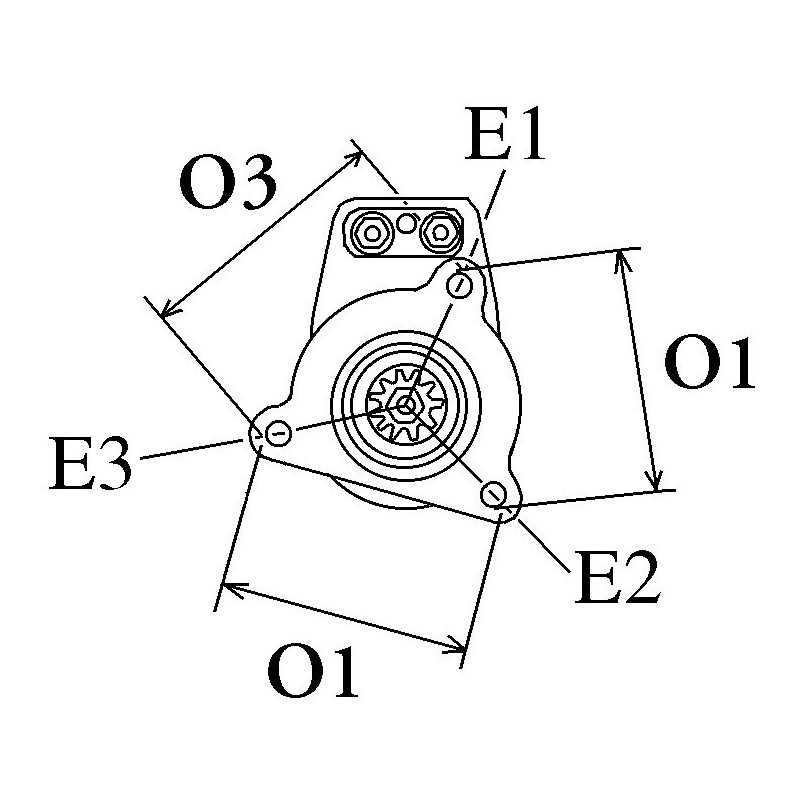

O = Distance mm 90.00

O = Distance 2 90.00

O = Distance 3 127.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 386.50

= BOSCH BNG4/12CR222 / 0001418004 / 0001418003 / 0001413010 / 0001413007

0001401068 / 0001401052 / 0001401028 / 0001401014 / 0001401013 / 0001401012

= ISKRA AZK5511 / AZK5457 / AZK5449 / AZK5192 / AZK5112

 11.139.108 / 11.139.098 / 11.139.033 / 11.130.142

= MAGNETI MARELLI MT38RA / MT38R / MT68M

= DELCO REMY 19024566 / 19024565

= KHD 01304445 / 1304445

= Efel 03109 / 07940 / 22802

= MAN 51.26201-7008 / 51.26201-9008

= VOLVO 240524 / 240847 / 6643669 / 7240524

                                             NO CORE EXCHANGE NEEDED

                                                              TWO YEARS WARRANTY
